Tube & Link Security Shutter
Verified by manufacturer 9 days ago
Steel
Steel
See through security roller shutter.
Application

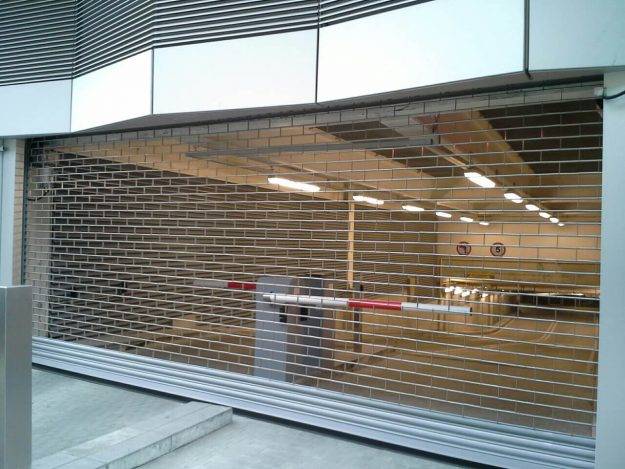

Shop fronts, kiosks or car parks where vision or ventilation is important.
Description

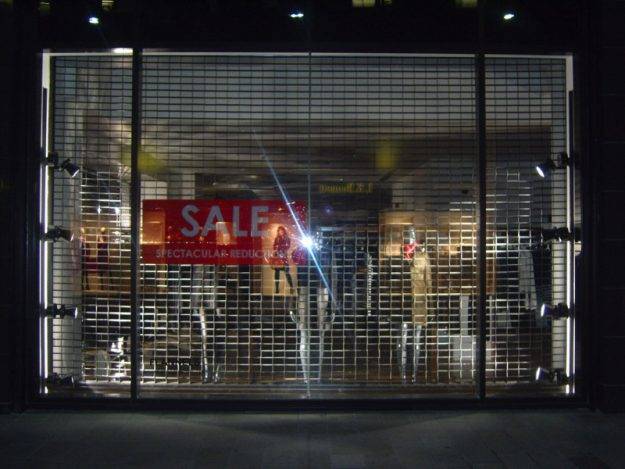

See through security roller shutter for medium security commercial sites where see-through vision is a priority. The Tube and Link Grille offers high visibility and can be used internally behind glass for shop displays, or as a standalone security barrier. It can span up to 12m in width and an area up to 72 m²depending on material and motor used. Available with aluminium or steel guides and housing system. Group, remote and mobile phone activation is available.
Features and benefits:
- Galvanized steel (as standard), brick bond or inline patterns.
- 75% transparency.
General information
Color | White Other Black Grey |
Finish | Powder-coated |
Material | Aluminium Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/612 Roller grilles L20/60 Doors |
Product range |
Specification data - Roller grilles
Opening sizes | 6000 x 4100 mm. |
Arrangement | Vertical, external face fix.Vertical, internal face fix.Vertical, reveal fix. |
Grille curtain | |
Material | Grille lattice: Standard arrangement, utilizing 13 mm diameter aluminium tubes enclosing 8 mm steel rods. Vertical lattice links create 56 mm high openings (lower/ higher available on request), enabling 75% transparency. Bottom slat: Extruded aluminium with a EPDM rubber weather seal. |
Finish and colour | Anodized.Mill.Polyester powder coated, BS.Guidance for specification option: Insert colour requirement. Polyester powder coated, RAL.Guidance for specification option: Insert colour requirement. Brown.Guidance for specification option: Bottom slat White.Guidance for specification option: Bottom slat |
Frame and guides | |
Material | Aluminium. |
Colour | Brown.Guidance for specification option: Standard colour. White.Guidance for specification option: Standard colour. BS.Guidance for specification option: Insert colour requirement. RAL.Guidance for specification option: Insert colour requirement. |
Operation | |
Mode | Gfa Three Phase Outboard Motor with safety brake and chain manual override.Guidance for specification option: As standard. NRG Electric Single Phase (Tubular Motor) with safety brake.Guidance for specification option: Appropriate to comply with legislation. |
Control | Rocker switch, external key switch and push button. |
Accessories | None.Crank handle.Manual override facility. |
Guide channels | Steel. Guidance for specification option: 65 mm deep. |
Enclosure | Galvanized steel. |
Dimensions | 1800 mm. Guidance for specification option: Box size 250 mm². 2659 mm. Guidance for specification option: Box size 305 mm². 2700 mm. Guidance for specification option: Box size 300 mm². 4145 mm. Guidance for specification option: Box size 355 mm². 4150 mm. Guidance for specification option: Box size 360 mm². |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium Steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 DWG | - | 1 |
 IFC | - | 1 |
Literature
Tube and Link Security Shutter Datasheet
