TVS INSu Barrier Mat - Sound Barrier
Verified by manufacturer 13 days ago
Constructionline Gold
Certificate type
ISO 9001 Quality Management
Certificate type
CHAS
Certificate type

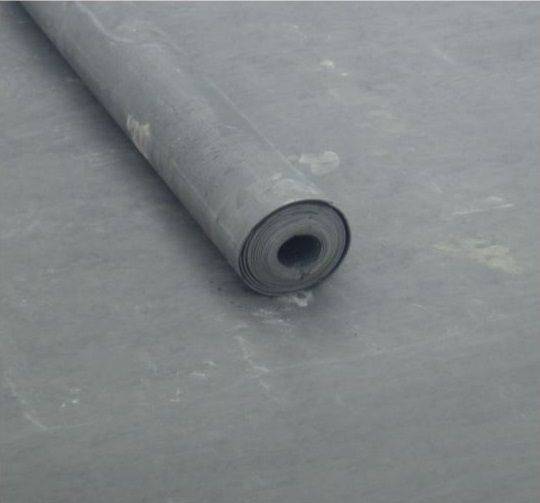

A 100% recyclable, flexible, vinyl sound barrier mat.
Application
- Can be used as a noise barrier in floors and walls to upgrade the airborne levels of noise, particularly at low frequency levels.
- Used for enclosing noise sources.
- Can be draped around equipment, suspended between equipment and quiet areas, or lagged to the equipment casing.
Description
A 100% recyclable, flexible, vinyl sound barrier mat with naturally occurring minerals. The product is free of lead, unrefined aromatic oils and bitumen. For use where high levels of acoustic performance in buildings are required.
Technical characteristics:
- Hardness: 95 Shore A.
- Available in 2Kg/m2, 5Kg/m2, 7Kg/m2 & 10Kg/m2.
- Density: 2200Kg/m3.
- Tensile strength: 2.6 MPa.
- Strain at break: 30%.
- Stress at peak: 1.3N/mm2.
- Flammability: FMVSS 302 self-extinguishing.
- Operating temperature: -20°C to +95°C (Short exposure at extremes).
Features and benefits:
- Good acoustic properties, particularly in the low frequency range.
- Cost effective noise control at the source.
- Suitable for both new build and refurbishment projects.
- Easy to cut and install on site.
- 100% recyclable material.
General information
Color | Black |
Material | Vinyl |
Length | 2000 mm 4000 mm |
Width | 1200 mm 1250 mm |
Height | 0.9 mm 2.27 mm 3.18 mm 4.55 mm |
Uniclass | |
CAWS | K11/275 Acoustic separating floor system |
Specification data - Resilient layer insulation
Thickness | 2 mm.Guidance for specification option: BM050; Weight: 5 kg/m². 3 mm.Guidance for specification option: BM070; Weight: 7.5 kg/m². 4 mm.Guidance for specification option: BM0100; Weight: 10 kg/m². |
Sound insulation rating | Sound reduction index (SRI): 22–28 dB, dependent on variant specified. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
Constructionline Gold
Constructionline Gold
ISO 9001 Quality Management
ISO 9001 Quality
CHAS
CHAS
Literature

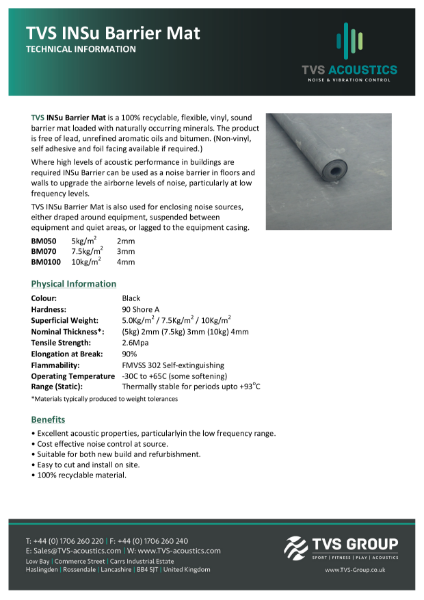

TVS INSu Barrier Mat
