Concealed metal hook on ceiling tile system.
Used for large spaces where there is a need for frequent access to the ceiling void. Suitable application environments:

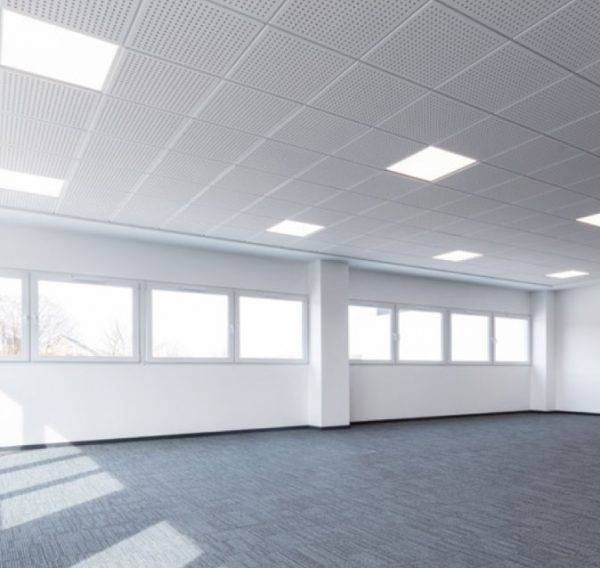

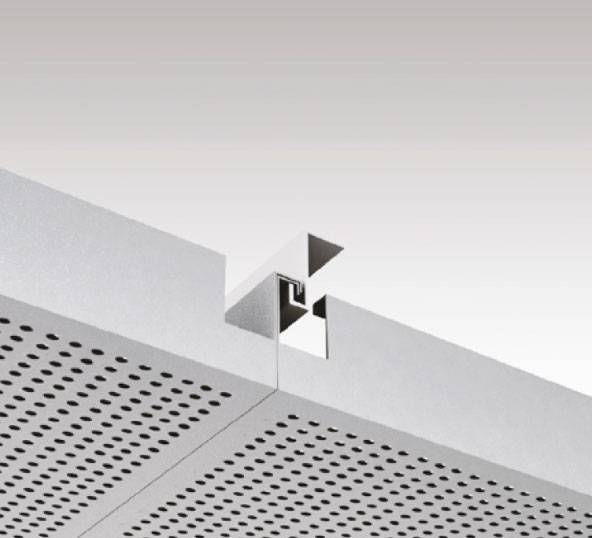

TVS Metal Hook-on System is used for large spaces where there is a need for frequent access to the ceiling void (e.g. corridors). It is a concealed system and panels are fully demountable with the help of a hooked grid profile suspending the aluminium or galvanised steel panels.
Features and benefits:
System components:
Color | Silver |
Finish | Galvanized |
Material | Aluminium Steel |
Shape | Square |
Length | 600 mm |
Width | 600 mm |
Height | Bespoke |
Uniclass | |
CAWS | K40/265 Infill units K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system |
Ceiling support | Hook-on profile.Guidance for specification option:
|
Ceiling units | Metal infill units. |
Barriers in ceiling void | |
Acoustic barriers | Acoustic fleece. |
Grid system | Concealed. |
Material | 0.5–0.7 mm Aluminium. Galvanized steel. Manufacturer guidancePanel material. |
Perforation | Fully perforated. |
Panel size | 600 x 600 mm. |
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | Turkey |
