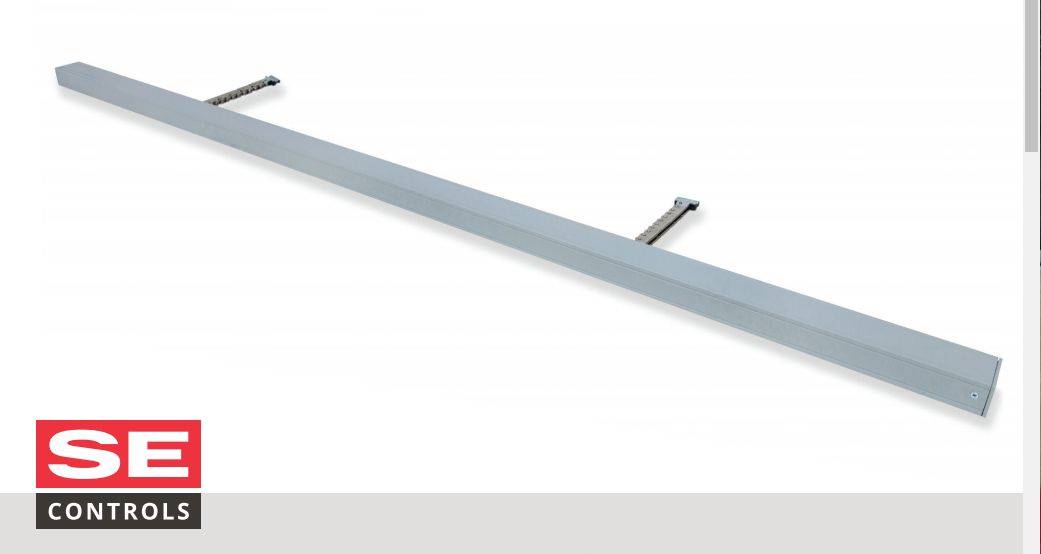

Twin SECO N 24 25 - Chain Actuator
Verified by manufacturer 2 days ago
The Twin SECO N 24 25 is a compliant chain actuator designed to provide precise and reliable operation for environmental ventilation applications.
Application
Suitable for environmental ventilation applications.
Description
The Twin SECO N 24 25 is a compliant chain actuator designed to provide precise and reliable operation for environmental ventilation applications.
Features and benefits:
- High-quality ‘Made in Britain’ actuator.
- Offers improved window performance and aesthetics for automated solutions.
- ‘Frequency of operation’ data logging records every actuator movement.
- Compact design with variable options for stroke length.
- Standard finish is RAL 9006 (white aluminium) but it can be customised to suit installation requirements.
- Standard flex length is 2 m but this can be modified to suit installation requirements.
- Standard range of pre selected quarter point bodies plus tailored lengths upon request.
- Extensive range of brackets to suit a variety of window systems.
- Quiet operation with configurable speed control.
General information
Color | Grey Guidance for specification option: RAL 9006. Manufacturer guidanceBespoke options available to any RAL code. |
Finish | Powder-coated Guidance for specification option: Polyester powder-coated. |
Material | Aluminium |
Shape | Rectangle |
Length | 1131 mm |
Width | 28.6 mm |
Height | 41.6 mm |
Warranty description | One year Guidance for specification option: One year from date of invoice. (Commercial terms for each project will supersede this warranty information). Manufacturer guidance15 000 cycles. |
Uniclass | |
CAWS | L10/490 Roof ventilators L10/480 Roof windows L10/460 Rooflights L10/400 Composite windows L10/310 Steel windows L10/33 Proprietary windows L10/10 Wood windows L10/210 Wood windows L10/45 Rooflights L10/30 PVC-U windows L10/25 Aluminium windows L10/15 Wood windows L10/350 PVC-U windows L10/20 Steel windows L10/650 Metal louvres L10/330 Aluminium windows L10/31 PVC-U windows L10/390 Proprietary windows |
Specification data - Chain actuators
Description | Chain actuator designed to provide precise and reliable operation for environmental ventilation applications. |
Manufacturer | SE Controls. |
Stroke | 350 mm.Guidance for specification option: Configurable. |
Electrical supply | 24 V d.c. |
Operation | Sensor control. |
Finish | Powder-coated RAL 9006, silver grey.Guidance for specification option: Standard. |
Accessories | Not required.Four-core flex.Guidance for specification option:
Flex length, non-standard.Guidance for specification option:
|
Controls | 3 A controller. Guidance for specification option: Recommend number of actuators: 3. 30 A PSU. Guidance for specification option: Recommend number of actuators: 30. NVLogiQ® PSU. Guidance for specification option: Recommend number of actuators: 4. OS2 AC controller. Guidance for specification option: Recommend number of actuators: n/a. SHEVTEC controller. Guidance for specification option: Recommend number of actuators: 8. Manufacturer guidance
|
Opening speed | 5 mm/s (minimum). Guidance for specification option: Configurable. |
Fixing | Brackets, sill fixing. Guidance for specification option: Consult manufacturer for height and offset options. Brackets, face fix. Guidance for specification option: Consult manufacturer for height and offset options. Brackets, through body sill. Guidance for specification option: Consult manufacturer for height and offset options. |
Orientation | Bottom-hung. Top-hung. Side-hung. Centre-pivot. |
Interconnecting cable | Flex: Two core, PVC. |
Ingress protection (IP) rating | IP20. |
Current | 1.0 A (draw). |
Force | 2 x 250 N. Guidance for specification option: Thrust/ close force. |
Operating temperature range | -5°C to +60°C. Guidance for specification option: Ambient. |
Seal | Seal relief programmable up to 20 mm. |
Duty cycle | 22% (approximately 2 min on, 7 min off). |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium |
