Type W Caviweep Weep-ventilator
Verified by manufacturer 12 days ago
EPD
Certificate type
Plastics perpend joint weep hole and cavity ventilator.
Application
For use in external masonry leaves for ventilating cavities, insulated cavities and suspended floor voids.
Description

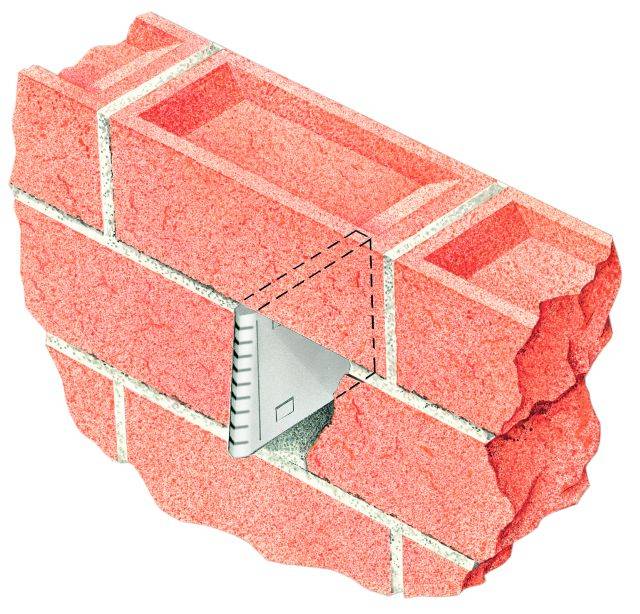

A dual function, plastics perpend joint weep hole and cavity ventilator.
Features and benefits:
- Includes insect resistant grille.
- Integral water check baffles.
- Lock fit wedges.
- Inclined front.
- Push fit extension duct permits ventilation through an insulated cavity, or provides ventilation to roof voids.
General information
Color | Beige Black Brown Grey White |
Finish | Textured |
Material | Polypropylene |
Shape | Rectangle |
Length | 105 mm |
Width | 10 mm |
Height | 65 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | F30/132 Perpend joint plastics weepholes F30/175 Cavity ventilators F30/8 Perpend joint plastics weepholes |
Specification data - Perpend joint plastics weepholes
Classification data | |
Colour | Beige. Black. Brown. Clear. Grey. Terracotta. White. |
Execution | Installing perpend joint plastics weep holes. |
Duct extension | Not required. Required. Guidance for specification option: Extension size - 200 x 65 x 10 mm. |
Render front cover | Not required. Required. Guidance for specification option: An optional front cover ensures cleanliness when incorporating in rendered work. Covers are florescent and are easily removed upon completion of render work. |
Free airflow | 320 mm². Guidance for specification option: Free air provision (standard Type W). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polypropylene |
A1–A3 ('Production stage') | Embodied carbon as defined in BS EN 15804 |
Normalized unit | 1.3 kg CO₂ eq/kg |
Declared unit | 1.3 kg CO₂ eq/kg Certified |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Product certifications
Product certifications
EPD
EPD - 0848
Literature
Ventilation Product Guide
Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)
