Type Z Cavistrap

Name: Type Z Cavistrap
Brand: Cavity Trays Ltd
SKU: spXCKyVwRNXRkKQWoMo8i8

Verified by manufacturer 6 months ago

Cavity Trays Ltd

Strap to fix and support flexible DPC installations.

Jump to:

+44 (0)1935 474769 Website

Application

Used to clamp and support polymer, bitumen and polyethylene roll damp proof course (DPC) installations.

Description

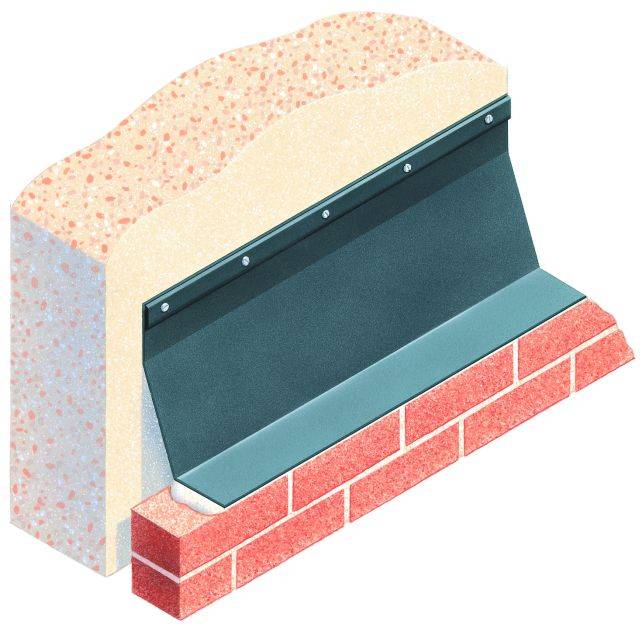

A plastic strap, predrilled to receive fasteners and used to clamp and support polymer, bitumen and polyethylene roll damp proof course installations.

Features and benefits:

Arched profile with feathered edges promotes even pressure distribution.
Secures DPC installations against solid backgrounds including block, concrete, timber etc.

General information

Color	Black Guidance for specification option: Applicable for Unplasticized polyvinyl chloride (PVC-U) material only.
Finish	Other
Material	Stainless steel Guidance for specification option: To special order. PVC-U Guidance for specification option: Unplasticized polyvinyl chloride.
Shape	Other
Size	Guidance for specification option: PVC-U Cavistraps are 2 000 mm long and 30 mm wide. Straps have 4 mm diameter holes for fasteners, drilled at 150 mm centres.
Length	2000 mm
Width	300 mm
Height	2 mm
Warranty description	60 year

Uniclass	Pr_25_57_21_66 Preformed cavity traysPrimary
CAWS	F30/370 Preformed cavity trays F30/385 Junction cloaks/ stop ends for preformed dpcs/ cavity trays F30/56 Preformed cavity trays

Specification data - Preformed cavity trays

Material	Unplasticized polyvinyl chloride (PVC-U). Stainless steel. Guidance for specification option: To special order.
Length (effective)	2000 mm.
Attached lead flashings	Required.

Location	As drawing ___. As schedule___.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Recyclability	Yes
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
