Ultra Flat S - Square Shower Tray
Verified by manufacturer over a year ago
K8214 - 800 x 800 x 30 mm Shower Tray
K8214 - 800 x 800 x 30 mm Shower Tray

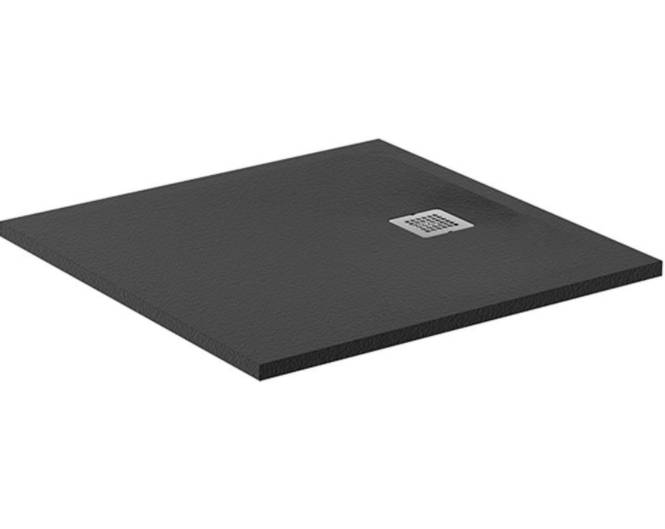

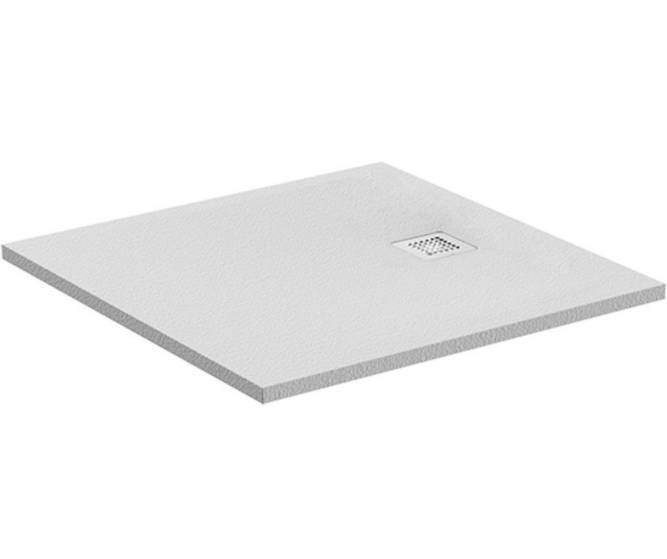

Ultra Flat S 800 x 800 x 30 mm shower tray.
Application
Suitable for shower areas.
Description
A square low profile shower tray with waste.
Ultra Flat S shower trays are made from IDEAL SOLID®, a highly resistant material composed of a mixture of natural minerals and resins. The matt stone effect finish is elegant and contemporary, and gives distinctiveness and personality to the shower area.
Features and Benefits:
- Comes with stainless steel waste grill (other colour finishes available).
- Low profile 30 mm height.
- Compatible with Ideal Standard shower enclosures
- Antislip (DIN Class C).
- Bacterial Resistant.
- Colour matching waste cover available.
- Must be ordered with waste L6307AA.
General information
Color | Beige Guidance for specification option: Sand. Black Guidance for specification option: Jet Black. Grey Guidance for specification option: Concrete Grey. White Guidance for specification option: Pure White. |
Material | Guidance for specification option: IDEAL SOLID®, a highly resistant material composed of a mixture of natural minerals and resins. |
Shape | Square |
Length | 800 mm 900 mm 1000 mm |
Width | 800 mm 900 mm 1000 mm |
Height | 30 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/375 Shower units R11/315 Floor drains N13/43 Shower trays |
Specification data - Shower trays
Standards | To BS EN 14527. |
Form | Square. |
Materials | |
Body | Acrylic capped-ABS.Polymer resin. |
Finish and colour | Pure white (FR).Concrete grey (FS).Jet black (FV).Sand (FT). |
Size | 800 x 800 x 30 mm. |
Waste hole | 90 mm, centre. |
Integral accessories | Not required.Ultra Flat S Shower Tray Waste Cover - KV169.Shower Waste - L6307(AA).Guidance for specification option: Idealite top access shower tray waste and trap. Manufacturer guidanceMust be ordered with waste L6307AA |
