Urban Tree Grille
Verified by manufacturer 6 months ago
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
FSC
Certificate type
Galvanized steel square tree grille.
Application
Suitable in outdoor areas for tree protection.
Description

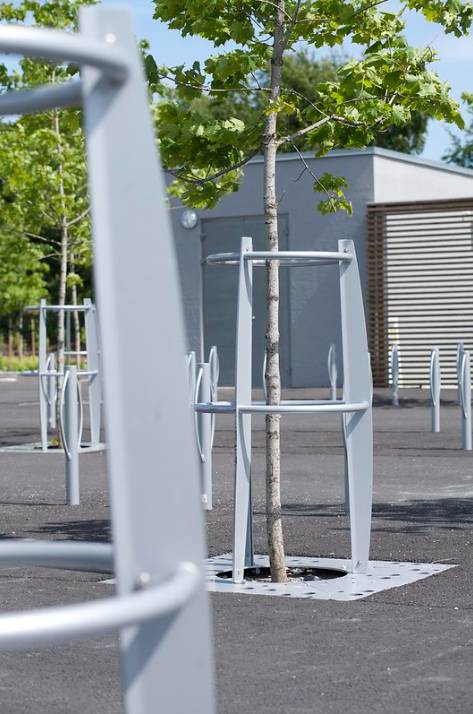

Urban tree guard can be installed on a round or square grating, or using its own ground anchors.
Features and benefits:
- Part of the Urban range.
- Free-standing/ mounted to the ground.
- Spare parts are available if required.
- Corrosion class C5-M.
- Award for design excellence.
- Nordic Swan Ecolabel, Intertek and Climate Compensated Organisation certifications.
General information
Color | Grey Other Guidance for specification option: Powder-coated, RAL colour. |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Square |
Length | 1200 mm |
Width | 1200 mm |
Warranty description | Lifetime Guidance for specification option: Lifetime warranty against rust. 15 year Guidance for specification option: 15 year warrants on powder coating. |
Uniclass | |
CAWS | Q10/305 Tree grilles and surrounds Q35/535 Tree grilles Q50/37 Tree grilles Q50/262 Tree grilles |
Specification data - Tree grilles
Material | Steel. |
Finish | Hot-dip galvanized.Hot-dip galvanized and powder-coated. |
Colour | Grey.Guidance for specification option: Galvanized finish. Powder coated, RAL colour.Guidance for specification option: Powder-coating available in over 200 RAL colours. Consult manufacturer and insert requirements. |
Shape | Square. |
Size | 1200 x 1200 mm. |
Internal aperture | 560 mm. |
Number of parts | 1. |
Fixing | Free-standing. Ground mounted. |
Corrosion class (grid) | C5-M. |
Weight | 82 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 272.39 kg CO₂ eq/unit Self declared |
Recyclability | Partly recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 2.67 % |
Third party certifications
Third party certifications
ISO 14001 Environmental Management Systems
ISO 14001
ISO 9001 Quality Management
ISO 9001
FSC
FSC Chain of Custody Certificate
