V22 Stainless Steel Cantilever Bracket - Worktop Gallows-type Support Brackets
Verified by manufacturer 6 days ago

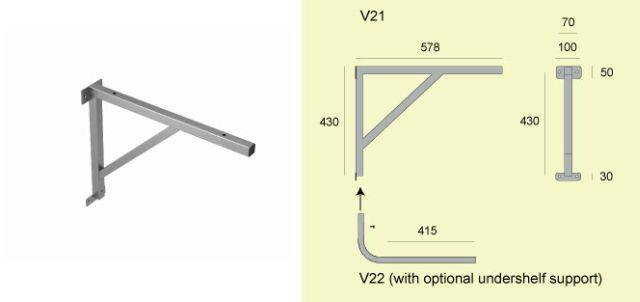

Stainless steel gallows type cantilever bracket with undershelf support.
Application
Suitable for a wide range of applications and environments, including commercial and domestic kitchens, tea points, offices, libraries, schools, hospitals, hostels, retail environments and bars.
Description
A 30 x 30 mm square section tubular stainless steel, with optional 20 x 20 mm cross-brace and undershelf support. Provides medium weight capacity wall-mounted support to surfaces. Designed to complement GEC Anderson Ltd stainless steel sinktops and worktops.
Features and benefits:
- Top bracket twice drilled for shelf fixing.
- Special sizes are available to order.
- 1000 mm spacing interval is recommended, using conventional fixing.
- V22 has an optional undershelf support arm (V21 support arm as standard, specified separately).
Wall plates:
- 100 x 50 mm (top).
- 100 x 30 mm (bottom).
Undershelf support depth:
- 415 mm.
Recommended spacing:
- 800–1000 mm.
General information
Color | Silver |
Finish | Brushed |
Material | Stainless steel Steel |
Shape | Triangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | N13/449 Shelves P20/420 Bracket supports P20/425 Bracket supports P20/65 Bracket supports P20/66 Bracket supports |
Product range |
Specification data - Stainless steel brackets
Material | |
Grade | 1.4301 (304). |
Section size | 30 x 30 mm. |
Length | Manufacturer guidanceBespoke, insert requirements. |
Factory finish | Brushed. |
Accessories | Not required. Undershelf support arm (20 x 20 mm). |
Wall plate | Top: 100 x 50 mm, Bottom: 100 x 30 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
