Vantage® CS Coping System - Rainscreen Cladding System

Verified by manufacturer 4 months ago

BTS Fabrications Limited Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Metal clip-on coping system.

Jump to:
+44 (0)1388 816883 Website

Description

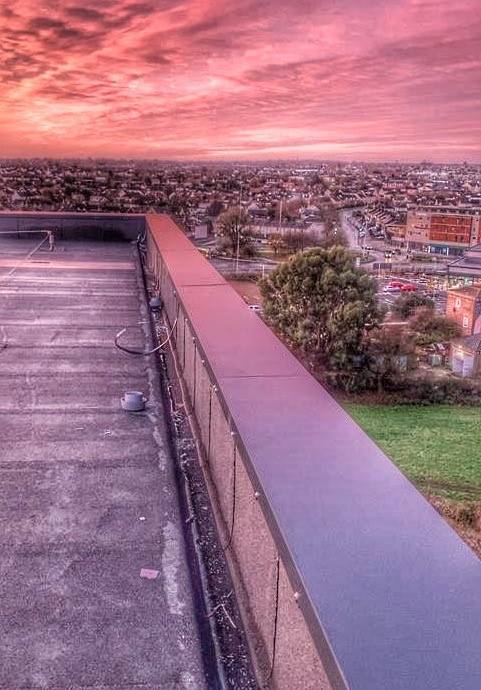

Decorative, structurally strong and watertight clip-on coping system available in a comprehensive range of materials and finishes to complement or contrast with the overall building aesthetics.

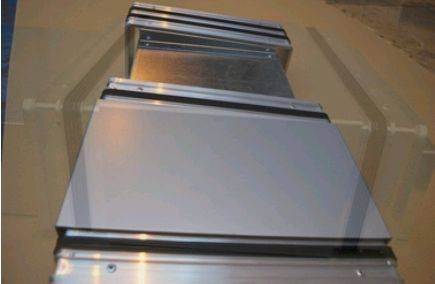

No fixings pierce the capping top, which removes the risk of leakage from defected installed screws. Specially designed grooves on the clip secures the rubber gasket and gives a snug watertight antidrum fit.


Features and benefits:

  • Decorative.
  • Structurally strong.
  • Quick and easy to install.
  • Able to fit from the roof reducing access costs.
  • A suite of ancillary items, including stop ends, corner pieces, T-sections, weatherproofed support brackets, junctions and up stands complete the system.

General information

Material

Aluminium

Shape

Square

Rectangle

Crescent

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_25_93_54_03 Aluminium coping unitsPrimary

CAWS

F30/80 Coping units

F30/780 Coping system

Product range

Vantage® Coping Systems

Specification data - Aluminium coping units

Material

-

Manufacturer guidance

Available in a comprehensive range of materials to compliment or contrast with the overall building aesthetics. Consult manufacturer and insert requirements.

Finish

-

Manufacturer guidance

Available in a comprehensive range of finishes to compliment or contrast with the overall building aesthetics. Consult manufacturer and insert requirements.

Fixings

Manufacturer's standard.

Guidance for specification option:

  • Copings up to 600 mm wide: Brackets should be fixed at a maximum of 1500 mm centres.
  • Copings 600–1000 mm wide: Brackets should be fixed at a maximum of 1000 mm centres.
  • Copings above 1000 mm wide: Brackets should be fixed at 750 mm centres.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

BTS ISO 14001:2015

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

BTS ISO 45001:2018

ISO 9001 Quality Management

ISO 9001 Quality Management

BTS ISO 9001:2015
