Vario Walk-on Rooflight

Name: Vario Walk-on Rooflight
Brand: VELUX Company Ltd
SKU: dpRFahY97u317vL1JztHFH

Verified by manufacturer 22 days ago

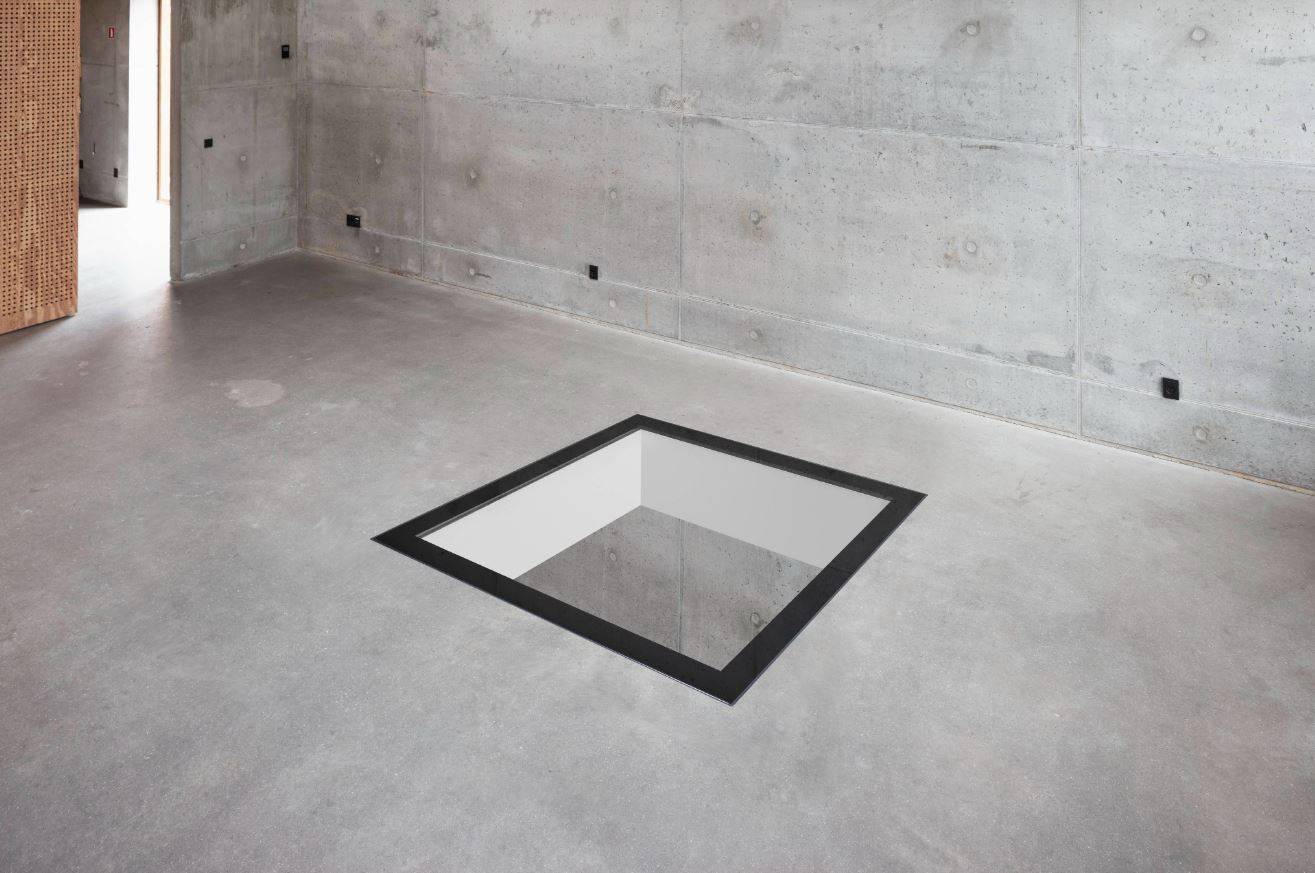

Walk-on rooflight.

Jump to:

BOS

Application

Recommended to install in 2°.

Walk-on rooflight.

Features and benefits:

Durable walk-on glazing for roof terraces and interior flooring.
Fully bespoke sizes from 250–2000 mm with an impressive maximum of 2 m² edge-to-edge view of the skies above.
Superior energy efficiency, achieving an astonishingly low thermal transmittance of U_w 2 W/m²K according to EN 14351-1 and with a 1.3 U_g value.
Supplied with a laminated inner glazing as standard for superior safety in the unlikely case of breakage.
Includes a 150 mm insulated wooden upstand as standard (customizable between 150–600 mm).

Color	Black Grey Manufacturer guidance Available in RAL 7043 gloss 30 (Traffic grey) or RAL 9005 gloss 30 (Jet black) as standard.
Finish	Powder-coated Manufacturer guidance Powder coated
Material	Glass Aluminium Plywood Manufacturer guidance Aluminium and plywood.
Shape	Rectangle Square Manufacturer guidance Square/ rectangular.
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Guidance for specification option: Guarantee for the windows and panes. Three year Guidance for specification option: Guarantee for the electrical items and blinds.

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/460 Rooflights L10/45 Rooflights

Product range	Vario by VELUX Bespoke Flat Rooflights

Form	Walk-on rooflight for flat roof.
Size	As drawing. Guidance for specification option: Insert reference, available 250–2000 x 250–2000 mm, 2 m² maximum area, structural opening is +30 mm. As schedule. Guidance for specification option: Insert reference, available 250–2000 x 250–2000 mm, 2 m² maximum area, structural opening is +30 mm.
Product performance	-
Fire performance	-
Fire resistance	External fire classification of BROOF(t4) according to EN 13501-5:2016.
Reaction to fire	Class B-s1, d0.
Whole window U-value	2 W/m²K.
Frame	-
Material	5 mm thick aluminium.
Finish	-
Coating	Powder coated.
Colour	RAL 7043 gloss 30 (Traffic grey). RAL 9005 gloss 30 (Jet black). Special order. Guidance for specification option: Insert requirement.
Glazing or infill	-
Type	Double glazed. Triple glazed.
Construction	Laminated inner pane, UV protecting.
Coating	LowE as standard.
Integral kerb	Plywood, water based white coating, RAL 9010 gloss 30.
Operation	-
Type	Fixed walk-on.
Accessories	None. Anti-slip dots. Guidance for specification option: Classified as R11 according to DIN 51130.

Upstand height	150 mm. Guidance for specification option: Standard. Special order. Guidance for specification option: Insert requirement, available 150–600 mm.
