VEKA Matrix Fully Reversible Window - PVC-U Windows
Verified by manufacturer 17 days ago
BSI Kitemark
Certificate type
PVC-U fully reversible windows.
Application

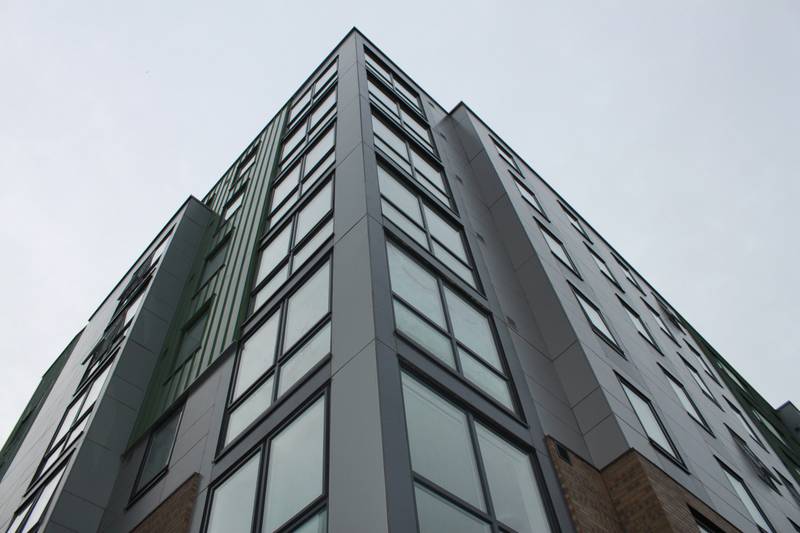

PVC-U windows that are suitable for multi-story properties.
Description

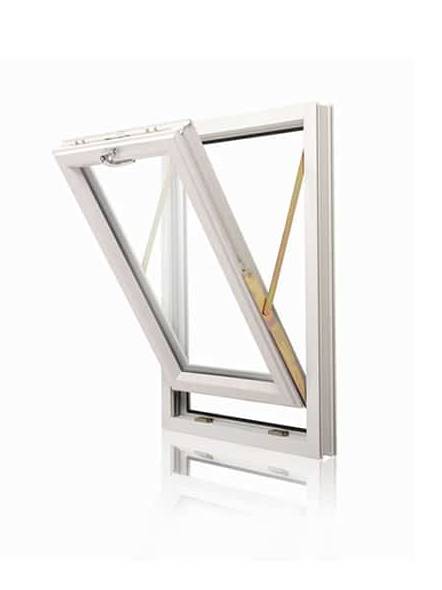

Suitable for multi-story properties, the 180-degree reversible opening mechanism pivots within the axis of the hinge without protruding into the room to allow easy, safe and secure cleaning of the external glass from the inside of the property. Available in a large assortment of colours and woodgrain options from the VEKA plc's Variations range.
Features and benefits:
- Fully reversible windows.
- Large assortment of colours and woodgrain options.
- Sculptured or bevelled options available.
- Complies to BS EN 12608-1+A1:2020/ PAS 24:2022.
General information
Color | Beige Black Blue Brown Cream Manufacturer guidanceAvailable in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL. |
Finish | Coated Woodgrain |
Material | PVC-U |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Specification data - Unplasticized polyvinyl chloride (PVC-U) window units
Standard | Non-fire and/ or smoke-rated windows to BS EN 12608 and BS 7412. |
Third-party certification | Third-party-accredited by BSI Kitemark™. |
Dimensions and configurations | Manufacturer guidanceConsult manufacturer and insert requirements.
|
Product performance | |
Weather performance | |
UK exposure category | To BS 6375-1, 2000 Pa. |
Air permeability | To BS 6375-1, Class 2. |
Watertightness | E1050. |
Resistance to wind load | To BS 6375-1, Class A4. |
Durability | |
Operation and strength characteristics | To BS 6375-2. |
Safety | |
Security level | To PAS 24. |
Thermal | |
Whole window U-value | 1.2 W/m²K.Guidance for specification option: Achieves U-values as low as 1.2 W/m²K using double glazing. 0.93 W/m²K.Guidance for specification option: Achieves U-values as low as 0.93 W/m²K using triple glazing. |
British Fenestration Rating Council Window Energy Rating | A+.Guidance for specification option: Window energy rating of A+ achievable. |
Frame | |
Profile | To BS EN 12608-1. |
Colour and texture | Manufacturer guidanceConsult manufacturer and insert requirements. Available in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL*. * SPECTRAL is only available on bevelled or flat surfaces. |
Glazing or infill | |
Requirements | Double glazed.Triple glazed. |
Hardware | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Operation | |
Type | Manual. |
Fixing features | Manufacturer's standard. |
Outer frame | 60 mm. |
Mullions | 86 mm T&Z mullions. |
Sash | 70 mm reversible sash. |
Glazing beads | 28 mm bevelled. 28 mm sculptured. 36 mm bevelled. 36 mm sculptured. 40 mm bevelled. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | PVC-U |
Manufacturing plant location | |
Recyclability | Through our advanced recycling process, each PVCu frame can achieve a potential lifetime of 350 years. VEKA Recycling Ltd offer a fully circular solution for PVCu waste management. Collected and processed in the UK, for use in the UK. |
Expected Life | 35 year Guidance for specification option: Through our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years. Manufacturer guidanceThrough our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years. |
Third party certifications
BSI Kitemark
Matrix Fully Reversible Window Kitemark™ Certificate No. KM 33520
Literature
VEKA Matrix Fully Reversible Window Specification
