Veranda Zip Max - Awning
Verified by manufacturer 5 days ago
Configuration S
Configuration S

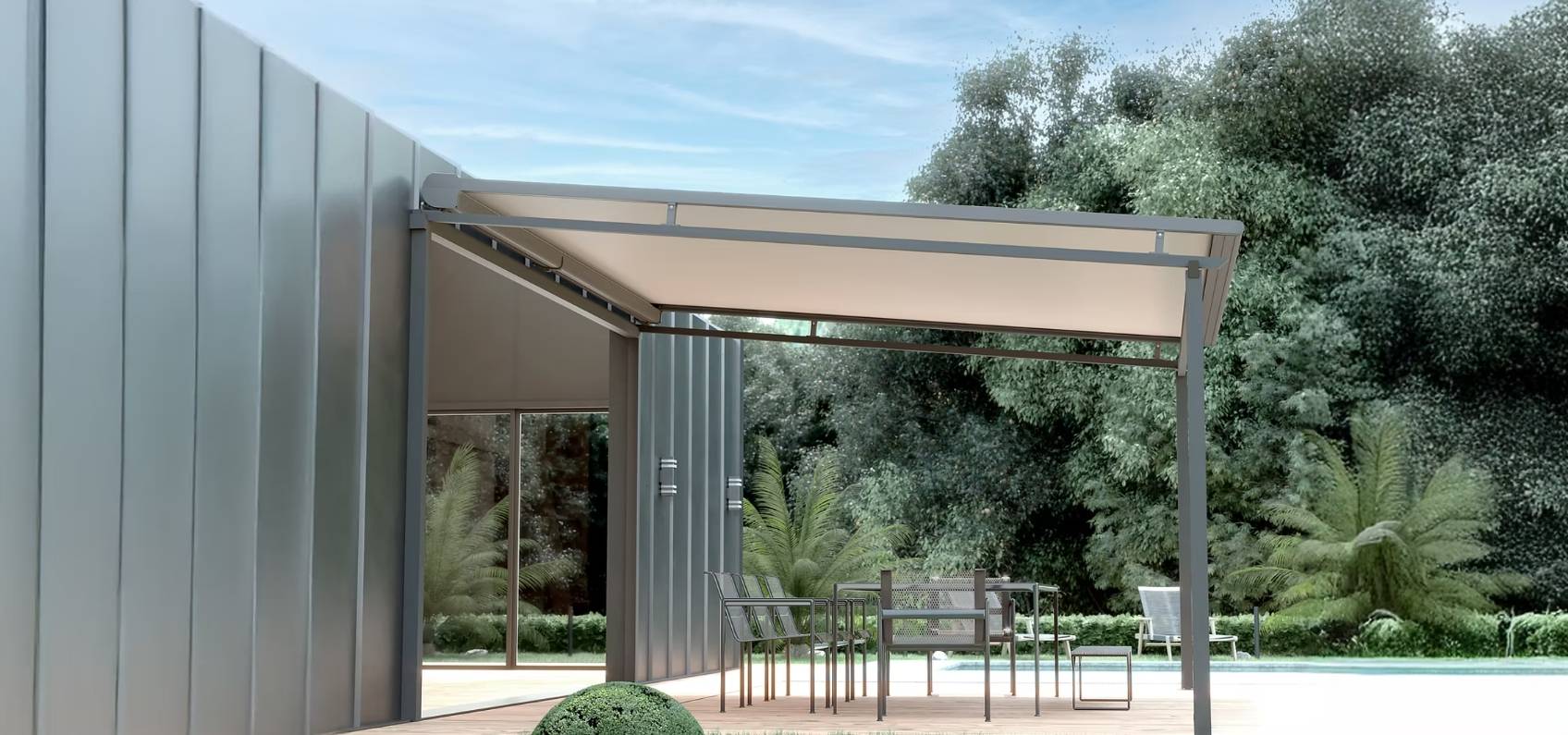

Veranda Zip Max is the evolved version of the Veranda Zip, designed to offer greater stability, durability, and easy installation and with dimensions of up to 5 x 5 meters.
Application
Awnings and verandas suitable for outdoor spaces including, but not limited to:
- Balconies.
- Windows.
- Terraces.
- Courtyards.
- Verandas.
- Glass roofs.
- Conservatories.
- Porches.
Description
Veranda Zip Max is the evolved version of the Veranda Zip, designed to offer greater stability, durability, and easy installation. Combining a robust tensioning mechanism with high-resistance materials, it ensures long-term reliability and comfort.
Features and benefits:
- Quick and efficient installation with a gas piston tension system and simplified cord routing.
- Guided zipper system ensures optimal fabric tension and eliminates light gaps.
- High-performance Dyneema® cord resists twisting, abrasion, and breakage.
- The motorized system can be automated to create smart routines.
- CE marked.
- Manufacturer certified to Eco-Management and Audit Scheme (EMAS).
General information
Color | White Black Grey Guidance for specification option: Grey aluminium. Ivory Other Guidance for specification option: Anthracite. |
Finish | Matt Textured Lacquered |
Material | Aluminium Fabric |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Three year |
Uniclass | |
CAWS | L10/680 Solar shading systems B91/330 Canopy L10/59 Solar shading systems |
Specification data - Awnings
Classification data | |
Standard | To BS EN 13561. |
Size (width x depth) | 5000 x 5000 mm. Manufacturer guidanceMaximum width x maximum depth. |
Frame | |
Format | Fixed. Guidance for specification option: Installation is approved for slopes ranging from a minimum of 5° to a maximum of 45°. |
Material | Aluminium. |
Canopy | |
Material | Orchestra. Orchestra Max. Opera. Soltis® 92. |
Colour and pattern | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Valance detail | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Headrail | |
Material | Extruded aluminium. Guidance for specification option: 216 x 186 mm cassette made with extruded aluminium frames. |
Colour | White, RAL 9016. Grey aluminium, RAL 9006. Ivory RAL 1013. Anthracite, RAL 7016. Black RAL 9011. Manufacturer guidanceQualicoat lacquer finish. |
Operation | |
Mode | Electrically powered, remote control. Guidance for specification option: Can be automated to create smart routines. |
Power supply | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Mechanism endurance | To BS EN 13561, Class 3. Guidance for specification option: To BS EN 13561, Class 3; 10 000 cycles of deployment and retraction. |
Wind resistance | To BS EN 13659:2015, Class 3. |
Accessories | Not required. Central cassette reinforcement. Guidance for specification option: Central cassette reinforcement included from 4500 mm width. |
Tube diameter | Ø95 mm extruded aluminium. |
Angle of inclination | ≥5º. |
Drain | Included. Manufacturer guidanceLateral drain. |
Bottom bar | Qualicoat lacquered aluminium aluminium. Guidance for specification option: Unified textured RAL colour finish. consult manufacturer for more details and insert requirements. |
Guides | Zipped qualicoat lacquered aluminium side channels. |
Operating system | RTS radio. IO radio. |
Brackets | Cassette floor brackets. Side channel floor brackets. |
Profile colour | White, RAL 9016. Grey, RAL 9006. Ivory RAL 1013. Anthracite, RAL 7016. Black RAL 9011. Manufacturer guidanceFrames and hembar in the same matching RAL lacquered colour. |
Mounting | Floor supports for cassette and side channel. |
Sustainability data
Material | Aluminium Fabric |
