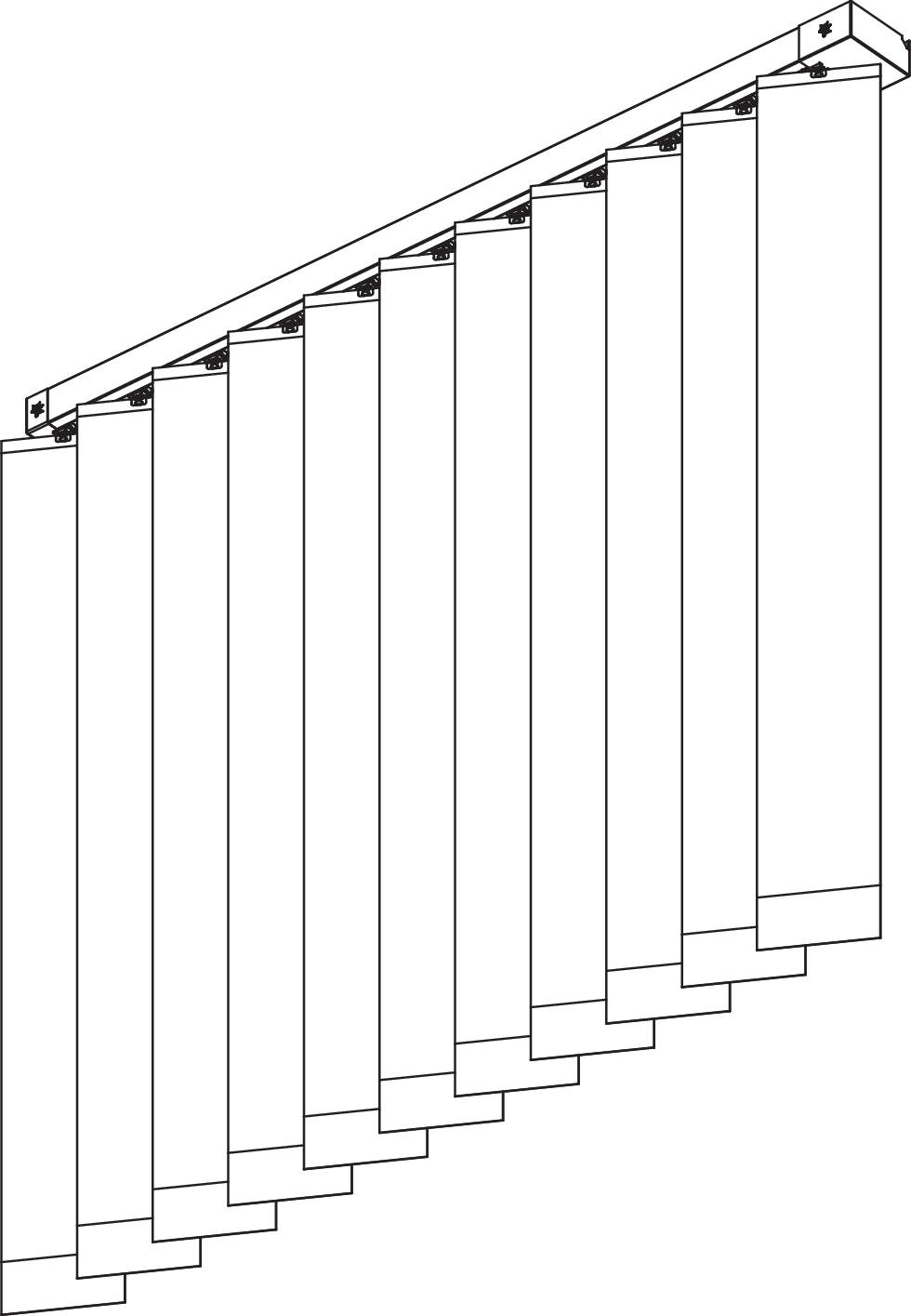

Vertical Blind - Motorised / Electric - Silent Gliss SG 2960
Verified by manufacturer 7 days ago
Electrically operated vertical blind system.
Application
Engineered for smooth, whisper-quiet operation, vertical blinds offer precise control of light and privacy.
Designed for commercial or residential interiors.
Description
Electrically operated vertical blind system.
Features and benefits:
- Systems available up to 5 m in length x 4 m in height.
- Minimum system width for single stack: 900 mm/ pair stack: 1200 mm.
- Maximum weight per louvre: 320 g.
- Louvre width: 127 mm.
- Ceiling, wall, recess fitting available.
- Single, pair, multiple, symmetric, and asymmetric stacking.
- Quite, smooth and powerful 24 V.d.c motors with louvre travel speed of 100 mm per second.
- Open-close-tilt operation via radio control / dry contact or SG Smart.
- System can be combined with various radio hand-held and wall transmiters - Silent Gliss Control N/ Control R (external receiver required for control R consult Silent Gliss).
- Smart integration available.
- Available with Vertical Waves and 3D Vertical Waves refer to manufacturer.
- Hardware available in white, and black.
Electric motor:
The system is available with two motor options: Motor SG 11891 (supplied as standard) 24 V DC, current 1.5 A, temperature for operation 0–60°C, thermal overload protection, CE/IECEE standard. Weight of motor 1 kg.
General information
Color | White Black Grey Guidance for specification option: *Profile alu anodised *Not all plastic parts available in grey Manufacturer guidanceSpecial colours possible. |
Finish | Powder-coated |
Material | Aluminium Guidance for specification option: Aluminium profile SG 11863 Nylon Guidance for specification option: Assembled system contains nylon parts. |
Shape | Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | B12/400 Blinds B12/50 Blinds N1/302 Window blinds N10/70 Blinds N10/240 Blinds |
Specification data - Vertical blinds
Classification data | |
Standards | To BS EN 13120. |
Slats | |
Width (maximum) | 127 mm. |
Colour | Manufacturer guidanceA wide range of options are available, consult manufacturer for details and insert requirements. |
Headrail | |
Material | Aluminium. |
Colour | Anodized aluminum grey. Black RAL 9005. White RAL 9016. |
Operation | 40 series motor. 50 series motor. |
Accessories | SG Control N. Guidance for specification option: Various radio hand-held and wall transmitters available. SG Control R. Guidance for specification option: Various radio hand-held and wall transmitters available. An external receiver is required. Smart by Silent Gliss. Guidance for specification option: Open designed two-way communication system which allows to flawlessly integrate products with most major building management systems. Wall Switch. Guidance for specification option: System can be operated by fixed wall switch. |
Dimensions | 44 x 42 mm. Guidance for specification option: Headrail (w x h). |
Fixings | Standard ceiling bracket (Ref 3033). Guidance for specification option: Ref 3033 - End clamps to be placed 200 mm from end of headrail. Standard ceiling bracket (Ref 3044). Wall fixing square extension bracket (Ref 11202). Guidance for specification option: 92 mm projection to outer face of track. End clamps (Ref 3033) and M4 x 6 screws (Ref 10395) needed. Wall fixing square extension bracket (Ref 11203). Guidance for specification option: 112 mm projection to outer face of track. End clamps (Ref 3033) and M4 x 6 screws (Ref 10395) needed. Wall fixing square extension bracket (Ref 11204). Guidance for specification option: 142 mm projection to outer face of track. End clamps (Ref 3033) and M4 x 6 screws (Ref 10395) needed. Wall fixing square extension bracket (Ref 11212). Guidance for specification option: 92 mm projection to outer face of track. M4 x 6 screws (Ref 10395) needed. Wall fixing square extension bracket (Ref 11213). Guidance for specification option: 112 mm projection to outer face of track. M4 x 6 screws (Ref 10395) needed. Wall fixing square extension bracket (Ref 11214). Guidance for specification option: 142 mm projection to outer face of track. M4 x 6 screws (Ref 10395) needed. Wall fixing universal extension bracket (Ref 11154). Guidance for specification option: 110–130 mm projection to outer face of track. M4 x 8 screws (Ref 10492). Wall fixing universal extension bracket (Ref 11155). Guidance for specification option: 132–160 mm projection to outer face of track. M4 x 8 screws (Ref 10492). Wall fixing universal extension bracket (Ref 11156). Guidance for specification option: 182–210 mm projection to outer face of track. M4 x 8 screws (Ref 10492). Recess channel profile (Ref 11865). Guidance for specification option: Blind headrail wedged into channel using special wedges (Ref 5118). |
Type | Straight. Wavy (wall ending wavy edge). Wavy (wall ending straight edge). Laser cut Vertical Waves. |
Stacking arrangement | Single stack in one direction. Guidance for specification option: A. Pair stack in two directions symmetrical. Guidance for specification option: B. Pair stack in one direction asymmetrical. Guidance for specification option: C. Pair stack in two directions asymmetrical. Guidance for specification option: D. Multiple stacking in one direction symmetrical or assymmetrical. Guidance for specification option: E. |
Sustainability data
Country of product manufacture | United Kingdom Manufacturer guidanceHardware assembled in United Kingdom |
Material | Aluminium Guidance for specification option: Aluminium profile SG 11863 Nylon Guidance for specification option: Assembled system contains nylon parts. |
Recyclability | Manufacturer guidanceAluminium is a recyclable material. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
Literature
Literature type
Child Safety Practice Guide by Silent Gliss
Move Smart Home Hub Brochure
Smart Home Shading Brochure by Silent Gliss
Switches and Controls by Silent Gliss
Similar products from Silent Gliss Ltd
Panel Glide Window Shading and Room Dividing System - Hand Operated - Silent Gliss SG 2700 - Panel Blind

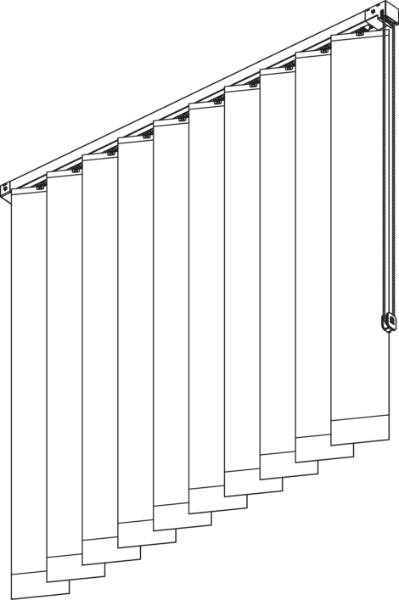

Vertical Blind - Chain Operated - Silent Gliss SG 2910
