Vibratek® MS-1X Spring Mount
Verified by manufacturer 8 days ago
2800401250
2800401250
Spring isolator.
Application
For medium to heavy equipment and machinery. Recommended for equipment with low working speeds, from 600 RPM and above.
Description
High performance spring isolator.
Features and benefits:
- Epoxy powder-coated base, caps and springs provide increased resistance to corrosion.
- Flexible internal filler prevents debris and solid elements entering and damaging the spring under load.
- Ribs in the metal base provide increased stiffness.
- Slot holes facilitate positioning and anchoring to the base material.
General information
Color | Black Green |
Length | 128 mm |
Width | 86 mm |
Height | 116 mm |
Uniclass | |
CAWS | K11/27 Acoustic separating floor system K11/275 Acoustic separating floor system |
Specification data - Spring isolators
Spring isolators type | Open. |
Colour code | Green. |
Load | 130—1250 N. |
Deflection | 25 mm (maximum). |
Sustainability data
Country of product manufacture | Netherlands |
Literature
Walraven VibraTek® Brochure

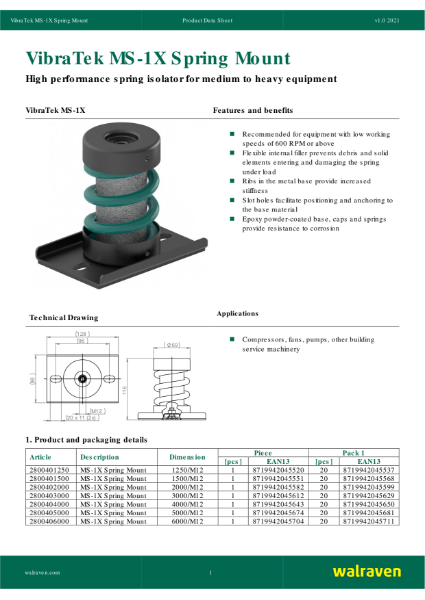

Walraven VibraTek® MS-1X Spring Mount Data Sheet
