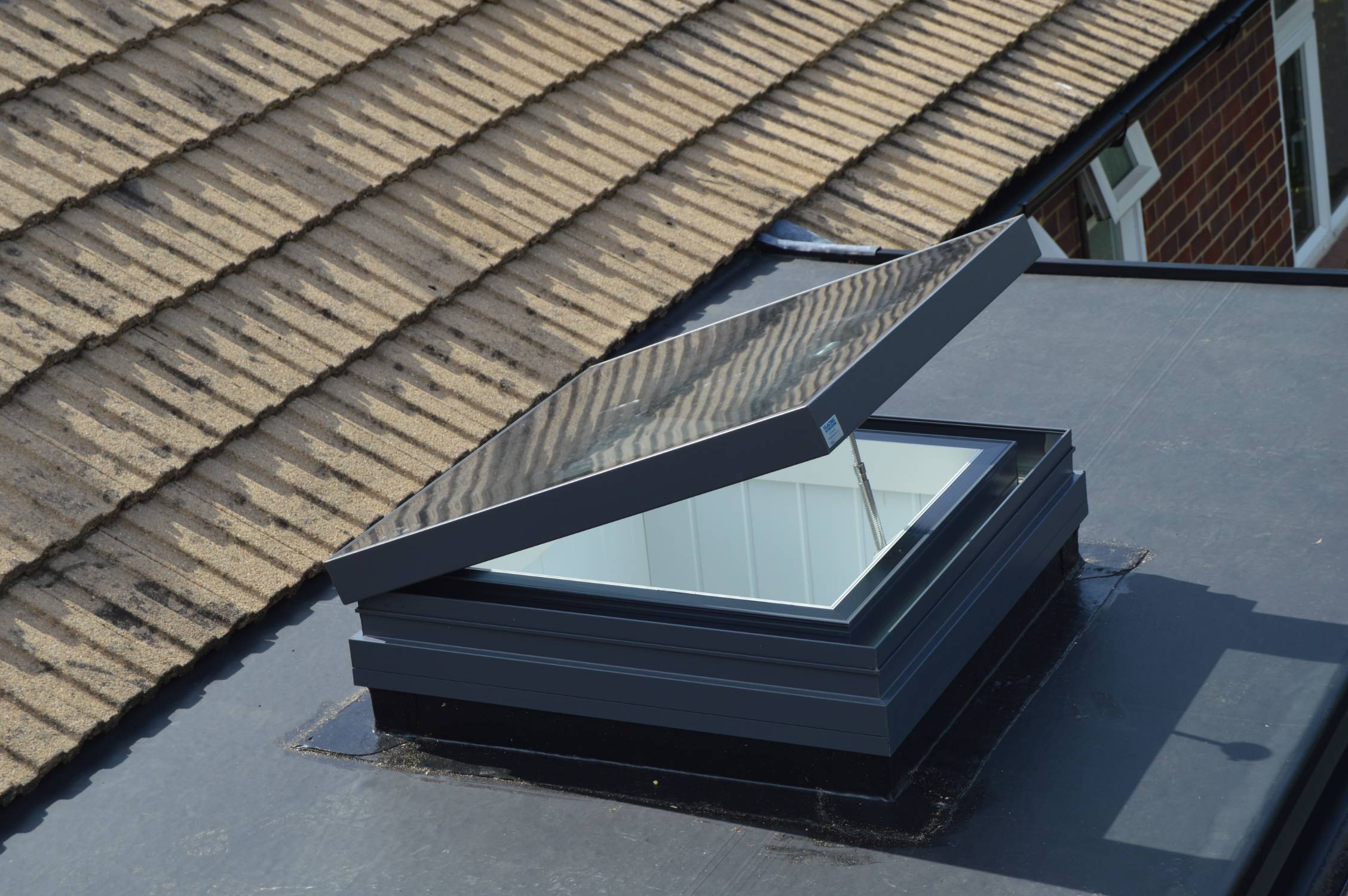

VisionVent Manual Operation Rooflight

Name: VisionVent Manual Operation Rooflight
Brand: Glazing Vision Ltd
SKU: q1jwBECSUPwGWk9FhBZ7dY

Verified by manufacturer 1 day ago

Double glazed: Electric

Glazing Vision Ltd

Product certifications:

Secured By Design
Certificate type
Qualicoat approval
Certificate type

Glazed hinged ventilation rooflight with thermally broken aluminium frame.

Jump to:

BOS

+44 (0)1379 658300 Website

Application

Can be installed on a flat (minimum 3°) or pitched roof, or even incorporated into a Flushglaze rooflight for large areas of glazing where there is a requirement for ventilation.

Description

The Glazing Vision VisionVent is a hinged flat roof ventilation rooflight which can be installed on a flat (minimum 3°) or pitched roof, or even incorporated into our Flushglaze rooflight for large areas of glazing where there is a requirement for ventilation.

The product has been designed with a minimal amount of visible internal framework and concealment of the electrical operators within the frame, giving a 100% clear glass area.

The Manual VisionVent can be opened to a maximum height of approximately 300mm through the use of a brass screw jack. Each unit is supplied with a crank handle.

As standard this is 1.5 m long (suitable for installations where the product is at a reach of up to 3 m above floor level).

Features & Benefits:

Dual colour framework
Thermally broken framework.
Heat soak tested low e safety glass.
Maximum daylight due to minimum framework.

Optional Extras:

Easy Clean Coating
Kerb Top Trim
Special colour(s)
Telescopic crank handle

Accreditations & Certifications:

Secured By Design (LPS2081 Issue 1:2015)
Glass Inspected To The Hadamar Standard
The Rooflight Association Member.
Loss Prevention Certification Board Certified
Qualicoat Approved Applicator.
BSI ISO 9001 & ISO 14001
Made In Britain Members

General information

Color	Grey Guidance for specification option: Standard. RAL 7015 slate grey on the exterior. White Guidance for specification option: Standard. RAL 9010 white on the interior. Other Guidance for specification option: RAL special order.
Finish	Powder-coated Guidance for specification option: Qualicoat approved.
Material	Aluminium Glass
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year Guidance for specification option: If installed by Glazing Vision Ltd Two year Guidance for specification option: If installed by alternate company

Uniclass	Pr_30_59_72_31 Framed rooflightsPrimary
CAWS	L10/45 Rooflights L10/460 Rooflights

Specification data - Framed rooflights

Classification data
Form	Flat.
Size	As drawing. As schedule.
Frame	-
Material	Aluminium. Guidance for specification option: Extruded thermally broken aluminium profiles, grade 6063 T6, with polyamide thermal break.
Finish	-
Coating	Polyester powder coating. Guidance for specification option: To the Qualicoat standard.
Colour	RAL 7015 slate grey and RAL 9010 white. Guidance for specification option: Standard. RAL 7015 slate grey on the exterior; RAL 9010 white on the interior. RAL special order. Guidance for specification option: Dual color; consult manufacturer and insert requirements.
Glazing or infill	-
Type	Glass units.
Construction	Double glazed. Manufacturer guidance Glazing.
Colour	Clear.
Integral kerb	Guidance for specification option: Insert requirements; consult manufacturer's literature for more information.
Operation	-
Type	Electrical. Chain actuated. Electrical (integrated). Chain actuated (integral).
Control	Printed circuit board (PCB). Guidance for specification option: Pooflight control: On board control printed circuit board (PCB) housed within IP-rated enclosure.
Accessories	Not required. BMS Integration. Enduroshield easy clean glass coating. Guidance for specification option: Gives a non-stick surface making the glass easier to clean and keep clean, stay clean for longer and resist staining and discoloration. Rain sensor. Remote control. Ritec glass coating. Thermostat.
Execution	Installation of framed rooflights.
Seal	Inner EPDM rubber bubble seals and outer EPDM rubber seal.
Power supply	24 V, 14.6 A, 300 W. Guidance for specification option: External, mains powered supply.
Outer	6 mm clear soft low E toughened heat soak tested. Manufacturer guidance Glazing.
Spacer	18 mm black silicone sealed argon filled cavity. Manufacturer guidance Glazing.
CenterCoreSpacing	Not applicable. Manufacturer guidance Glazing.
Inner	8.8 mm annealed (PAR) PVB laminated. Manufacturer guidance Glazing.
