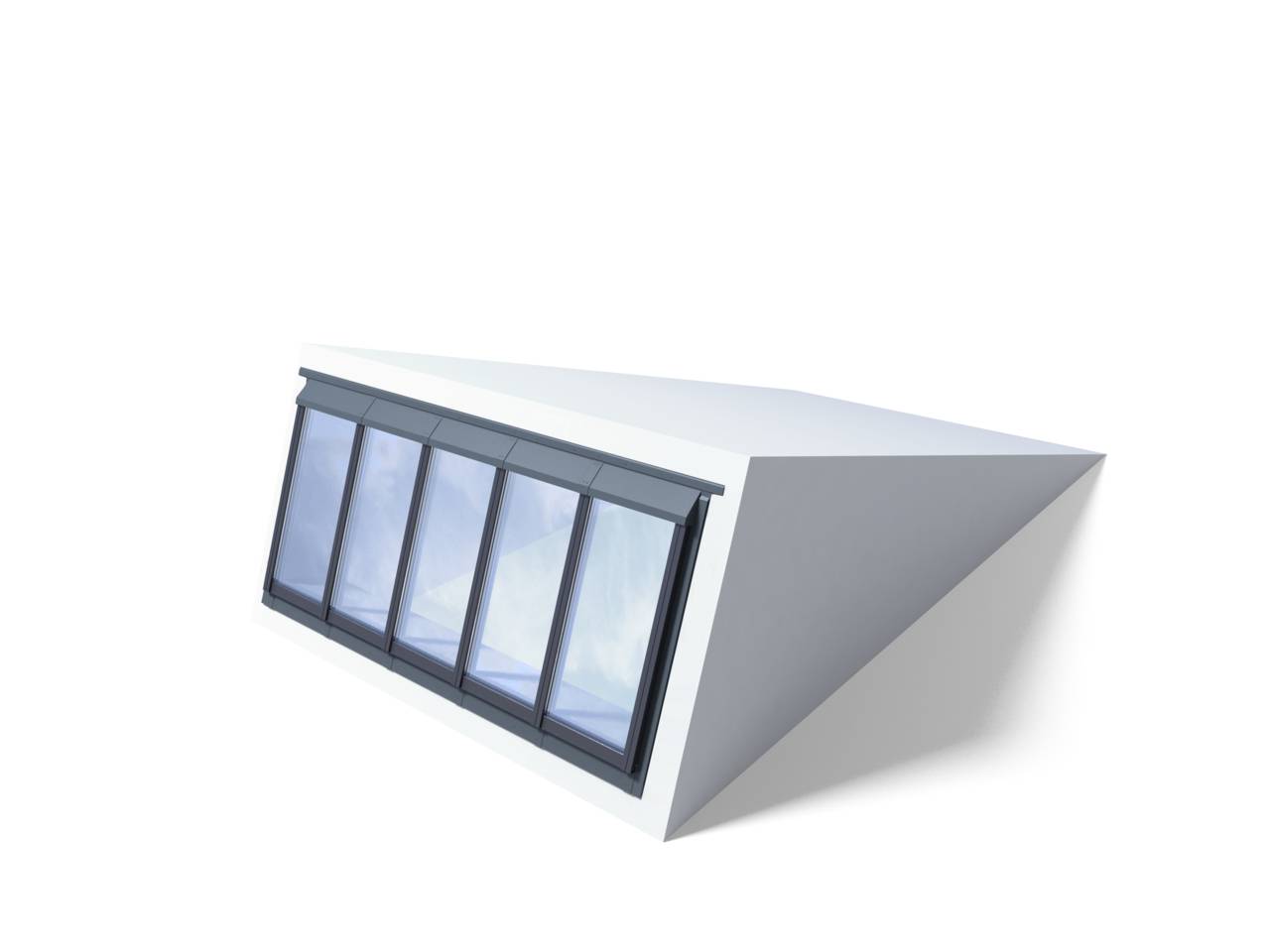

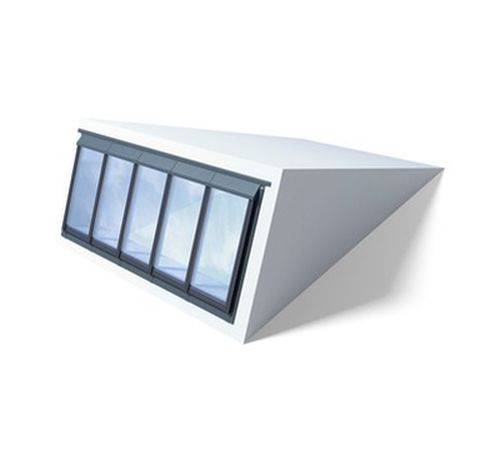

VMS Northlight 25-90° - Rooflight
Verified by manufacturer 1 month ago
Modular rooflight.
Application
A roof light series for sloped, shed or saw tooth roofs. For commercial and public buildings.
Description
The system consists of prefabricated modular skylights, including profiles, panes, flashings, control systems for natural and smoke ventilation and roller blinds.
Similar to Long lights, North lights are bands of VELUX modular skylights.
Features and benefits:
- Framing material ensures very low U-value.
- Complete daylight and ventilation control.
- Superior environmental profile compared to aluminium rooflights.
- Slim profiles and flush exterior surface provide an elegant appearance.
- Integrated chain actuator creates an identical look for fixed and venting modules.
- Internal blinds complete the interior with a 'free-floating' design.
- The characteristic upright design is primarily for installations that are directed towards the northern hemisphere for soft and reflected lighting.
- North lights are ideal for galleries and museums as well as schools, offices and industrial facilities, where direct glare is unwanted. North light installations are applicable for pitch of 25–90°.
Operation:
Rooflights can be fixed, or openable to provide ventilation or smoke venting. Opening rooflights are operated by a chain actuator, concealed behind the bottom profile.
General information
Color | Grey White Black |
Finish | Powder-coated Lacquered |
Material | Aluminium Composite Guidance for specification option: (80% Fibreglass / 20% Polyurethane). |
Shape | Rectangle |
Length | 1200 mm 1400 mm 1600 mm 1800 mm 2000 mm |
Width | 675 mm 750 mm 800 mm 900 mm 1000 mm |
Warranty description | Ten year Guidance for specification option: On modules and flashings |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights
Form | Northlight modular skylight. |
Size | 675 x 1200 mm.675 x 1400 mm.675 x 1600 mm.675 x 1800 mm.675 x 2000 mm.675 x 2200 mm.675 x 2400 mm.750 x 1200 mm.750 x 1400 mm.750 x 1600 mm.750 x 1800 mm.750 x 2000 mm.750 x 2200 mm.750 x 2400 mm.800 x 1200 mm.800 x 1400 mm.800 x 1600 mm.800 x 1800 mm.800 x 2000 mm800 x 2200 mm.800 x 2400 mm.Guidance for specification option: Not available with triple glazed smoke ventilation modules. 900 x 1200 mm.900 x 1400 mm.900 x 1600 mm.900 x 1800 mm.900 x 2000 mm.900 x 2200 mm.Guidance for specification option: Not available with triple glazed smoke ventilation modules. 900 x 2400 mm.Guidance for specification option: Not available with smoke ventilation modules. 1000 x 1200 mm.1000 x 1400 mm.1000 x 1600 mm.1000 x 1800 mm.1000 x 2000 mm.Guidance for specification option: Not available with triple glazed smoke ventilation modules. 1000 x 2200 mm.Guidance for specification option: Not available with smoke ventilation modules. 1000 x 2400 mm.Guidance for specification option: Not available with smoke ventilation modules. 900 x 2600 mm.Guidance for specification option: Fixed modules only. 900 x 2800 mm.Guidance for specification option: Fixed modules only. 1000 x 2600 mm.Guidance for specification option: Fixed modules only. 1000 x 2800 mm.Guidance for specification option: Fixed modules only. 1000 x 3000 mm.Guidance for specification option: Fixed modules only. |
Product performance | |
Fire performance | |
Fire resistance | To EN 1365-2 / EN 13501-2 + A1. |
Reaction to fire | To EN ISO 11925-2 / EN 13823, Class B. |
Whole window U-value | 1.1 W/m²K / 1.4 W/m²K.Guidance for specification option: Double glazed 0.7 W/m²K / 1.0 W/m²K.Guidance for specification option: Triple glazed |
Frame | |
Material | Aluminium. |
Finish | |
Coating | Scratch-resistant powder lacquer. |
Colour | White.Guidance for specification option: Inside surface / Granite grey – cladding |
Film thickness (minimum) | 40 μm. |
Glazing or infill | |
Type | Mono-pitched toughened outer glass and laminated inner safety glass solution. |
Construction | Double glazed.Triple glazed. |
Colour | Not required.Grey (4083).White (4084).Black (4085).White, fire resistant (4094). |
Coating | Not required.Low E coating.Sun 1.Guidance for specification option: light sun protection Sun 2.Guidance for specification option: advanced sun protection |
Integral kerb | Timber with metal plate.Guidance for specification option: not suitable for Ridgelight or Atrium Ridgelight Structural steel.Concrete with metal plate. |
Operation | |
Type | HFC, Fixed.HVC, Smoke ventilation.HVC, Natural ventilation. |
Control | Not required.Chain actuator. |
Accessories | Not required.Control Unit (KLC 400).Control Pad (KLR 200).Rain and wind sensor set (KLA S105).Control Switch (KLI 110). |
Execution | Installation of framed rooflights. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Denmark |
Material | Aluminium Composite Guidance for specification option: (80% Fibreglass / 20% Polyurethane). |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | kg CO₂ eq/m² Self declared Guidance for specification option: Meets BRE EN 15804:2012+A1:2012 |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 4 |
 ARCHICAD | - | 1 |
Literature
VELUX Modular Skylights
Case studies
Trumpington Community College
Tullibody South Campus
Vitsoe HQ
North East Futures University Technical College
