VOLSEAL® 250 - Elastic waterproof coating
Verified by manufacturer 24 days ago
A cementitious flexible waterproofing coating.
Application

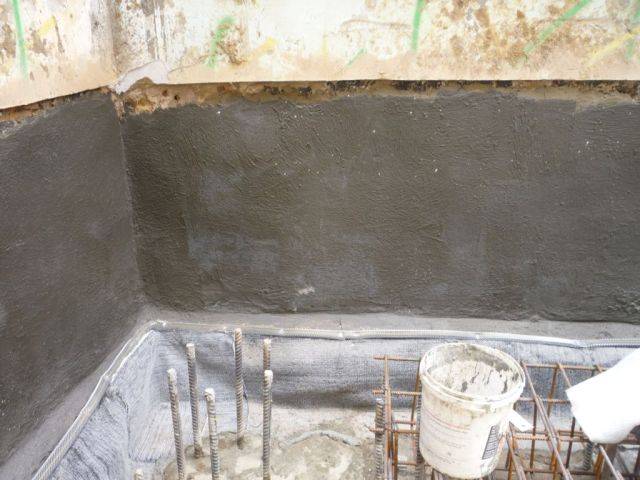

Suitable for waterproofing structures that are subjected to negative hydrostatic pressure and typically constructed of reinforced concrete, masonry block and brickwork.
Typical waterproofing applications include:
- Lift pits.
- Tanks.
- Existing cellars.
- Basements.
VOLSEAL 250 is not designed for use as waterproofing membrane for plaza/ podium decks or green roofs.
Description
A highly elastic waterproof coating consisting of aggregates, cement-based binders and acrylic polymers. Once cured, it forms an an impervious and elastomeric barrier with crack-bridging properties of up to 0.8 mm in width.
Features and benefits:
- Excellent adhesion properties to concrete, masonry block and brickwork, and can be applied to green concrete.
- VOLSEAL 250 is a two component material with a mixing ratio of 2.5 parts powder (Part A) to 1 part liquid (Part B).
- Not designed for waterproofing structures subject to positive hydrostatic pressure.
- Not designed for use as waterproofing membrane for plaza/ podium decks or green roofs.
- Do not apply more than 4 mm total thickness.
- Do not apply VOLSEAL 250 to bitumen or asphalt.
General information
Color | Grey White |
Material | Acrylic Guidance for specification option: Polymers. Stone Guidance for specification option: Aggregates. Cement Guidance for specification option: Cement-based binders. |
Shape | Formless Guidance for specification option: Two parts, powder and liquid. |
Uniclass | |
CAWS | J30/10 Cold-applied damp-proofing J30/110 Cold-applied tanking J30/130 Cold-applied damp-proofing |
Specification data - Cementitious tanking mortars
Classification data | |
Colour | Grey powder, white latex. |
Application temperature | 5-40°C. |
Application thickness | 4 mm (maximum). Guidance for specification option: Consult manufacturer and insert requirement. |
Coverage per coat | First coat: 1.7-2.0 kg/m², Second coat: 1.5-2.0 kg/m². Guidance for specification option:
|
Pot life - 20 °C | 20 minutes. |
Working temperature | –5°C to +50°C. |
Specific weight | >1.7 kg/L. |
Mix | Part A/ Part B mixing ratio – 2.5:1. |
Bond strength | ≥0.8 MPa to UNI EN 1542. Guidance for specification option: Data obtained in laboratory conditions at +20°C and 60% RH. |
Ageing | Resistance to accelerated ageing: No swelling to UNI EN 1062-11. Guidance for specification option: Data obtained in laboratory conditions at +20°C and 60% RH. |
Capillary absorption | ≥0.05 kg/m² x h^–0.5 to UNI EN 1062-3. Guidance for specification option: Data obtained in laboratory conditions at +20°C and 60% RH. |
Water vapour permeability | S≤10 m to UNI EN 7783-2. Guidance for specification option: Equivalent thickness: S. |
Crack bridging | >0.75 mm to UNI EN 14891 and Method A.8.2. Guidance for specification option: Data obtained in laboratory conditions at +20°C and 60% RH. |
Adhesion | >0.7 N/mm² (initial) to UNI EN 14891, Method A.6.2 and A.6.3. Guidance for specification option: Adhesion to wall initial value after immersion in water. Manufacturer guidanceData obtained in laboratory conditions at +20°C and 60% RH. |
Seal | Hydraulic seal on 1 mm cracks: 100 kPa (no water infiltration after 7 days) to UNI EN 14891 Method A.8.2. Guidance for specification option: Data obtained in laboratory conditions at +20°C and 60% RH. |
Liquid waterproofing | 100 kPa (no water infiltration after 7 days) to UNI EN 14891 Method A.7. Guidance for specification option: Data obtained in laboratory conditions at +20°C and 60% RH. |
WaterImpermeability | Impermeability in negative pressure: 150 kPa, 50 kPa with a 0.4 mm cracked surface (pass or non-pass internal test method). Guidance for specification option: Data obtained in laboratory conditions at +20°C and 60% RH. |
TensileStrength | 1.14 MPa to DIN 53455. Guidance for specification option: Data obtained in laboratory conditions at +20°C and 60% RH. |
Elongation at break | 47% to DIN 53455. Guidance for specification option: Data obtained in laboratory conditions at +20°C and 60% RH. |
Sustainability data
Material | Acrylic Guidance for specification option: Polymers. Stone Guidance for specification option: Aggregates. Cement Guidance for specification option: Cement-based binders. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
VOLSEAL® 250 - CEMENTITIOUS FLEXIBLE WATERPROOFING COATING
