VortX Shower Drains
Verified by manufacturer 1 day ago
Shower Drain Kit: Horizontal Drain and Circular Grating
Shower Drain Kit: Horizontal Drain and Circular Grating

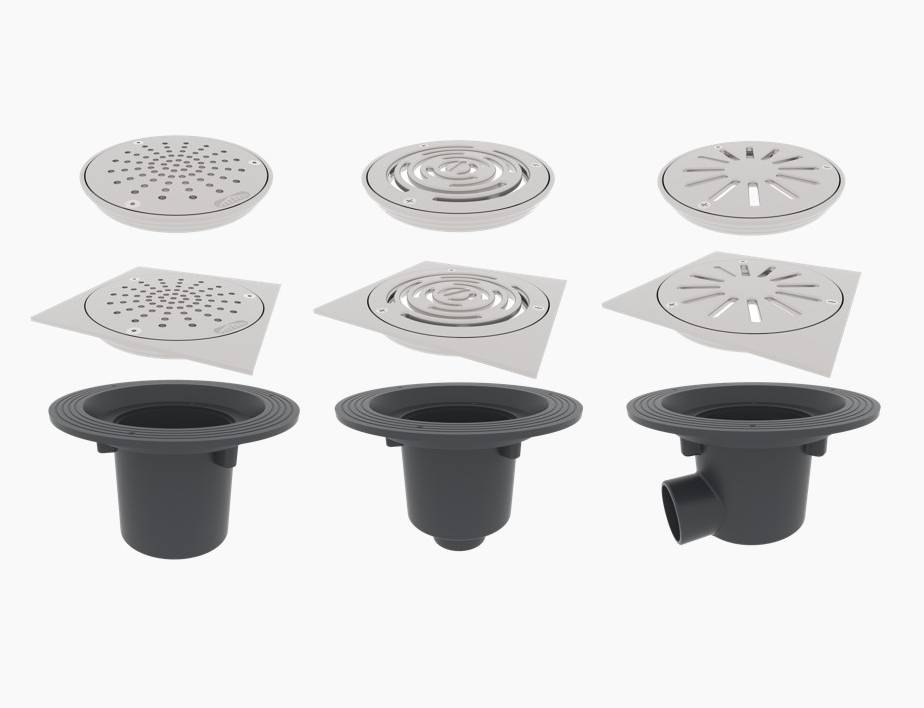

Robust cast iron shower gullies in 100 mm and 50 mm with a range of stainless-steel gratings.
Application
Suitable applications:
- Commercial, public and residential buildings.
- Solid or suspended floors.
- Tiled or flexible sheet floor membranes.
- Anti-ligature gratings for incarceration areas i.e. prisons, etc.
Description
Robust cast iron shower gullies in 100 mm and 50 mm with a range of stainless-steel gratings to suit most types of solid or suspended floor construction.
Features and benefits:
- Vertical and horizontal shower gullies 100 mm and 50 mm.
- Cast iron grey epoxy-coated.
- 50 mm removable bottle trap with twist and lock mechanism.
- Stainless-steel gratings.
- Robust cast iron solutions.
- Available in kit format.
- Cost effective with other materials.
- Simplified range.
General information
Color | Grey Silver |
Finish | Epoxy |
Material | Cast iron Stainless steel |
Shape | Circle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | R11/5 Floor drains R11/315 Floor drains |
SKU Code | VX-S261, VX-F400, VX-S270 |
Specification data - Floor gullies
Classification data | |
Properties | |
Body | |
Configuration | Bottle trap. Guidance for specification option:
|
Material | Cast iron. |
Cover or grating | |
Cover or grating type | 150 mm circular grating. Guidance for specification option:
|
Material | Stainless steel. |
Finish | Standard finish. |
Outlet | Horizontal one-part fixed. Guidance for specification option:
|
Load class (minimum) | K 3. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 97%. |
Integral accessories | Not required. Stainless steel filter basket. Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Material | Cast iron Stainless steel |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 97 % |
Expected Life | 60 year |
