Wade Vari-Level (QG Series) Stainless Steel Gullies
Verified by manufacturer 28 days ago
QG114
QG114
UKAS
Certificate type
Range of Stainless Steel Gullies With 4" NPSM Grating Connection
Application
The term Vari-Level refers to the fine adjustability of the height of a grating or access cover above a body; this feature enables installation exactly at finished floor level by rotating the grating or access cover.
Description

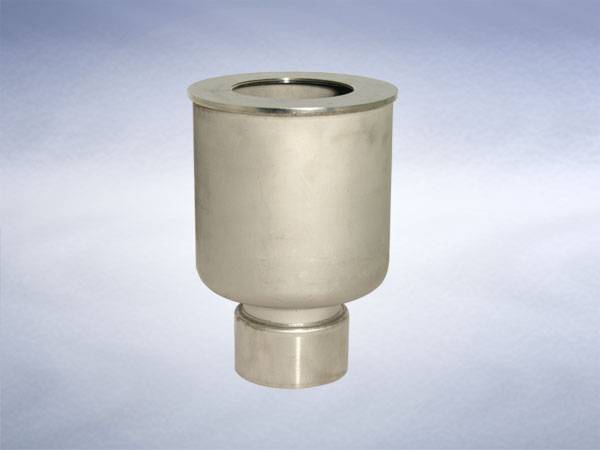

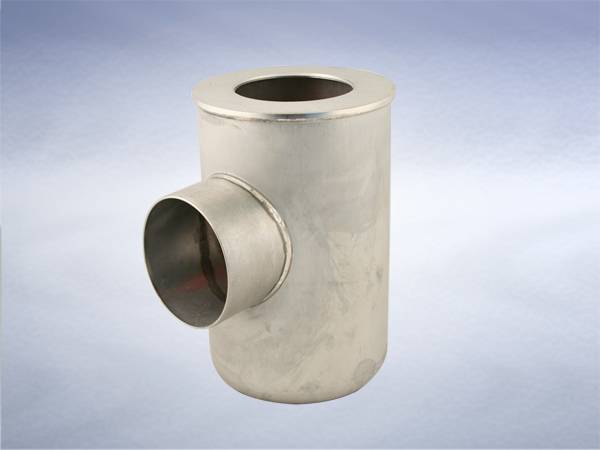

A Vari-Level gully comprises, as a minimum, a Vari-Level body and a Vari-Level grating; in some versions these items fit together directly, but, mostly, connection is by means of an inter-connecting, dual-purpose part – a membrane clamping collar. To address a myriad of applications, different versions of Vari-Level bodies are available for use with a wide range of Vari-Level gratings, Vari-Level access covers and Vari Level accessories.
General information
Material | Stainless steel |
Uniclass | |
CAWS | R11/5 Floor drains R11/315 Floor drains |
Product range |
Specification data - Floor gullies
Standard | To BS EN 1253-1. |
Body | |
Configuration | Bell Trapped. |
Material | Stainless Steel, 1.4031 (304) grade.Stainless Steel, 1.4401 (316) grade. |
Outlet | Non-Trapped. |
Load class (minimum) | Dependent on Grating. |
Integral accessories | Backwater Valve.Bottle Trap.Clamping Collar.Filter Bucket.Outlet Plug.Side Inlets.Weepholes. |
Outlet size | 100 mm. |
Sustainability data
Contains Red List materials | No |
Material | Stainless steel |
Recyclability | 100% Recyclable |
Expected Life | 50 year |
Third party certifications
UKAS
ISO 9001 - Halstead Site
Literature
Wade Floor Gullies and Access Covers
