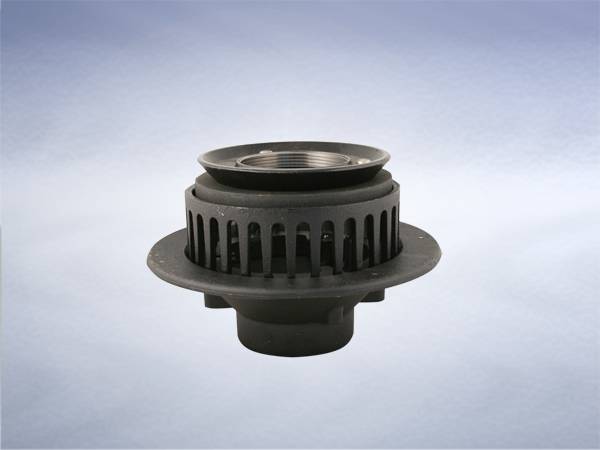

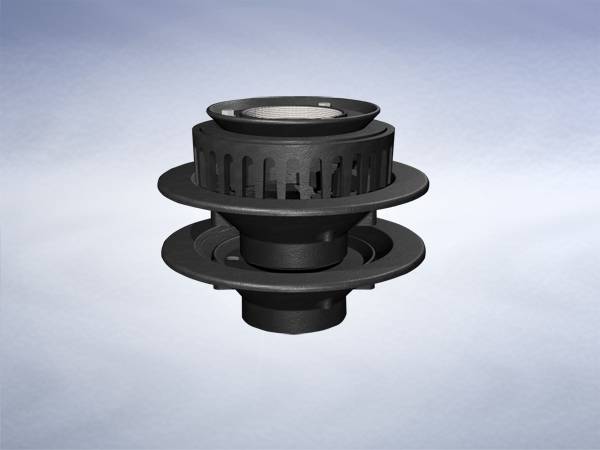

Wade Vari-Level (SD Series) Cast Iron Gullies
Verified by manufacturer 27 days ago
SD102
SD102
UKAS
Certificate type
Range of Cast Iron Gullies With 4" NPSM Grating Connection
Application
The term Vari-Level refers to the fine adjustability of the height of a grating or access cover above a body; this feature enables installation exactly at finished floor level by rotating the grating or access cover.
Description
A Vari-Level gully comprises, as a minimum, a Vari-Level body and a Vari-Level grating; in some versions these items fit together directly, but, mostly, connection is by means of an inter-connecting, dual-purpose part – a membrane clamping collar. To address a myriad of applications, different versions of Vari-Level bodies are available for use with a wide range of Vari-Level gratings, Vari-Level access covers and Vari Level accessories, as illustrated in this section.
General information
Material | Cast iron |
Shape | Circle |
Length | 50 mm 75 mm 80 mm 100 mm |
Width | 50 mm 75 mm 80 mm 100 mm |
Uniclass | |
CAWS | R11/5 Floor drains R11/315 Floor drains |
Product range |
Specification data - Floor gullies
Standard | To BS EN 1253-1. |
Body | |
Configuration | Non-trapped.Guidance for specification option: Sub-surface drainage. |
Material | Cast iron to BS EN 1561. |
Outlet | Non-Trapped. |
Load class (minimum) | Dependent on Grating. |
Integral accessories | Backwater Valve.Bottle Trap.Clamping Collar.Filter Bucket.Outlet Plug.Side Inlets.Weepholes. |
Outlet size | 50 mm (2" BSP). |
Weight | 11.8 kg. |
Sustainability data
Contains Red List materials | No |
Material | Cast iron |
Recyclability | 100% Recyclable |
Expected Life | 60 year |
Third party certifications
UKAS
ISO 9001 - Halstead Site
Literature
Wade Floor Gullies and Access Covers
