Wallace 580 1TH Wash Basin Wall Hung
Verified by manufacturer 13 days ago
Wallace 580 1TH Wall Hung with White Drawers 4613.580. PWDR.2.WH
Wallace 580 1TH Wall Hung with White Drawers 4613.580. PWDR.2.WH
Wash basin with unit.
Application
Bathroom applications.
Description

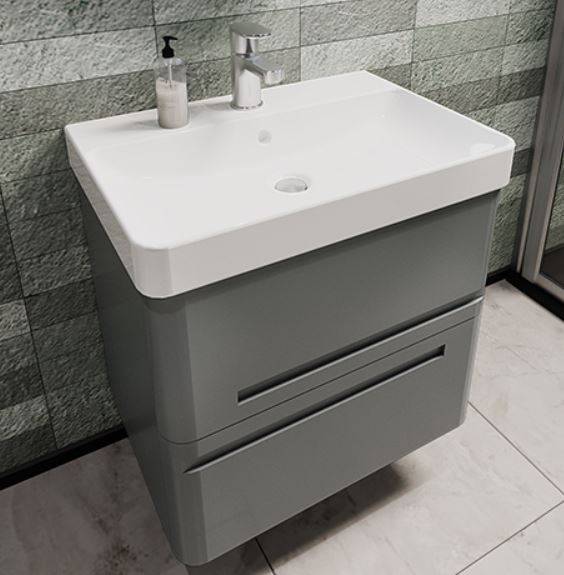

Wash basin with wall hung two drawer unit.
General information
Color | White Grey |
Finish | Gloss Matt |
Material | Porcelain Medium density fibreboard (MDF) |
Shape | Rectangle |
Length | 410 mm |
Width | 580 mm |
Height | 570 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N10/145 Vanity and washroom furniture N13/30 Washbasins N13/335 Washbasins |
SKU Code | 4602.580.1, 4613.580.PWDR.2.WH, 4613.580.PWDR.2.GR |
Specification data - Wall-hung washbasins
Form | Vanity top (inset). |
Materials | |
Body | Porcelain. |
Finish and colour | Euro white. |
Size | 580 x 410 x 570 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred. |
Overflow | Rear overflow hole. |
Waste | Bottom waste outlet. Chainstay hole. |
Integral accessories | 4613.580. PWDR.2.WH - Drawer unit. |
Material | Medium density fibreboard (MDF). Guidance for specification option: Unit. |
Colour | Euro white. |
Unit finish | Gloss. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
4613.450.PWDR
4602.580.1-4613.580.PWDR.2.GR
4602.580.1-4613.580.PWDR.2.WH
