Washtrough for Schools (Cantilever Brackets)
Verified by manufacturer 1 day ago
Wall Mounted Taps
Wall Mounted Taps

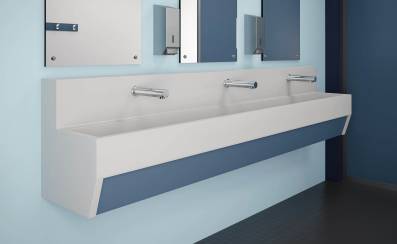

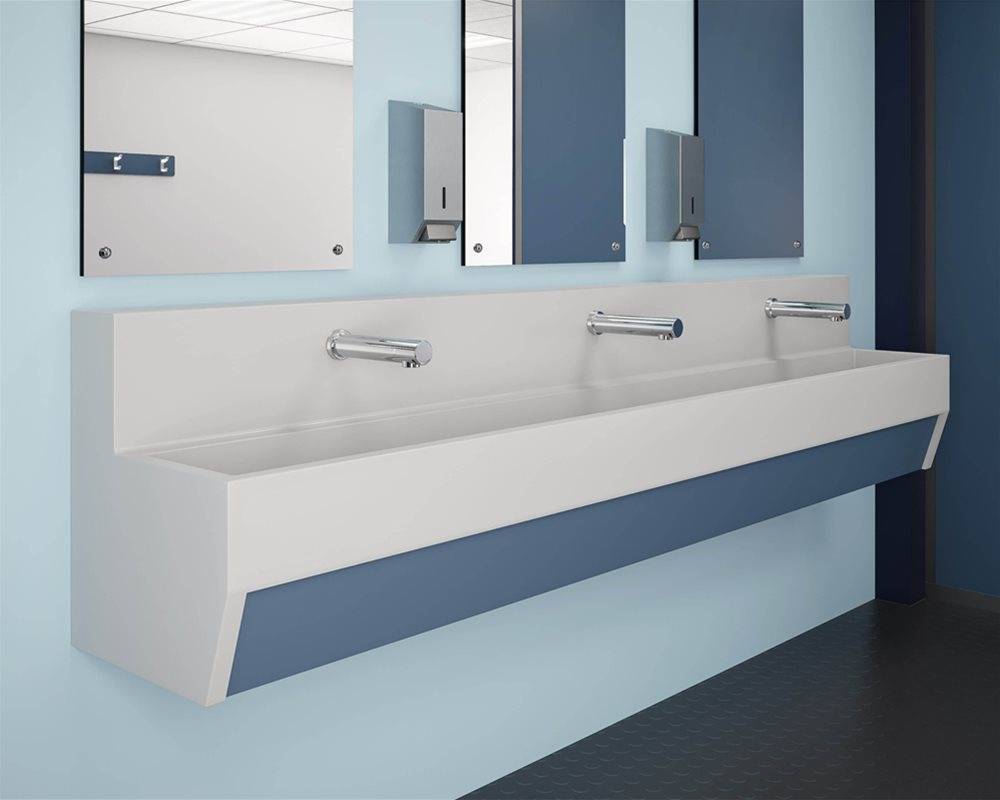

A DfE compliant, solid surface Washtrough for Schools with a compact depth for easy handwashing. Supplied with cantilever brackets for optimal hygiene.
Application
Suitable for school washrooms.
Description
The Washtrough for Schools with cantilever brackets features a floating design that enhances accessibility for thorough cleaning and keeps the floor area clear. Heights can be tailored to suit different school age groups.
It is produced using a thermoforming process, where the solid surface material is heated and moulded, resulting in a washtrough with minimal internal joints and enhances structural integrity and simplifies cleaning, maintenance and overall appearance.
Features and benefits:
- Department for Education compliant.
- Contemporary design.
- Designed with a compact depth to ensure ultimate hygiene.
- Minimal internal joints to reduce dirt build up.
- Enhanced structural integrity.
- Thermoformed washtrough.
- Produced as a solid surface trough with solid grade laminate access panel.
- Optional mounting taps and upstand.
- Choose from 12 standard solid surface finishes for the trough.
- Choose from 34 laminate colours for the access panel.
- Available in four different lip heights.
- Maximum length in one section: 2790 mm.
General information
Color | Other Manufacturer guidance12 Solid Surface finishes for the washtrough 34 laminate colours for the access panel |
Finish | Acrylic Matt Textured |
Material | Solid surface Solid grade laminate (SGL) |
Shape | Rectangle |
Length | Bespoke Guidance for specification option: Maximum length in one section: 2790mm |
Width | 400 mm |
Height | Bespoke Guidance for specification option: Cantilever brackets allow washtrough to be set to required height. Recommended DfE guidance (FFL): Secondary/Adult: 800mm Primary: 750mm Infant: 700mm Nursery: 500mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/346 Washing troughs |
Specification data - Wash troughs
Classification data | |
Form | Wall-mounted. |
Stations | Manufacturer guidanceThe number of stations is dependent on the chosen length; insert requirements. |
Materials | |
Body | Solid surface. |
Finish and colour | Manufacturer guidanceAvailable in 12 standard solid surface finishes. Consult manufacturer for details and insert requirements. |
Size | 800 x 400 mm. Guidance for specification option: Secondary/adult. 750 x 400 mm. Guidance for specification option: Primary. 700 x 400 mm. Guidance for specification option: Infant. 500 x 400 mm. Guidance for specification option: Nursery. Manufacturer guidanceLip height x bed depth. Downstand: 300 mm. |
Water supply, overflow and waste holes | |
Water supply | One tap hole in backplate at each user position. |
Overflow | None. |
Waste | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Integral accessories | Cantilever brackets. |
Integral upstands | 200 mm. |
Taps | Wall-mounted taps. |
Access panel | Solid grade laminate (SGL). Manufacturer guidanceAvailable in 34 laminate colours. Consult manufacturer for details and insert requirements. |
Length | Manufacturer guidanceMaximum length in one section: 2790 mm. Consult manufacturer for details and insert requirements. |
Sustainability data
Material | Solid surface Solid grade laminate (SGL) |
