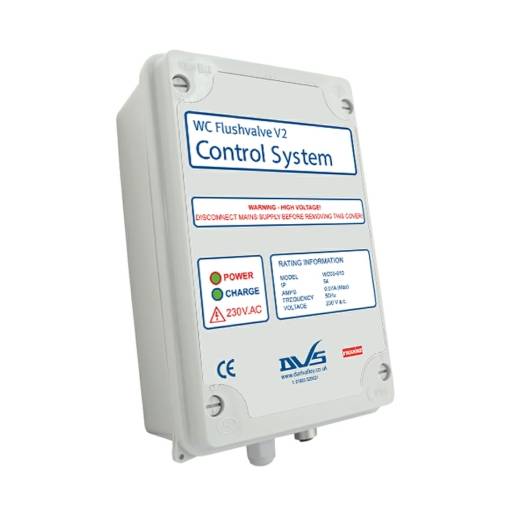

WC Flush Valve and Control Box

Verified by manufacturer over a year ago

WC01-022, valve only.

KWC DVS Limited Variant:

The DVS no-touch WC flushing system is an electronically operated drop valve which replaces the traditional syphon and delivers a measured volume of water from the cistern to the lavatory bowl.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

Suitable for commercial applications.

Description

Offering reduced water consumption, the optimum quantity of water from each flush is pre-set and accurately controlled. The easy to use no-touch WC flushing system is triggered by an electronic infrared sensor which is activated when the user’s hand comes within 50 mm of the sensor. The timer can be adjusted to any setting from 1–6 seconds, to deliver the optimum flush. With no handles to touch, the risk of cross infection is eliminated.


Features and benefits:

  • 4.5 litre flush.
  • Typical 30% savings on water costs.
  • Adjustable for optimum flush.
  • Improves flush.
  • Ideal for disabled or elderly.
  • Hygienic no-touch operation.
  • Optional tactile operation.
  • Easy to install and maintain.
  • Fits existing and new WCs.
  • Vandal proof.
  • Eliminates handle maintenance.
  • Dual flush.
  • Wave-on or fully automatic flush.
  • Lock outs (for custodial and mental health).
  • Increased ambient temperature (55ºC).
  • Purge facility.
  • Prison Flush Control Box - for Duct Mounting


System components:

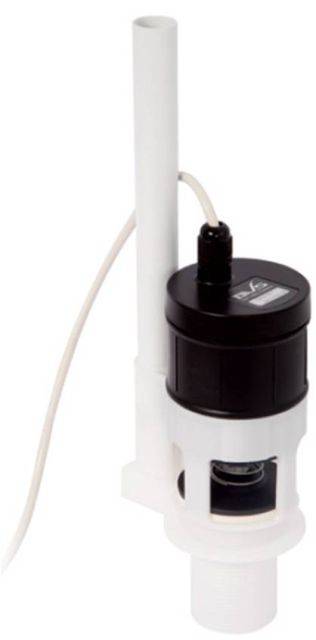

WC03-002 Standard WC Flushvalve kit with built in overflow and wave on sensor 1 1/2" base.

General information

Color

Grey

Finish

Semi-gloss

Material

Plastic

Shape

Rectangle

Length

185 mm

Width

120 mm

Height

75 mm

Warranty description

Five year

Uniclass

Pr_75_50_46_31 Flush control devicesPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

N13/311 Unisex accessible WC equipment packages (Document M)

Product range

WC Flushing

Specification data - Flush control devices

Standards

-

General

To BS EN 12541.

Third party certification

Water Regulations Advisory Scheme (WRAS) approved.

Flush volume

4.5 L.

Operation

Sensor.

Controller

Battery operated.

Mains operated.

Accessories

None.

WC00-022.

Guidance for specification option:

Full flush backplate.

WC00-023.

Guidance for specification option:

Half flush backplate.

WC00-025.

Guidance for specification option:

80 mm backplate.

WC01-021.

Guidance for specification option:

120 mm disabled backplate.

Manufacturer guidance

A wide range of component parts are available to complement the system; consult manufacturer's literature for details.

Options

None.

WC Fully Auto Flushvalve.

Guidance for specification option:

Can be mounted behind the toilet to detect a user for fully automatic flushing used in conjunction with a WC kit or retro-fitted later. If the user does not operate the manual flushing sensor the toilet will flush automatically a few seconds after they have left the toilet area.

Sensor

AC02-009.

Guidance for specification option:

38 mm chrome wave on sensor pack.

AC02-011.

Guidance for specification option:

38 mm chrome wave on sensor pack c/w DVS back plate.

AC02-040.

Guidance for specification option:

Anti-vandal wave-on sensor with 50 mm stainless steel bezel.

AC02-046.

Guidance for specification option:

Tactile switch with blue (cold) insert and 50 mm stainless steel bezel.

AC02-043.

Guidance for specification option:

Anti-vandal wave-on sensor c/w blue indication insert and 50 mm, 15 m.

Show more

Type

WC01-022, valve only.

Guidance for specification option:

1 1/2" base.

Dimensions

185 x 120 x 75 mm.
