wedi Fundo Substructure Element (Channel Drain) - support element for fundo channel drains

Name: wedi Fundo Substructure Element (Channel Drain) - support element for fundo channel drains
Brand: Wedi Systems (UK) Ltd
SKU: jijc4oApW9qGhe7LndTQAJ

Verified by manufacturer 1 month ago

Wedi Systems (UK) Ltd

Third party certifications:

BBA Agrément Certificate
Certificate type
EPD
Certificate type

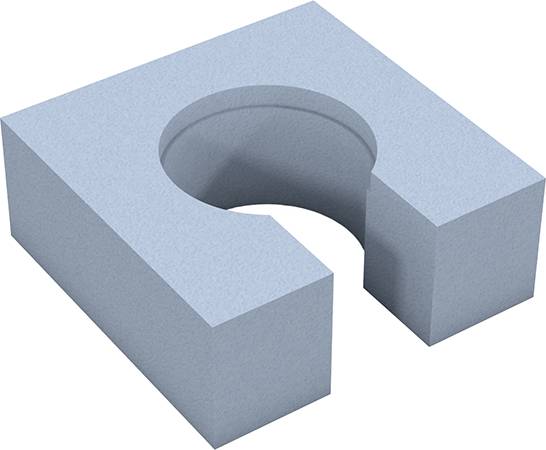

The wedi Fundo Substructure Element (Channel Drain) is a drain support block made from XPS, for use with wedi Fundo Channel Drains

Jump to:

BOS

+44 (0)161 864 2336 Website

Application

The wedi Fundo Substructure Element (Channel Drain) requires a solid substrate base to be placed on (timber or concrete).

Description

The wedi Fundo Substructure Element (Channel Drain) is a drain support block made from XPS. For secure and precise support for the drain body under the wedi Fundo shower tray.

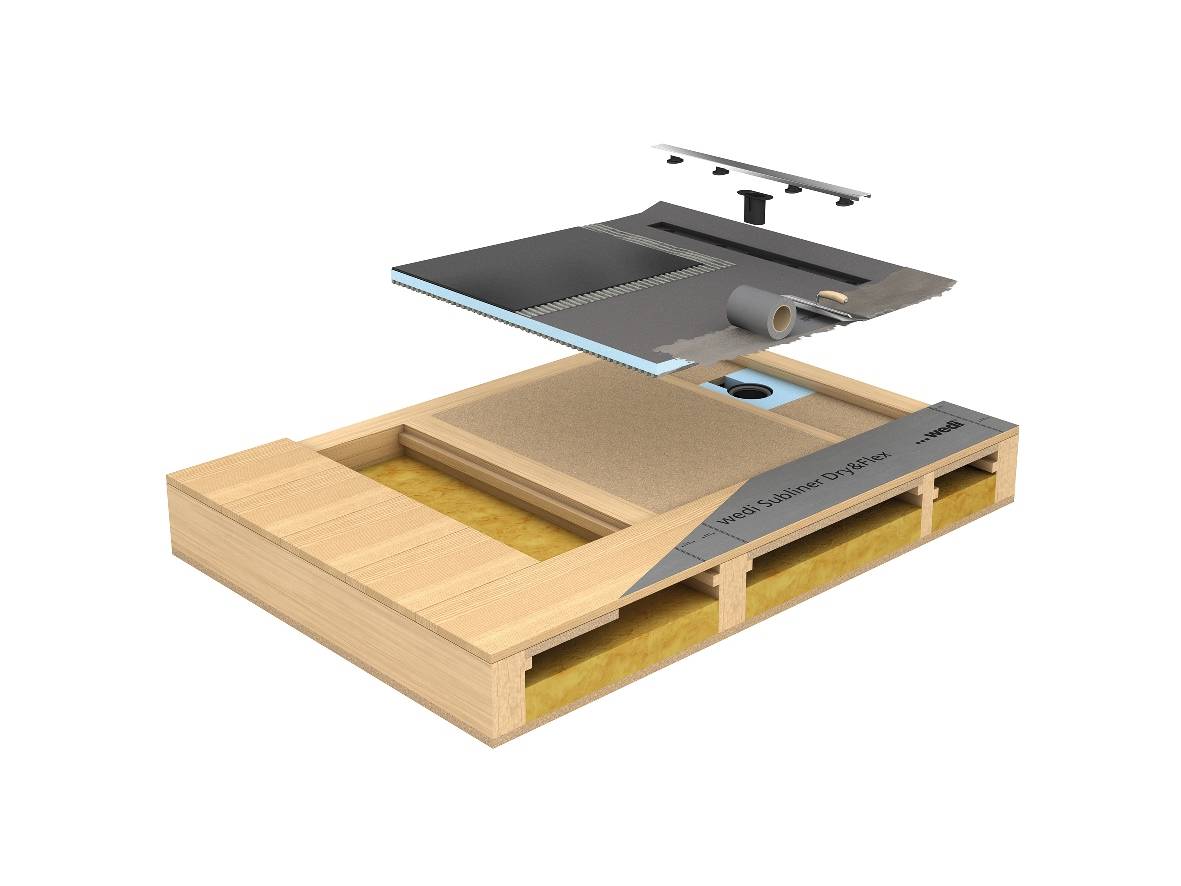

Particularly recommended for use in timber floors (e.g. for

installation of wedi Fundo RioLigno).

The wedi Fundo drain-substructure element is suitable for both DN50 and DN40 wedi Fundo Channel Drains.

It is not compatible with the wedi Fundo fire protection collar channel drain.

General information

Color	Blue
Finish	Unfinished
Material	High density extruded polystyrene (XPS)
Shape	Square
Size	- Manufacturer guidance 240 x 240 x 85 mm
Length	240 mm
Width	240 mm
Height	85 mm
Warranty description	Ten year

Uniclass	Pr_40_20_06_84 Shower traysPrimary
CAWS	N13/375 Shower units N13/40 Shower units

Product range	Shower Systems / Substructure (drain support)

Specification data - Shower trays

Form	Channel drain mount.
Materials	-
Body	Manufacturer's standard. Guidance for specification option: Technical characteristics: BS150 (bending strength): ≥150 kPa. DS(N)5 (dimensional stability in normal climate): ±0.5% (at 23°C, 50% relative humidity). DLT(1)5 (strain at defined levels of compressive and temperature load): ≤5% (at 20 kPa of stress, 80°C ±1.48 h ±1). Long-term performance under compressive stress (expected compression after 50 years ≤2%): ≤3000 kg/m². Building material class according to DIN 4102: B1 (tested in a fire shaft in a vertical position).
Size	240 x 240 mm. Guidance for specification option: Width x length; 82 mm deep.
Waste hole	65 mm. Guidance for specification option: Gap width for horizontal drain; consult manufacturer for further details.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Recyclability	fully recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	25 %
