wedi Fundo Substructure Element (Point Drain) - support element for DN50 point drains

Name: wedi Fundo Substructure Element (Point Drain) - support element for DN50 point drains
Brand: Wedi Systems (UK) Ltd
SKU: s1XKgKSi3MeehgRUkuQsNT

Verified by manufacturer 1 month ago

Wedi Systems (UK) Ltd

Third party certifications:

BBA Agrément Certificate
Certificate type
EPD
Certificate type

The wedi Fundo Substructure Element (Point Drain) is a drain support block made from XPS, for use with wedi Fundo DN50 Point Drains

Jump to:

BOS

+44 (0)161 864 2336 Website

Application

The wedi Fundo Substructure Element (Point Drain) requires a solid substrate base to be placed on (timber or concrete).

Description

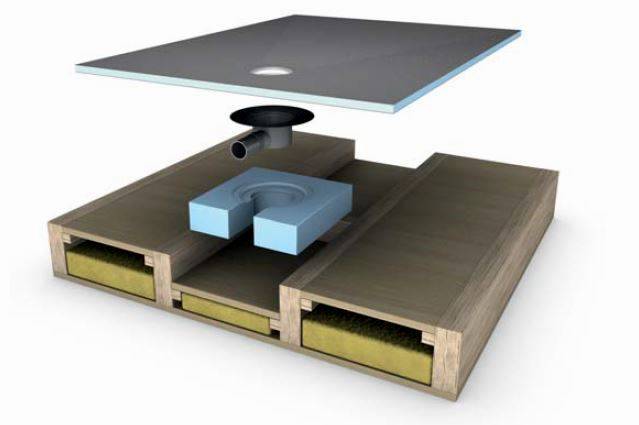

The wedi Fundo Substructure Element (Point Drain) is a drain support block made from XPS. For secure and precise support for the drain body under the wedi Fundo tray.

Particularly recommended for use in timber floors (e.g. for

installation of wedi Fundo Ligno).

The wedi Fundo drain-substructure element is for DN50 wedi Fundo Point Drains only. It is not compatible with the DN40 wedi Fundo Mini Max drain or wedi Fundo fire protection collar point drain.

General information

Color	Blue
Finish	Unfinished
Material	High density extruded polystyrene (XPS)
Shape	Square
Size	- Manufacturer guidance 338 x 338 x 82 mm
Length	338 mm
Width	338 mm
Height	82 mm
Warranty description	Ten year

Uniclass	Pr_40_20_06_84 Shower traysPrimary
CAWS	N13/375 Shower units N13/40 Shower units

Product range	Shower Systems / Substructure (drain support)

Specification data - Shower trays

Form	Point drain mount.
Materials	-
Body	Manufacturer's standard. Guidance for specification option: Technical characteristics: BS150 (bending strength): ≥150 kPa. DS(N)5 (dimensional stability in normal climate): ±0.5% (at 23°C, 50% relative humidity). DLT(1)5 (strain at defined levels of compressive and temperature load): ≤5% (at 20 kPa of stress, 80°C ±1.48 h ±1). Long-term performance under compressive stress (expected compression after 50 years ≤2%): ≤3000 kg/m². Building material class according to DIN 4102: B1 (tested in a fire shaft in a vertical position).
Size	338 x 338 mm. Guidance for specification option: Length x width; 82 mm deep.
Waste hole	120 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Recyclability	fully recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	25 %
