wedi Sanoasa Comoda Bench Element

Verified by manufacturer 1 month ago

076447015-wedi Sanoasa Comoda, bench element, slope to front

Wedi Systems (UK) Ltd Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

Benches consisting of a support and a bench element, whereby the bench element consists of a seat and a backrest.

Jump to:
BOS
+44 (0)161 864 2336 Website

Application

Suitable for both the public and private bathrooms.

Description

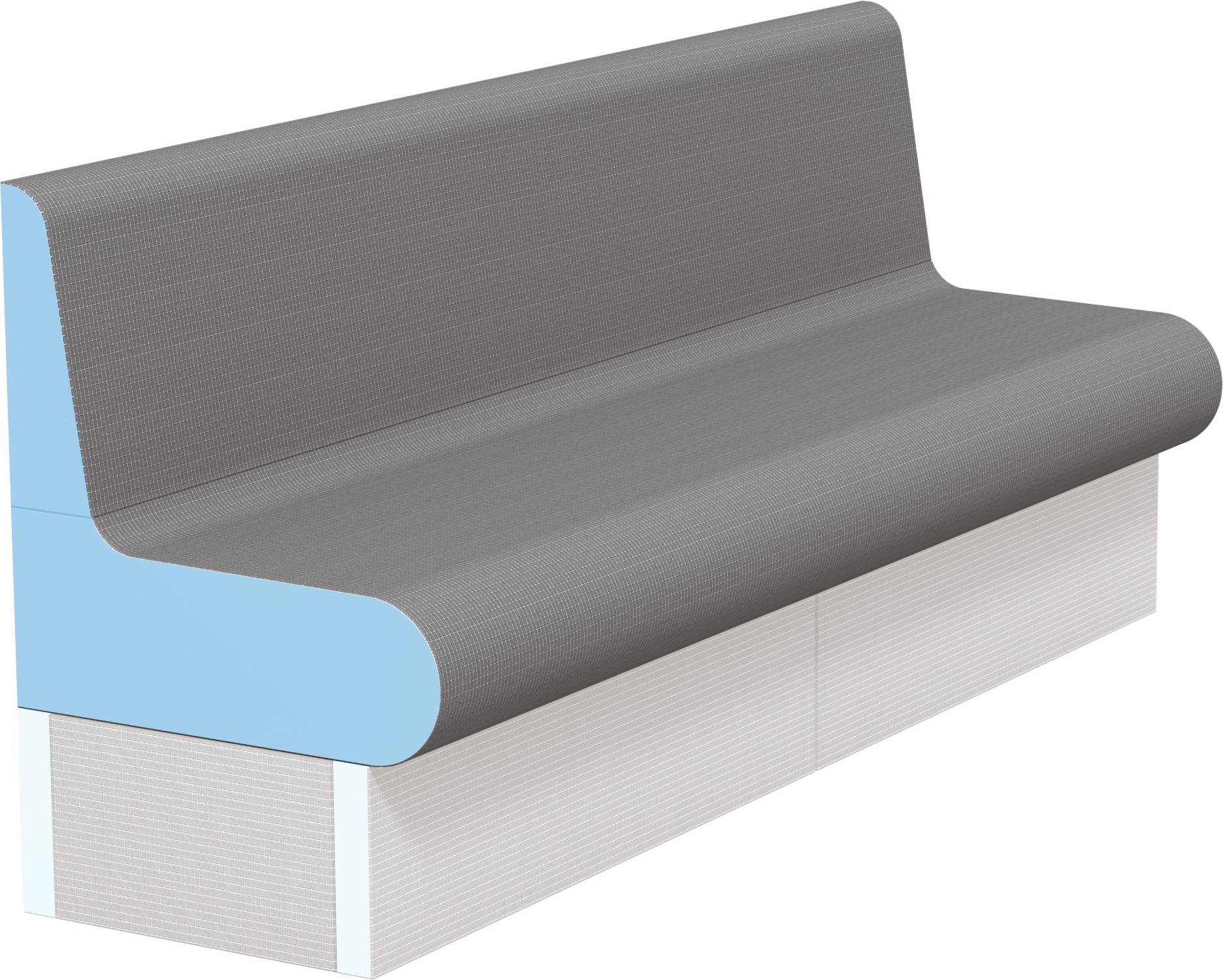

Sanoasa Comoda benches consist of a support and a bench element, whereby the bench element consists of a seat and a backrest.


Features and benefits:

  • Sanoasa Comoda benches are available in various designs, and can be built into almost any seating combination.
  • The Comoda series is characterised by the rounded front side of the carrier element.
  • Available as benches, corner constructions or clean end solutions, and can be individually tiled.
  • The bench element is supplied in two parts, a back rest and a seat. Each bench element (2000 mm) requires two carrier elements.
  • The Sanoasa Comoda corner elements can only be supplied with the downwards-running substructure.
  • The Sanoasa Comoda armrest can be installed equally on the right or the left using wedi 610 adhesive sealant.
  • This makes them particularly suitable for seamless, flush fitting against walls (using wedi building board).

General information

Color

Grey

Finish

Cement

Material

High density extruded polystyrene (XPS)

Guidance for specification option:

A waterproof extruded polystyrene rigid foam core with a special, resistant and glass fibre reinforced cement coating

Shape

Other

Size

-

Manufacturer guidance

Length

Length

1000 mm

2000 mm

Width

600 mm

Height

870 mm

Warranty description

Ten year

Manufacturer guidance

Available on request

Uniclass

Pr_40_20_06_83 Shower seatsPrimary

CAWS

N13/40 Shower units

N13/448 Seats

Product range

Design Line / Benches & Loungers

Specification data - Shower seats

Materials

-

Frame

Extruded polystyrene rigid foam core and glass fibre reinforced cement coating.

Integral accessories

None.

wedi 320 tile adhesive.

wedi 610 – adhesive sealant.

Guidance for specification option:

One cartridge required per 1000 mm bench.

wedi tools joint reinforcement tape.

Guidance for specification option:

Required to reinforce joints.

wedi tools sealing tape.

Dimensions

1000 mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Germany

Recyclability

XPS core is recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

25 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

2

IFC
-

2

Third party certifications

EPD

EPD

Environmental Product Declaration (EPD) - wedi Building Boards

Literature

2019 Product Brochure

2019 Product Brochure

2022 wedi World of Systems brochure

2022 wedi World of Systems brochure

Bathroom Advice Brochure

Bathroom Advice Brochure

Bathroom Inspiration brochure

Bathroom Inspiration brochure

Cover design and construct

Cover design and construct

wedi at a glance 2022

wedi at a glance 2022
