wedi Wall Sealing Set - waterproof membrane set for walls

Verified by manufacturer 1 month ago

Wedi Systems (UK) Ltd Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Sealing set for protection of plasterboard cladding or plastered masonry, especially in wet areas.

Jump to:
+44 (0)161 864 2336 Website

Application

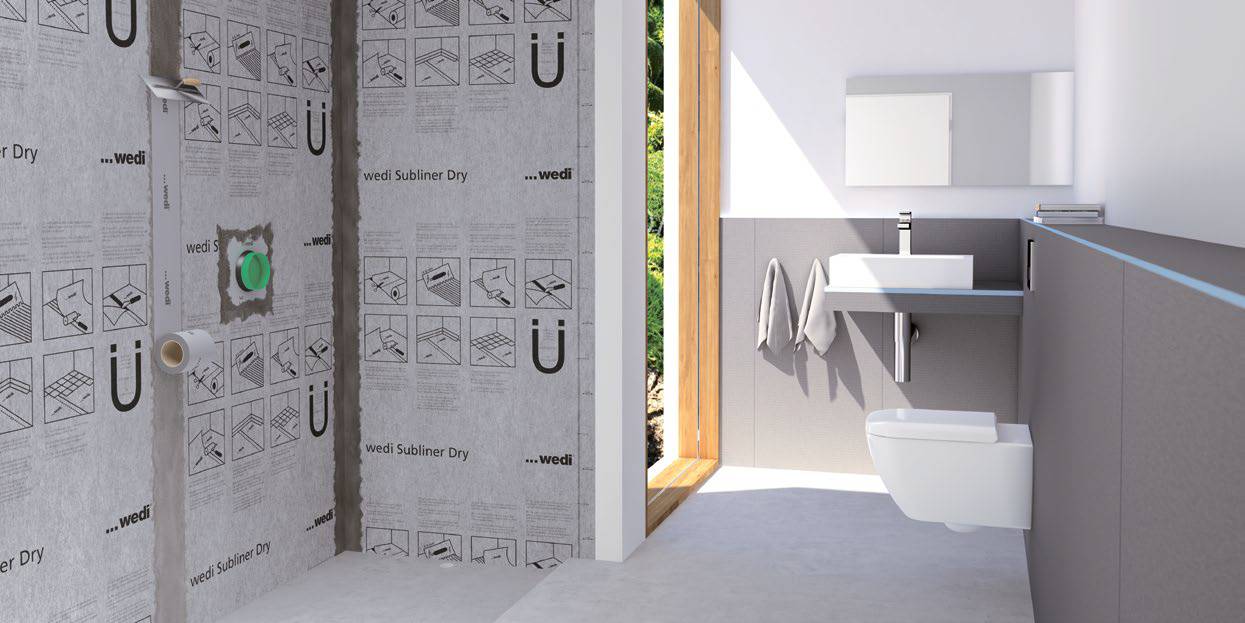

  • For moderately humid rooms of humidity class 0, A01, A02 acc. to ZDB data sheet such as domestic and hotel bathrooms.
  • Approved for heavy duty wet areas in stress classes A1, A2 and C such as shower facilities, areas around swimming pools, commercial kitchens and laundries.

Description

Sealing set for protection of plasterboard cladding or plastered masonry, especially in wet areas.

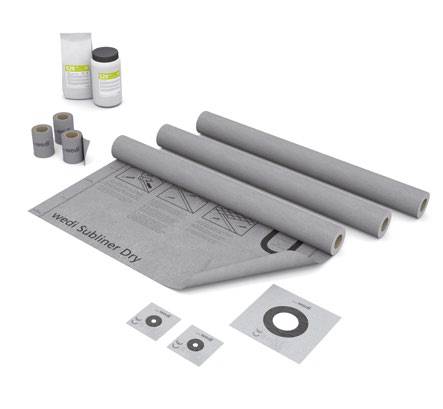

Each set comprises:

  • Three wedi Subliner Dry sealing membranes (2500 x 1000 mm);
  • Three wedi Tools sealing tapes (2500 x 120 mm);
  • One wedi Tools sealing gaiter, DN90–125;
  • Two wedi Tools sealing gaiters, ½–¾";
  • One pack of wedi 520 flexible sealant (3.6 kg).


Features and benefits (wedi Subliner Dry):

  • Alkaline resistant.
  • Can be used with hot water underfloor heating.
  • Easy processing.
  • Flexible and crack bridging.
  • High adhesive effect in combination with wedi laying materials.
  • High tear resistance.
  • Non-ageing and non-decomposable.
  • Waterproof and water vapour retarding.

General information

Color

Grey

Finish

Unfinished

Guidance for specification option:

To be tiled

Material

Fleece

Polyethylene

Shape

Rectangle

Size

-

Manufacturer guidance

Set containing:

  • 3 × wedi Subliner Dry sealing membrane, 250 × 100 cm
  • 3 × wedi Tools sealing tape, 250 × 12 cm
  • 2 × wedi Tools sealing gaiter 130 × 130 mm
  • 1 × wedi Tools sealing gaiter 250 × 250 mm
  • 1 × wedi 520 powder component, 2.4 kg
  • 1 × wedi 520 liquid component, 1.2 kg


Length

Bespoke

Guidance for specification option:

Set containing:

  • 3 × wedi Subliner Dry sealing membrane, 250 × 100 cm
  • 3 × wedi Tools sealing tape, 250 × 12 cm
  • 2 × wedi Tools sealing gaiter 130 × 130 mm
  • 1 × wedi Tools sealing gaiter 250 × 250 mm
  • 1 × wedi 520 powder component, 2.4 kg
  • 1 × wedi 520 liquid component, 1.2 kg


Manufacturer guidance

Set containing:

  • 3 × wedi Subliner Dry sealing membrane, 250 × 100 cm
  • 3 × wedi Tools sealing tape, 250 × 12 cm
  • 2 × wedi Tools sealing gaiter 130 × 130 mm
  • 1 × wedi Tools sealing gaiter 250 × 250 mm
  • 1 × wedi 520 powder component, 2.4 kg
  • 1 × wedi 520 liquid component, 1.2 kg


Width

Bespoke

Guidance for specification option:

Set containing:

  • 3 × wedi Subliner Dry sealing membrane, 250 × 100 cm
  • 3 × wedi Tools sealing tape, 250 × 12 cm
  • 2 × wedi Tools sealing gaiter 130 × 130 mm
  • 1 × wedi Tools sealing gaiter 250 × 250 mm
  • 1 × wedi 520 powder component, 2.4 kg
  • 1 × wedi 520 liquid component, 1.2 kg


Manufacturer guidance

Set containing:

  • 3 × wedi Subliner Dry sealing membrane, 250 × 100 cm
  • 3 × wedi Tools sealing tape, 250 × 12 cm
  • 2 × wedi Tools sealing gaiter 130 × 130 mm
  • 1 × wedi Tools sealing gaiter 250 × 250 mm
  • 1 × wedi 520 powder component, 2.4 kg
  • 1 × wedi 520 liquid component, 1.2 kg


Height

Bespoke

Guidance for specification option:

Set containing:

  • 3 × wedi Subliner Dry sealing membrane, 250 × 100 cm
  • 3 × wedi Tools sealing tape, 250 × 12 cm
  • 2 × wedi Tools sealing gaiter 130 × 130 mm
  • 1 × wedi Tools sealing gaiter 250 × 250 mm
  • 1 × wedi 520 powder component, 2.4 kg
  • 1 × wedi 520 liquid component, 1.2 kg


Manufacturer guidance

Set containing:

  • 3 × wedi Subliner Dry sealing membrane, 250 × 100 cm
  • 3 × wedi Tools sealing tape, 250 × 12 cm
  • 2 × wedi Tools sealing gaiter 130 × 130 mm
  • 1 × wedi Tools sealing gaiter 250 × 250 mm
  • 1 × wedi 520 powder component, 2.4 kg
  • 1 × wedi 520 liquid component, 1.2 kg


Warranty description

Ten year

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/12 Mosaic to

M40/120 Mosaic to

M40/5 Tiling to

Product range

Sealing and Decoupling membranes
Accessories / Sealing Sets

Specification data - Plastics sheets

Material

Dual-sided fleece-laminated polyethylene film.

Guidance for specification option:

wedi Subliner Dry.

Purpose

Waterproof membrane and sealing set.

Performance characteristics

-

Fire performance

To DIN 4102-1, B2.

Guidance for specification option:

wedi Subliner Dry.

Physical properties

-

Colour

Grey sheathed.

Guidance for specification option:

wedi Subliner Dry.

Weight (minimum)

298 g/m².

Guidance for specification option:

wedi Subliner Dry.

Dimensions

-

Thickness (minimum)

0.51 mm.

Guidance for specification option:

wedi Subliner Dry.

Width (minimum)

1 m.

Guidance for specification option:

wedi Subliner Dry.

Roll length (minimum)

2.5 m.

Guidance for specification option:

wedi Subliner Dry.

Accessories

None.

wedi 320 tile adhesive.

wedi Fundo sealing set.

wedi Tools cut protection tape.

wedi Tools butyl bathtub sealing tape.

Manufacturer guidance

Consult manufacturer for details.

Integral accessories

wedi Tools sealing tape; wedi Tools sealing gaiter, DN90–125;
wedi Tools sealing gaiters, ½–¾"; wedi 520 flexible sealant.

Guidance for specification option:

  • wedi Tools sealing tape: Three, 2500 x 120 mm;
  • wedi Tools sealing gaiter: One, DN90–125;
  • wedi Tools sealing gaiters: Two, ½–¾";
  • wedi 520 flexible sealant: One, 3.6 kg.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Third party certifications

European Technical Approval (ETA)

European Technical Approval (ETA)

ETA - 13/0385

BBA Agrément Certificate

BBA Agrément Certificate

BBA certificate 14/5126 wedi Fundo Shower Elements

BBA Agrément Certificate

BBA Agrément Certificate

BBA certificate 00/3675 wedi Building Boards
