Weed Membrane - Artificial grass
Verified by manufacturer 8 days ago
Weed membrane which acts as a weed suppressant and is installed between the finished groundwork and artificial grass.
Application
Suitable for installation between the finished groundwork and artificial grass. Can also used as a fixing material on roof installations with gravel/stone borders.
Description

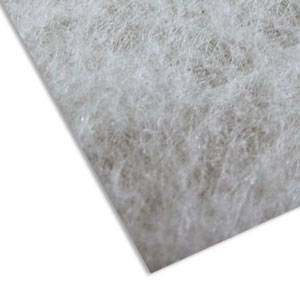

The Weed Membrane geotextile is made from polypropylene, stable fibre, thermally bonded non-woven geotextile used as a weed suppressant on artificial grass installations onto soil or stone.
Features and benefits:
- Height 1 mm +/- Width 4500 mm.
- Elongation to break: Longitudinal: 40%; Transverse: 45%.
- Tensile strength: 8 kN/m².
General information
Color | White |
Material | Polypropylene Guidance for specification option: Stable fibre, thermally bonded nonwoven geotextile. |
Shape | Rectangle |
Length | 100000 mm |
Width | 4500 mm |
Height | 1 mm |
Uniclass | |
CAWS | Q35/645 Weed control generally Q30/427 Weed suppression membrane Q31/305 Weed control Q26/350 Synthetic grass surfacing |
Specification data - Plastics sheets
Material | Polypropylene.Guidance for specification option: Polypropylene stable fibre, thermally bonded nonwoven geotextile. |
Purpose | Weed control layer. |
Performance characteristics | |
Tensile strength (minimum) | 8 kN/m². |
Elongation to break | Longitudinal: 40%; transverse: 45%. |
Form | Non-woven. |
Physical properties | |
Colour | White. |
Dimensions | |
Thickness (minimum) | 1 mm. |
Width (minimum) | 4500 mm. |
Roll length (minimum) | 100 m. |
Perforation | 34 mm. Manufacturer guidanceDynamic perforation. |
Puncture resistance | 1400 N. |
Roll length | 100 m. |
Water flow through geotextile | 110 L/m²/s; 2 kPa permeability: 100 x 10^-3 m/s. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 4 |
