Winterbourne Enclosed Shelter

Name: Winterbourne Enclosed Shelter
Brand: NBB Outdoors
SKU: 6Grfhb1pEiF35TtMDxhXYq

Verified by manufacturer 4 months ago

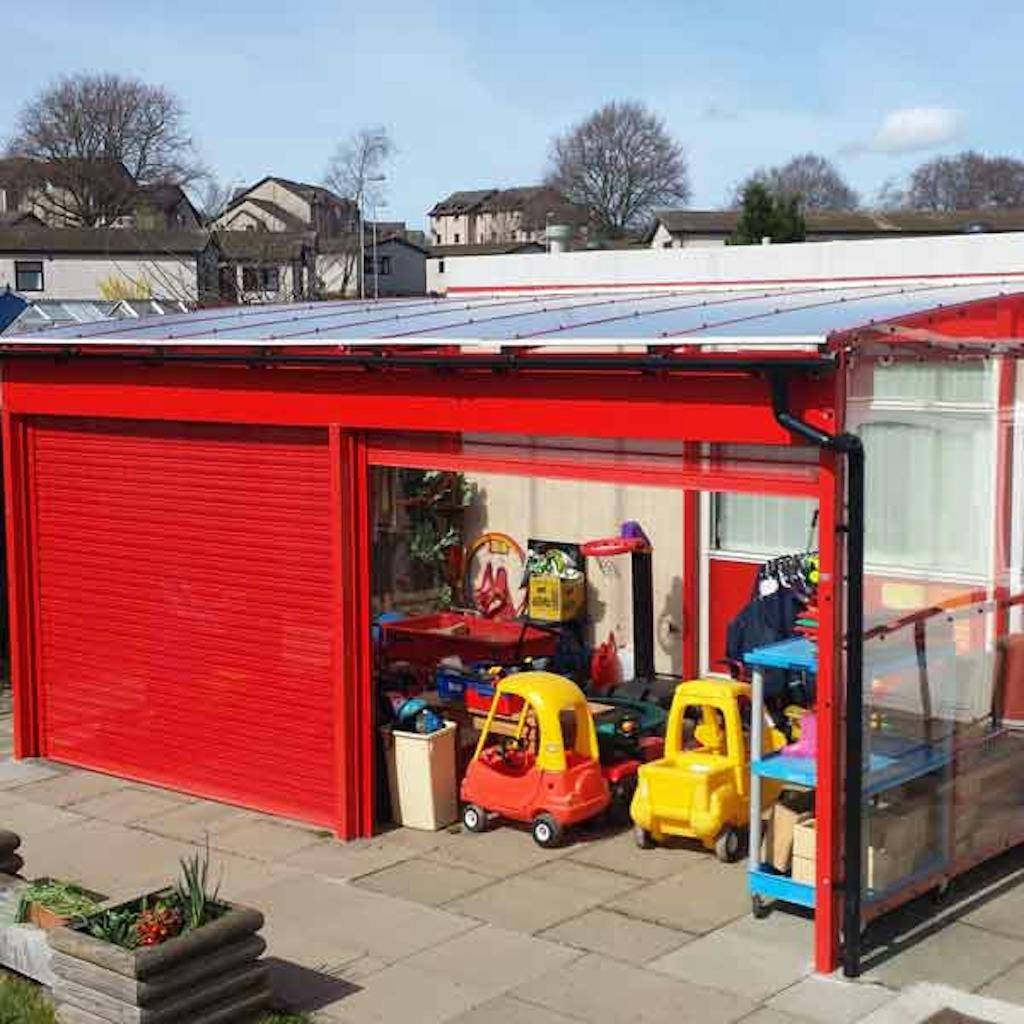

Winterbourne Shelter with Shutters

NBB Outdoors

Third party certifications:

Constructionline
Certificate type
ISO 9001 Quality Management
Certificate type

Enclosed shelters with optional front panels or shutters.

Jump to:

0800 1777 052 Website

Application

Shelter providing protection from the elements for workers, visitors and equipment.

Description

Enclosed shelters with optional front panels or shutters.

Features and benefits:

Creates an enclosed area manufactured from steel and cladded with polycarbonate sides.
Cost effective way of utilising space to increase productivity.
Fully customizable to include doors, roller shutters, solar lighting, and more.
Suitable for use outside a main or side entrance of a building to create an outside smoking or eating area.
Steel construction is long lasting and hard wearing.
Triplex anti-corrosion surface treatment guarantees the coloured shelter for 25 years.
Alternative anti-corrosion surface treatment, hot-dip galvanizing and epoxy powder-coating, also available to respective ISO and BS EN standards.

General information

Color	Black Guidance for specification option: Frame only. Blue Guidance for specification option: Frame only. Green Guidance for specification option: Frame only. Grey Guidance for specification option: Frame only. Red Guidance for specification option: Frame only. Silver Guidance for specification option: Frame only. White Guidance for specification option: Frame only. Yellow Guidance for specification option: Frame only. Other Guidance for specification option: Frame only (bespoke). Show more
Finish	Powder-coated Galvanized
Material	Steel Polycarbonate
Shape	Rectangle Square
Length	3000 mm 4000 mm 5000 mm Bespoke
Width	3000 mm 4000 mm Bespoke
Height	2600 mm Bespoke
Warranty description	25 year

Uniclass	Pr_20_65_78_77 Semi-closed sheltersPrimary Pr_20_65_78_15 Composite panelled shelters
CAWS	B91/385 Shelter

Specification data - Semi-closed shelters

Shelter description	Shelter with shutters.
Dimensions	-
Plan size	3000 x 3000 mm. 3000 x 4000 mm. 4000 x 3000 mm. 4000 x 4000 mm. 5000 x 3000 mm. 5000 x 4000 mm.
Height	2600 mm.
Frame	-
Material	Structural steel. Guidance for specification option: Square hollow tubes; consult manufacturer for details.
Finish	Triplex multi-layer powder coating to ISO 12944. Other. Guidance for specification option: Alternative anti-corrosion surface treatment, hot-dip galvanizing and epoxy powder-coating available. Consult manufacturer for details and insert requirements.
Colour	Black RAL 9005. Blue RAL 5002. Green RAL 6026. Umbra Grey RAL 7022. Red RAL 3020. Silver RAL 7035. White RAL 9003. Yellow RAL 1021. Other. Guidance for specification option: Bespoke; insert requirements. Not applicable. Guidance for specification option: Galvanized finish only.
Panels	4 mm polycarbonate, left and right.
Roof covering	16 mm twin wall polycarbonate.
Openings	-
Doors	Shutters, solid. Shutters, perforated. Manufacturer guidance Electronically operated roller shutter manufactured from galvanized steel. Operated with a single-phase tubular motor. Galvanized steel rail is attached to the bottom of the curtain for added strength. Control is by momentary switch and a galvanized steel three-sided hood is supplied as standard. Steel support angle flags are 75 x 50 x 3 mm with the galvanized steel guide runner rails 65 x 32 x 3 mm CE Marked against the Construction Products Directive. Colour to match frame unless specified otherwise.
Rainwater drainage	Guttering and downpipes.
