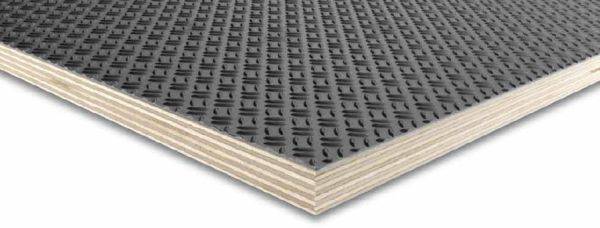

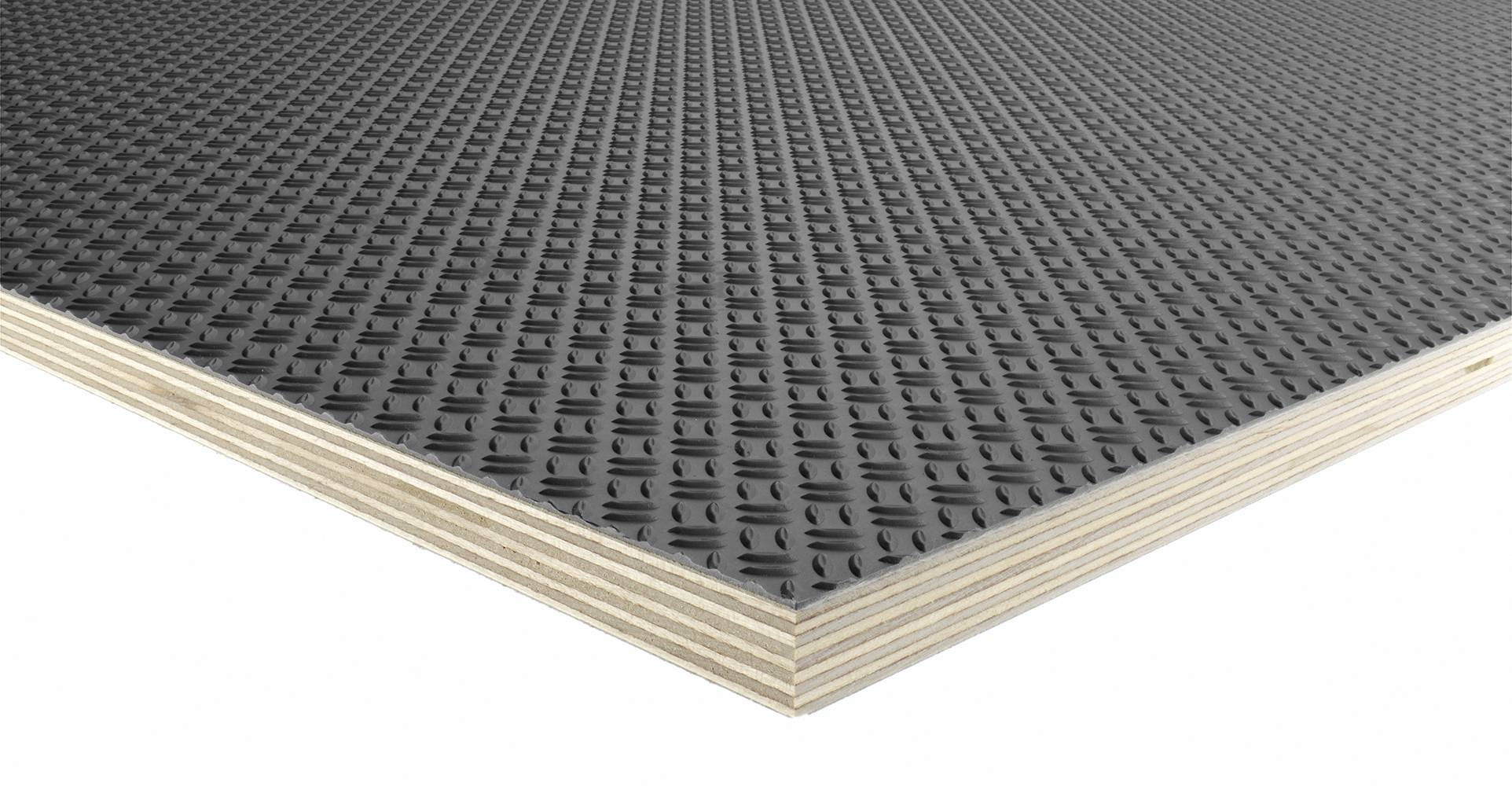

WISA®-Multifloor

Name: WISA®-Multifloor
Brand: UPM Plywood
SKU: aSsNkjJwVajRy7wkmT4mtc

Verified by manufacturer 1 month ago

12 mm thick

UPM Plywood

Third party certifications:

Chain of Custody Certification
Certificate type

High quality and elastic lining panel for end uses where a good looking surface material with high resistance is needed.

Jump to:

BOS

+44(0)20 3530 4433 Website

Application

Ideal flooring material for the varied needs of the transport and construction industries. Suitable for end uses where visual appearance and durability are required, examples include delivery vans, stages, spectator stands, play grounds and sports hall applications.

Description

High quality plywood flooring panel with an elastic, non cracking, thermoplastic polyolefin coating.

Features and benefits:

Wear resistant.
Chemical resistance.
Crack resistant surface.
Decorative plastic coated panel.
Easy to clean with water and detergent.
Plies are bonded using a phenolic resin, cross-bonded, weather resistant glue to EN 314-2, Class 3 'Exterior'. Coating is bonded using adhesive to EN 204, Class 4.
Strength values, see 'Handbook of Finnish plywood' on manufacturer's website for details.
Coating supplier’s guarantee for colour resistance, colour stability (6–7 according to EN ISO 105-B02).
Shapes, profiles and drillings according to specifier’s drawings available on request.
Forest Stewardship Council (FSC) certified.

General information

Color	Grey
Finish	Textured
Material	Plywood
Shape	Rectangle
Length	1200 mm 1220 mm 1250 mm 1500 mm 1525 mm
Width	2400 mm 2440 mm 2500 mm 3000 mm 3050 mm
Height	6.5 mm 9 mm 12 mm 15 mm 18 mm 21 mm 24 mm 27 mm 30 mm Show more

Uniclass	Pr_25_71_97_85 Specialist veneer plywoodsPrimary
CAWS	K11/315 Plywood flooring K11/40 Plywood roof decking K11/815 Plywood

Product range	Coated patterned plywood

Specification data - Specialist veneer plywoods

Standards	To EN 314-2, EN 204.
Material	-
Type	Birch plywood.
Face grain direction	Perpendicular to long edges of boards.
Service class	To BS EN 636, (EN 636-3).
Use class	To BS EN 335, use class 1. To BS EN 335, use class 2. To BS EN 335, use class 3.
Bonding quality	To BS EN 314-2, Class 3.
VOC emissions	E1 low formaldehyde emission class.
Number of plies	9.
Nominal thickness	12 mm. Manufacturer guidance Coated panel thickness.
Sheet size	1200 x 2400 mm. 1200 x 2440 mm. 1200 x 2500 mm. 1200 x 3000 mm. 1200 x 3050 mm. 1200 x 3600 mm. 1220 x 2400 mm. 1220 x 2440 mm. 1220 x 2500 mm. 1220 x 3000 mm. 1220 x 3050 mm. 1220 x 3600 mm. 1250 x 2400 mm. 1250 x 2440 mm. 1250 x 2500 mm. 1250 x 3000 mm. 1250 x 3050 mm. 1250 x 3600 mm. 1500 x 2400 mm. 1500 x 2440 mm. 1500 x 2500 mm. 1500 x 3000 mm. 1525 x 2400 mm. 1525 x 2440 mm. 1525 x 2500 mm. 1525 x 3000 mm. 1525 x 3050 mm. 1525 x 3600 mm. Manufacturer guidance Other dimensions available on request.
Edges	Square. Tongued and grooved two long edges. Tongued and grooved four edges.
Finish as delivered	-
Worked finish	Ripple pattern, 1.35 mm projection. Guidance for specification option: Surface finish. Slightly embossed, polypropylene coating. Guidance for specification option: Reverse finish.

Colour	Grey (RAL 7010). Manufacturer guidance Surface colour.
Sheet weight	800 g/m². Manufacturer guidance Surface weight.
Weight	9.0 kg/m².
UV resistance	Colour stability 6–7. Manufacturer guidance Surface panel and reverse side.
Testing	Charge 100 kg: 41000 rounds. Manufacturer guidance Surface panel rolling test.

Sustainability data

Contains Red List materials	No
Country of material origin	Estonia
Country of product manufacture	Estonia
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	-792 kg CO₂ eq/kg Self declared
Recyclability	Re-use or Biomass
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	Revit 2016	2
IFC	IFC2X3	1

Third party certifications

Chain of Custody Certification

FSC Chain of Custody
