Zenith® Bench - Curved
Verified by manufacturer 3 months ago
ZEN RB 186
ZEN RB 186
Made in Britain
Certificate type
Contemporary curved bench.
Application
Suitable for outdoor seating.
Description

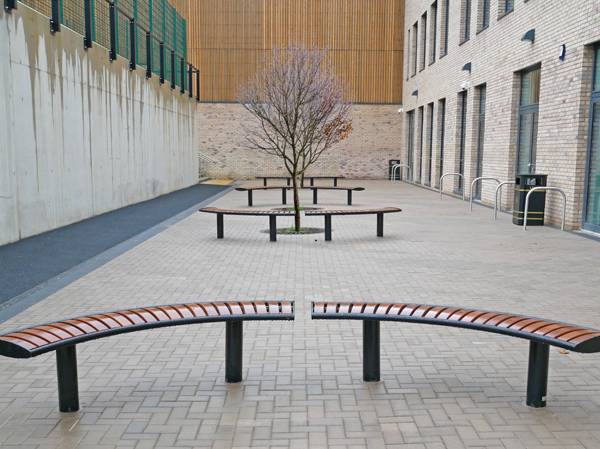

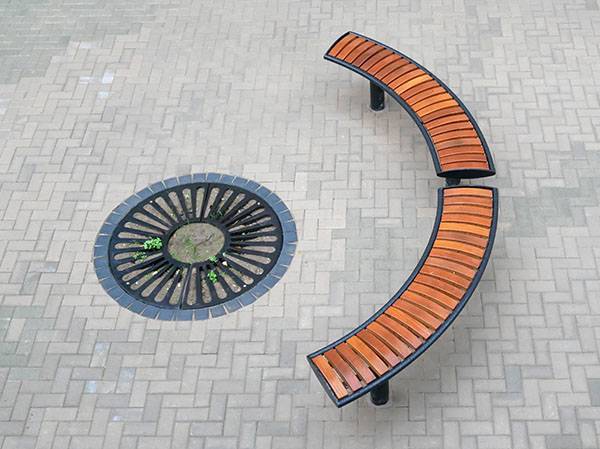

Curved timber bench available in a wide range of sizes and configurations. Each curved bench seat is designed to accommodate three to four people. These outdoor curved benches can be used independently, in pairs or multiples to create arcs, wave forms or linked to form complete seating circles.
Features and benefits:
- Four radiuses are offered as standard from 1.8–3.6 m overall.
- A tough steel galvanized frame is supplied as standard with posts for in-ground fixing.
- The slats on curved benches are arranged in a radial/ front-to-back layout and are profiled to match the aerofoil shape of the steelwork end frames, with iroko timber slats being the most popular choice for modern curved benches.
General information
Color | Brown Silver Other Guidance for specification option: Polyester powder coated to any RAL colour. |
Finish | Satin Galvanized Powder-coated Bright |
Material | Steel Stainless steel Timber Wood |
Shape | Rectangle |
Size | Manufacturer guidanceLength: 1890 mm (on centre line), with various radius options, consult manufacturer literature. |
Warranty description | One year |
Uniclass | |
CAWS | Q50/220 Benches Q50/30 Street furniture |
Product range |
Specification data - Street and site benches
Length | 1.890 m.Guidance for specification option: On centre line. |
Base | Base plated.Root fixed. |
Material | Standard: Steel frame and iroko timber slats. |
Finish as delivered | Standard: Galvanized frame and smooth planed slats. |
Colours | RAL.Guidance for specification option: Polyester powder coated to any RAL colour. |
Material/ Finish | Iroko timber, smooth planed finish. Guidance for specification option: Standard. Iroko timber, UV protective finish. Manufacturer guidanceSlats. |
Frame | Stainless steel, grade 1.4301 (304), bright polished. Stainless steel, grade 1.4301 (304), satin polished. Stainless steel, grade 1.4401 (316), bright polished. Stainless steel, grade 1.4401 (316), satin polished. Steel, galvanized finish. Guidance for specification option: Standard. |
Armrests | Not required. Steel. Steel with iroko timber top. |
Anti-skate device | Not required. Required. |
Form | Six benches make a full circle. |
Radius | 1.8 m. |
Angle | 60°. |
Sustainability data
Country of product manufacture | United Kingdom |
Third party certifications
Made in Britain
Made In Britain
