Zucchini Busbar

A range of lighting and power busbars.

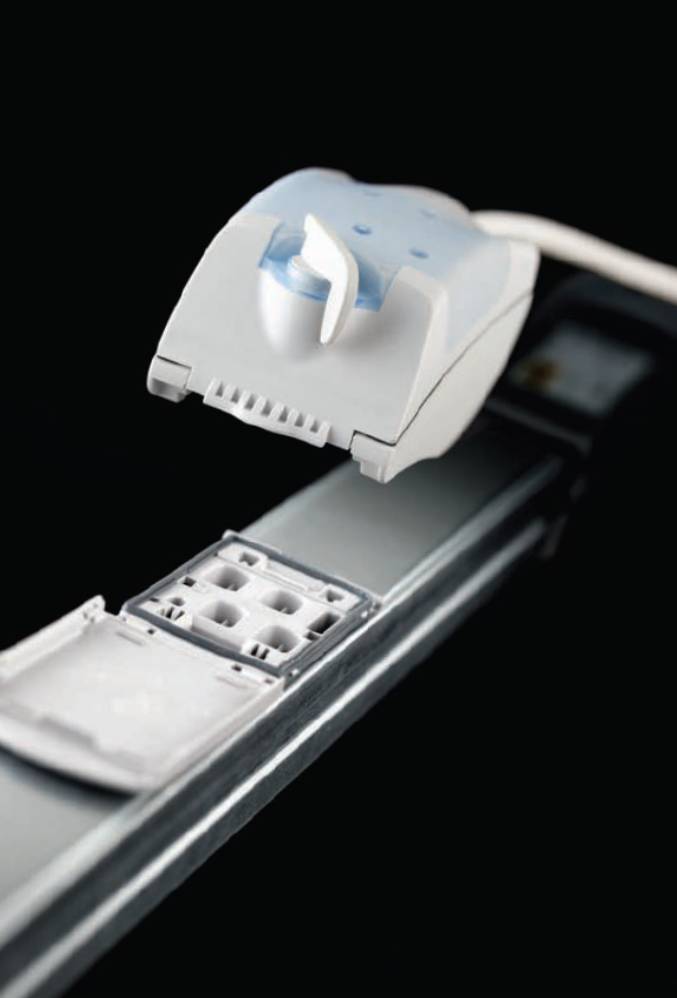

Zucchini LB Plus - Lighting and Power Busbar

Zucchini LB PLUS is a range of 25 to 63 A busbars that are suitable for the distribution of power for lighting and low-power applications.

Type A has a rigid galvanized steel casing, with 3 m maximum distance between suspension brackets. Type B has a reinforced, highly rigid galvanised steel casing, with a 7 m maximum distance between suspension brackets. Conductors are insulated with self-extinguishing plastic. Standard tap-off outlets with captive IP 55 plug outlet covers.

Zucchini MS - Low to Medium Power Busbar

The flexibility of the Zucchini MS range during planning and installation makes it suitable for frequently changing requirements in small to medium-sized commercial and industrial premises. With versions ranging from 63 A to 160 A, the selection of elbows, tees and other accessories make any configuration possible, with bespoke solutions also available on request. In addition to the wide range of accessories, a choice of tap-off boxes from 16 to 63 A accommodate protection devices up to 16 DIN modules.

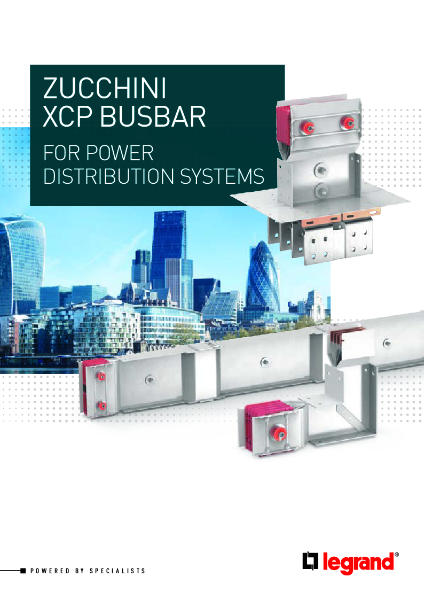

Zucchini XCP busbar:

XCP is the new Zucchini busbar trunking system ranging from 630 A to 6300 A with an IP 55 degree of protection. It is the most suitable solution for the transport and distribution of energy in industrial, commercial and service sector installations. The main benefits of the range are SAFETY, FLEXIBILITY and SIMPLICITY. The busbar trunking has been tested and approved according to IEC 61439-6 Low voltage switchgear and controlgear assemblies.

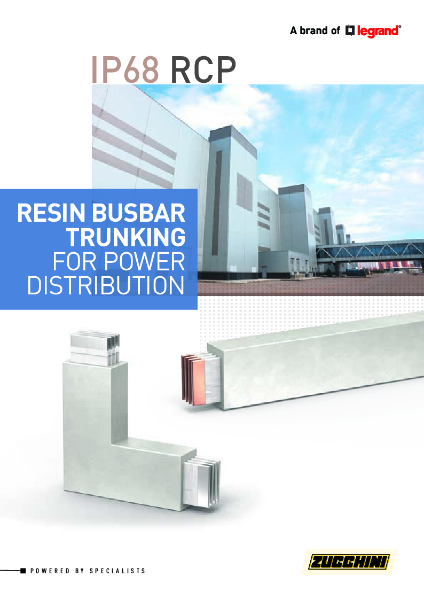

Zucchini RCP IP68 (Resin trunking busbars):

RCP resin busbar is the latest addition to the Zucchini range. With an ingress protection rating of IP68 and ranging from 630 A to 6300 A, RCP is ideal for the distribution of high power energy in external environments. RCP is manufactured with either aluminium or copper conductors which are completely encapsulated in an epoxy resin, that provides mechanical strength and electrical insulation. RCP resin busbar has good performance in fire conditions and exceeds the requirements stipulated in IEC 60331-1 for continuity of service in the event of fire.
