Electricity transmission and distribution - BIM objects
Electrical transmission and distribution covers low and high-voltage cables, switchgear and conditioning supply equipment. Browse BIM objects and Revit families for Electricity transmission and distribution below.
Can't find what you're looking for?
Recently verified
Showing 1-36 of 103
Flush Dado
Verified 7 days ago
Norwood Group Limited
A flush fitted, demountable dado trunking manufactured to various sizes to suit user requirements, integrated within Mediline Partitions.
Standard Red Surface Mounting Back Box for MCP and CP Callpoints
Verified 8 days ago
Johnson Controls
Call point surface mounting box.

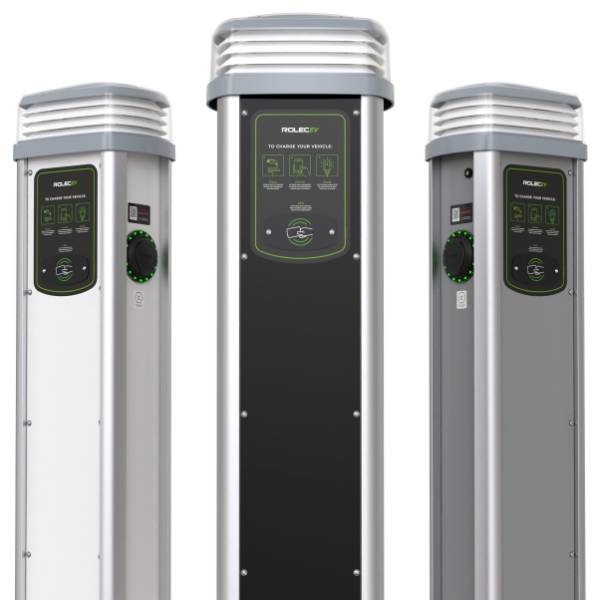

Rolec EV Quantum - Dual Socket - EV Charging Pedestal
Verified 1 month ago
Rolec EV
An intelligent electric vehicle charging pedestal for businesses and organisations.
GenieEvo - Air Insulated MV Switchgear 3.3–13.8 kV
Verified 1 month ago
Schneider Electric Ltd
GenieEvo offers six switchgear options and 18 protection and control module options, providing a total of 69 standard panel combinations. HV Switchboard.

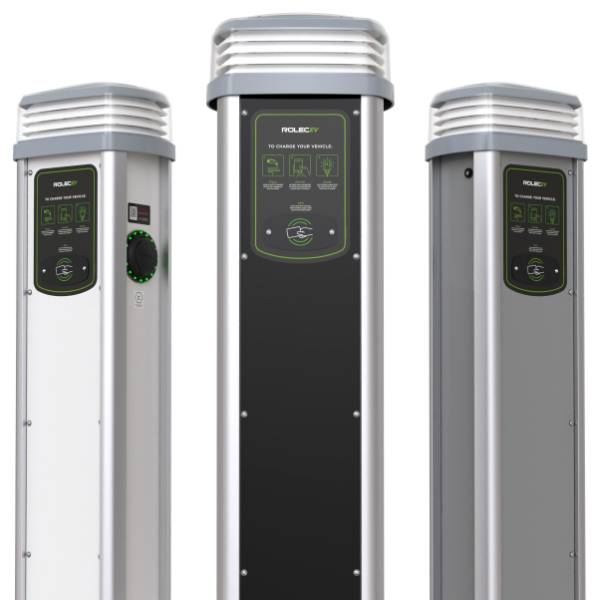

Rolec EV Quantum - Single Socket - EV Charging Pedestal
Verified 1 month ago
Rolec EV
An intelligent electric vehicle charging pedestal for businesses and organisations.
Rolec EV Zura - Single Socket - EV Charging Unit
Verified 1 month ago
Rolec EV
An intelligent electric vehicle charging unit for homes and businesses.
Paxton10 Mini Bullet Camera Junction Box
Verified 2 months ago
Paxton Access Ltd
The camera junction box enables a simple, tidy installation for the Paxton10 cameras. Concealing the cables connected to the camera provides an aesthetically pleasing finish.
Paxton10 Mini Dome Camera Junction Box
Verified 2 months ago
Paxton Access Ltd
The Paxton10 Mini Dome Camera Junction Box houses the electrical connections for the Paxton10 Mini Dome Camera CORE series, to protect the connections, provide a safety barrier and increase the ease.
Medipower™ Triple Cabinet IPS+IFS - Medical IT Power Supply
Verified 2 months ago
Brandon Medical Co Ltd
Isolated power supply for group 2 medical locations.
Medipower™ Single Cabinet IPS+IFS. - Medical IT Power Supply
Verified 2 months ago
Brandon Medical Co Ltd
Isolated power supply for group 2 medical locations.
Medipower™ Single Cabinet IPS - Medical IT Power Supply
Verified 2 months ago
Brandon Medical Co Ltd
Isolated power supply for group 2 medical locations.
Medipower™ Double Cabinet IPS+IFS - Medical IT Power Supply
Verified 2 months ago
Brandon Medical Co Ltd
Isolated power supply for group 2 medical locations.
Medipower™ Triple Cabinet IPS - Medical IT Power Supply
Verified 2 months ago
Brandon Medical Co Ltd
Isolated power supply for group 2 medical locations.
Medipower™ Double Cabinet IPS - Medical IT Power Supply
Verified 2 months ago
Brandon Medical Co Ltd
Isolated power supply for group 2 medical locations.
Medipower™ Double Cabinet IPS+IFS+BATS - Medical IT Power Supply
Verified 2 months ago
Brandon Medical Co Ltd
Isolated power supply for group 2 medical locations.
FalcoCharge-Vault Fire & Explosion Resistant e-Bike Battery Charging Locker
Verified 2 months ago
Falco UK
e-Bike battery locker for the safe charging and storage of e-bike batteries
CARE2 Plasterers Back Box
Verified 3 months ago
Baldwin Boxall Communications Ltd
Plasterers back box for the CARE2 Disabled Refuge remote unit. The object includes finish details and main product features.
OmniCare IP65 Rated Enclosure
Verified 3 months ago
Baldwin Boxall Communications Ltd
IP65 rated enclosure for the OmniCare standard Disabled Refuge remote unit. The object includes finish details and main product features.
CARE2 IP65 Rated Enclosure
Verified 3 months ago
Baldwin Boxall Communications Ltd
IP65 rated enclosure for the CARE2 Disabled Refuge remote unit. The object includes finish details and main product features.
OmniCare Plasterboard Back Box
Verified 3 months ago
Baldwin Boxall Communications Ltd
Plasterboard back box for the OmniCare standard Disabled Refuge remote unit. The object includes finish details and main product features.
Bench Trunking Aluminium
Verified 3 months ago
Marshall-Tufflex Ltd
Bench trunking aluminium is a robust angled trunking that can be mounted directly on to desks, work benches or fitted under shelving.
System 170 Steel Trunking
Verified 3 months ago
Marshall-Tufflex Ltd
A mid-sized pre-galvanized trunking system with extra depth and a resilient white powder-coat finish that helps to prevent smearing and marking.
System 130 Steel Trunking
Verified 3 months ago
Marshall-Tufflex Ltd
Steel System 130 is stylish compact pre galvanised trunking system with extra depth and a resilient white powder-coat finish that helps to prevent smearing and marking.
GRP Cable Ladder - Cable Ladder.
Verified 3 months ago
Marshall-Tufflex Ltd
Glass reinforced plastic (GRP) cable ladder system manufactured by pultrusion, available in a variety of sizes and easy to cut and drill for fast installation with fewer fasteners.
Desktop Modules
Verified 3 months ago
Marshall-Tufflex Ltd
A range of power and data modules with a distinctive modern design, particularly suitable for small offices, home users or education establishments.
Bench Bio Trunking PVC-U
Verified 4 months ago
Marshall-Tufflex Ltd
Bench Bio trunking is a robust angled trunking that can be mounted directly on to desks, work benches or fitted under shelving.
Evoline Backflip Plug Socket
Verified 4 months ago
Symphony Group
Stainless steel or ceramic concrete finished top, two 3 pin plug sockets and a USB port.
Lighting busbar trunking
Verified 4 months ago
NBS
Lighting busbar trunking with parametric values for length, width, height and number of sockets.
Health Care Twin Socket Outlet
Verified 4 months ago
NBS
Twin socket outlet.
Cable ladders
Verified 4 months ago
NBS
Cable ladders used to support electrical cables.

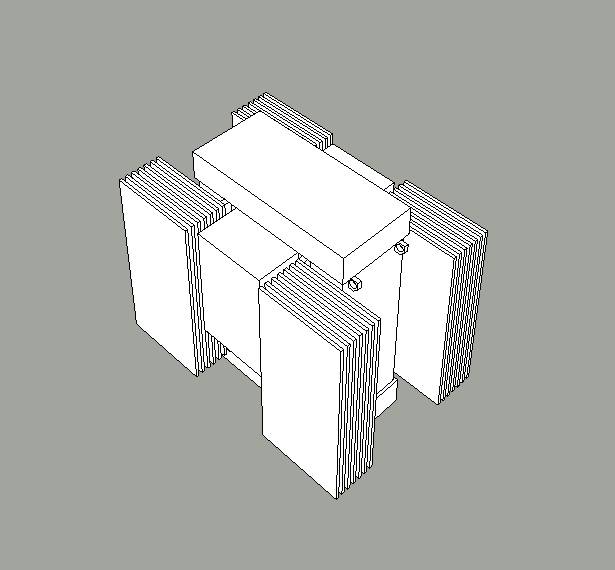

Liquid immersed transformers
Verified 4 months ago
NBS
Liquid immersed transformers most commonly either hermetically sealed or free breathing. With parametric values for length, width, height, arrangement of radiator fins, electrical connections (LV and HV). Includes (pre-set, or user defined) clearance zones to allow for installation and maintenance.
Distribution boards
Verified 4 months ago
NBS
Distribution boards for use on low voltage distribution systems.
Cubicle switchboards
Verified 4 months ago
NBS
Cubicle switchboards for use on low voltage distribution systems.
Service outlet poles
Verified 4 months ago
NBS
Service outlet poles for use on data or low voltage distribution systems. With parametric values for length, width, and height.
Service outlet boxes
Verified 4 months ago
NBS
Service outlet boxes for use on data or low voltage distribution systems. With parametric values for length, width, and height.
COMTRAXX® CP305 Alarm Indicator Panel - Remote Alarm Panel
Verified 5 months ago
Bender UK
Remote alarm indicator, according to IEC 60364-7-710, for medical locations and other areas.
Showing 1-36 of 103
