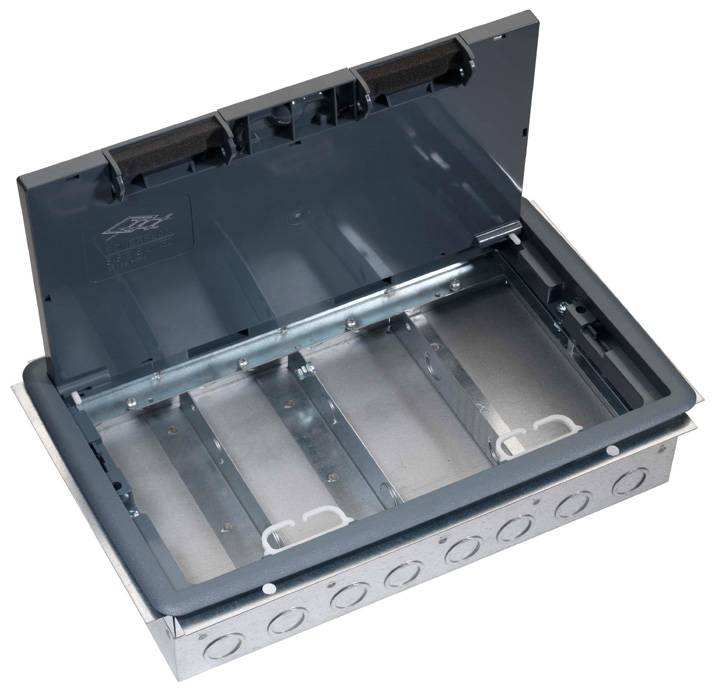

Screed and Screwfix Floor Box - 99 Series 3 or 4 Compartment
Verified by manufacturer 2 months ago
A range of floor boxes available as either a stand alone screed floor type, or a screw fix type.
Application
Available for use in either a stand alone screed floor type, or a screw fix type suitable for raised floors.
Description
The 99 series range of floor boxes.
Features and benefits:
- Jacking legs allow 10 mm of adjustment.
- Taped seems to prevent ingress of screed.
- Non trip cable outlets.
- Key lock available.
- Quick release lid for easy access to accessory plate.
- Self closing lid, prevention of trip hazard.
- Cut-out dimensions, 332mm x 200mm -0/+1
General information
Color | Silver Grey |
Finish | Galvanized |
Material | Steel Polycarbonate ABS |
Shape | Rectangle |
Length | 350 mm |
Width | 218 mm |
Height | 85 mm |
Uniclass | |
CAWS | K46/382 Service outlet boxes K41/360 Service outlet boxes |
Specification data - Service outlet boxes
Installation method | Stand alone screed floor type or a screw, fixed type suitable for raised floors. |
Dimensions | 332 x 218 x 75 mm. |
Hinged lid | |
Material | Galvanized steel base with polyamide outer. |
Outer finish | Manufacturer’s standard grey. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 2 |
 IFC | IFC2X3 | 1 |
