Summary
Stainless steel 'CL, 'C' and 'XHD' section lintels.
Stainless steel 'CL, 'C' and 'XHD' section lintels.
Stainless steel 'CL, 'C' and 'XHD' section lintels.
Application
External leaf masonry walls requiring a structural support above an opening
External leaf masonry walls requiring a structural support above an opening
External leaf masonry walls requiring a structural support above an opening
Description
ACS single leaf lintels are designed to carry a single leaf of masonry, typically the external leaf of a cavity wall. The lintel should be propped during construction to achieve the safe working load capacities declared. A separate cavity tray is required above the lintel.
Wall ties should be installed within 300 mm of the lintel at a maximum of 450 mm centres to ensure that the masonry carried by the lintel is restrained and any potential overturning and deflection is minimized.
The standard lintel range is supplied 150 mm incremental lengths. Lintels of alternative lengths and load capacities outside of the details provided in the tables below can be designed and supplied to meet with project specific requirements. Lintels should be selected to ensure the a minimum of 150 mm bearing either side of the opening is always achieved.
Features and benefits:
- Available in 'L 'C' and 'XHD' sections.
- BS EN 845-2 design.
- BS EN 846-9 testing.
- PD 6697 specification.
- Austenitic stainless steel, 1.4301 (304) or 1.4401 (316) grade.
- UKCA / CE+UKNI marked.
- Independently tested by Lucideon and the Building Research Establishment (BRE).
- CCPI verified.
ACS single leaf lintels are designed to carry a single leaf of masonry, typically the external leaf of a cavity wall. The lintel should be propped during construction to achieve the safe working load capacities declared. A separate cavity tray is required above the lintel.
Wall ties should be installed within 300 mm of the lintel at a maximum of 450 mm centres to ensure that the masonry carried by the lintel is restrained and any potential overturning and deflection is minimized.
The standard lintel range is supplied 150 mm incremental lengths. Lintels of alternative lengths and load capacities outside of the details provided in the tables below can be designed and supplied to meet with project specific requirements. Lintels should be selected to ensure the a minimum of 150 mm bearing either side of the opening is always achieved.
Features and benefits:
- Available in 'L 'C' and 'XHD' sections.
- BS EN 845-2 design.
- BS EN 846-9 testing.
- PD 6697 specification.
- Austenitic stainless steel, 1.4301 (304) or 1.4401 (316) grade.
- UKCA / CE+UKNI marked.
- Independently tested by Lucideon and the Building Research Establishment (BRE).
- CCPI verified.
ACS single leaf lintels are designed to carry a single leaf of masonry, typically the external leaf of a cavity wall. The lintel should be propped during construction to achieve the safe working load capacities declared. A separate cavity tray is required above the lintel.
Wall ties should be installed within 300 mm of the lintel at a maximum of 450 mm centres to ensure that the masonry carried by the lintel is restrained and any potential overturning and deflection is minimized.
The standard lintel range is supplied 150 mm incremental lengths. Lintels of alternative lengths and load capacities outside of the details provided in the tables below can be designed and supplied to meet with project specific requirements. Lintels should be selected to ensure the a minimum of 150 mm bearing either side of the opening is always achieved.
Features and benefits:
- Available in 'L 'C' and 'XHD' sections.
- BS EN 845-2 design.
- BS EN 846-9 testing.
- PD 6697 specification.
- Austenitic stainless steel, 1.4301 (304) or 1.4401 (316) grade.
- UKCA / CE+UKNI marked.
- Independently tested by Lucideon and the Building Research Establishment (BRE).
- CCPI verified.
Product certifications
Digital objects
Color
Silver
Silver
Silver
Finish
Natural
Natural
Natural
Material
Stainless steel
Stainless steel
Stainless steel
Shape
Other
Other
Other
Length
600 mm, 750 mm, 900 mm, 1050 mm, 1200 mm, 1350 mm, 1500 mm, 1650 mm, 1800 mm, 1950 mm, 2100 mm, 2250 mm, 2400 mm, 2550 mm, 2700 mm, 2850 mm, 3000 mm, 3150 mm, 3300 mm, 3450 mm, 3600 mm, 3750 mm, 3900 mm, 4050 mm, 4200 mm, 4350 mm, 4500 mm
600 mm, 750 mm, 900 mm, 1050 mm, 1200 mm, 1350 mm, 1500 mm, 1650 mm, 1800 mm, 1950 mm, 2100 mm, 2250 mm, 2400 mm, 2550 mm, 2700 mm, 2850 mm, 3000 mm, 3150 mm, 3300 mm, 3450 mm, 3600 mm, 3750 mm, 3900 mm, 4050 mm, 4200 mm, 4350 mm, 4500 mm
600 mm, 750 mm, 900 mm, 1050 mm, 1200 mm, 1350 mm, 1500 mm, 1650 mm, 1800 mm, 1950 mm, 2100 mm, 2250 mm, 2400 mm, 2550 mm, 2700 mm, 2850 mm, 3000 mm, 3150 mm, 3300 mm, 3450 mm, 3600 mm, 3750 mm, 3900 mm, 4050 mm, 4200 mm, 4350 mm, 4500 mm
Width
95 mm
95 mm
95 mm
Specification
Classification data
Standard
To BS EN 845-2 and PD 6697.
To BS EN 845-2 and PD 6697.
To BS EN 845-2 and PD 6697.
Lintel type
Single.
Single.
Single.
Material finish and coating reference
Austenitic stainless steel 1.4301 (304) grade., Austenitic stainless steel 1.4401 (316) grade.
Austenitic stainless steel 1.4301 (304) grade., Austenitic stainless steel 1.4401 (316) grade.
Austenitic stainless steel 1.4301 (304) grade., Austenitic stainless steel 1.4401 (316) grade.
Sizes
Manufacturers standard.
Manufacturers standard.
Manufacturers standard.
Additional properties
Shape

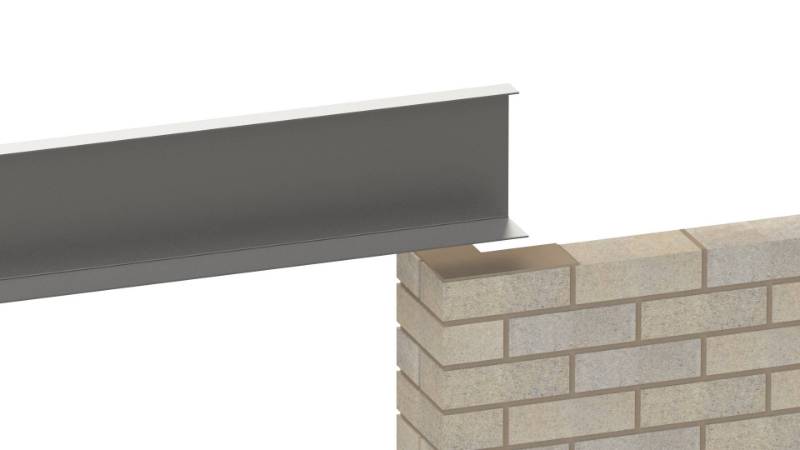

'C' section.

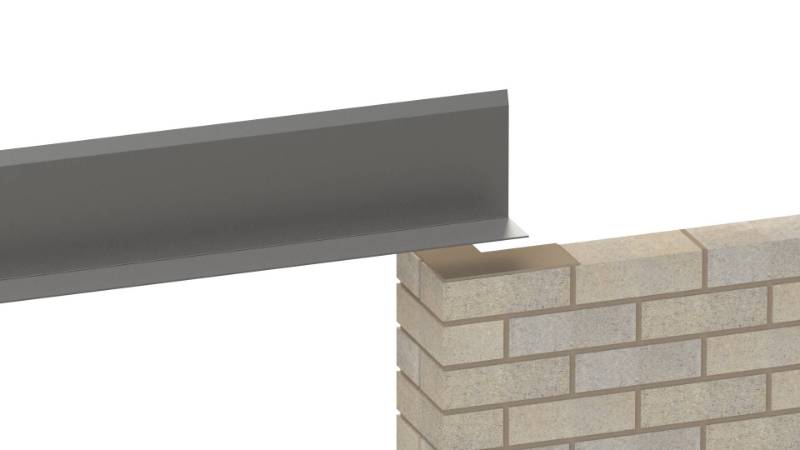

'L' section.

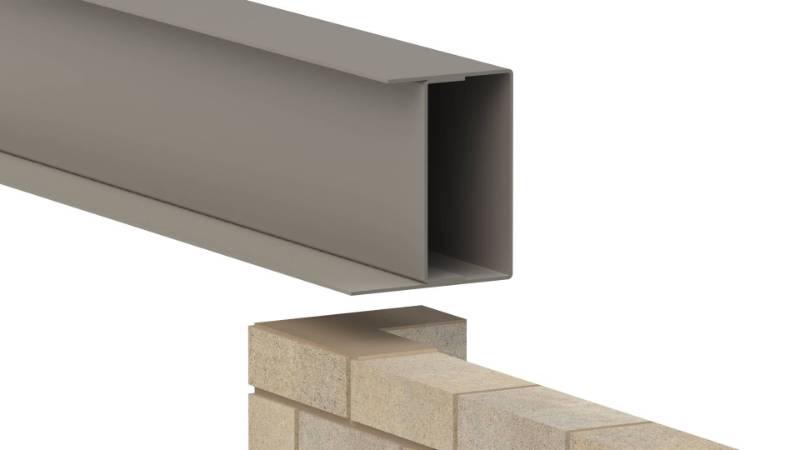

'XHD' section.
Sustainability data
Contains Red List materials
No
No
No
Country of product manufacture
United Kingdom
United Kingdom
United Kingdom
Manufacturing plant location
Innovation Way, Leeds LS9, UK
Innovation Way, Leeds LS9, UK
Innovation Way, Leeds LS9, UK
Material
Stainless steel
Stainless steel
Stainless steel
Recyclability
100% recyclable
100% recyclable
100% recyclable
