Summary
Ceiling tile manufactured with a glass wool core and partially concealed grid system.
Ceiling tile manufactured with a glass wool core and partially concealed grid system.
Application
For applications requiring an easy-install suspended ceiling and meets essential functional demands.
For applications requiring an easy-install suspended ceiling and meets essential functional demands.
Description

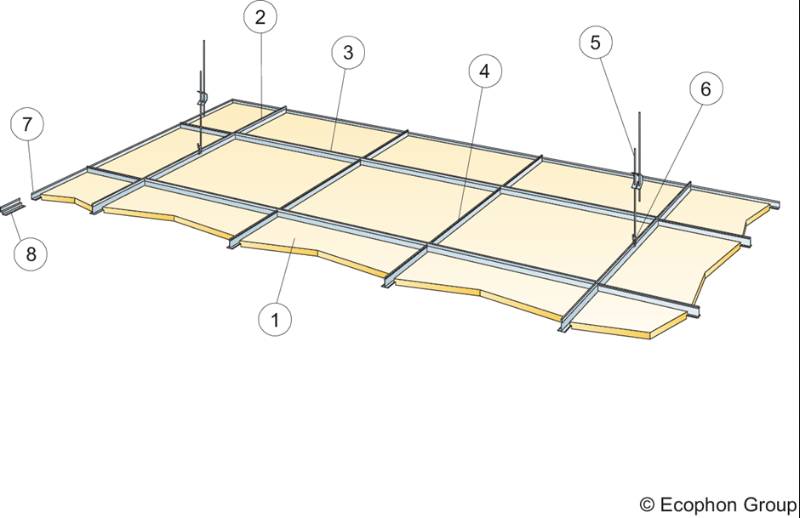

Ecophon Advantage™ E has a recessed visible grid and a tegular edge design, creating a ceiling with a shadow effect to accentuate each tile and partially conceal the grid system.
Features and benefits:
- Absorption class A.
- Tegular edge design with painted edges.
- Easy to install and demount.
- Advantage™ surface is a batch-painted surface that contains a water-based paint without any harmful additives.
- The surface is suitable for dry wiping and vacuum cleaning.
- CE marked according to the European harmonized standard EN 13964:2014.
- Eurofins Indoor Air Comfort® Gold certified product.
Ecophon Advantage™ E has a recessed visible grid and a tegular edge design, creating a ceiling with a shadow effect to accentuate each tile and partially conceal the grid system.
Features and benefits:
- Absorption class A.
- Tegular edge design with painted edges.
- Easy to install and demount.
- Advantage™ surface is a batch-painted surface that contains a water-based paint without any harmful additives.
- The surface is suitable for dry wiping and vacuum cleaning.
- CE marked according to the European harmonized standard EN 13964:2014.
- Eurofins Indoor Air Comfort® Gold certified product.
Product certifications
Color
White
White
Finish
Painted, Galvanized
Painted, Galvanized
Material
High-density glass wool, Steel
High-density glass wool, Steel
Shape
Square, Rectangle
Square, Rectangle
Length
600 mm, 1200 mm
600 mm, 1200 mm
Width
600 mm
600 mm
Height
15 mm
15 mm
Warranty description
Ten year
Ten year
SKU Code
M122
M272
Specification
Classification data
Ceiling support
Connect™ T15 grid., Connect™ T24 grid.
Connect™ T24 grid.
Support fasteners
Connect adjustable hangers and hanger clips., Connect direct bracket.
Connect adjustable hangers and hanger clips., Connect direct bracket.
Ceiling units
Advantage E tile.
Advantage E tile.
Barriers in ceiling void
-
-
Fire barriers
-
-
Acoustic barriers
-
-
Plenum barriers
-
-
System accessories
Not required., Connect clips., Connect connectors and splines., Connect fixing devices., Connect suspensions and brackets., Connect™ Angle Trim., Connect™ Shadow Line Trim., Other.
Not required., Connect clips., Connect connectors and splines., Connect fixing devices., Connect suspensions and brackets., Connect™ Angle Trim., Connect™ Shadow Line Trim., Other.
Additional properties
Installation
M122 - suspended ceiling.
M272 - suspended ceiling.
Sound absorption
To EN ISO 354, Class A.
To EN ISO 354, Class A.
Reaction to fire
To EN 13501-1, A2-s1,d0.
To EN 13501-1, A2-s1,d0.
Size (length x width)
600 x 600 mm., 1200 x 600 mm.
600 x 600 mm., 1200 x 600 mm.
Thickness (overall)
15 mm.
15 mm.
Weight
2.3 kg/m².
2.3 kg/m².
Edges
Tegular.
Tegular.
Surface finish
Painted.
Painted.
Colour
White 500.
White 500.
Core material
Glass wool.
Glass wool.
Constant humidity resistance
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
Indoor climate
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
Finnish M1.
French VOC: A+.
Finnish M1.
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
Finnish M1.
French VOC: A+.
Finnish M1.
Standard
CE marked according to the European harmonized standard EN 13964:2014.
CE marked according to the European harmonized standard EN 13964:2014.
Sustainability data
Contains Red List materials
No
No
Country of material origin
Sweden
Sweden
Country of product manufacture
Sweden
Sweden
Material
High-density glass wool, Steel
High-density glass wool, Steel
Carbon dioxide equivalent
Normalized unit
(kg CO₂ eq/kg) A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
Declared unit
Certified
A1–A3 ('Production stage') :
1.91
Certified
A1–A3 ('Production stage') :
1.91
Recyclability
Fully recyclable
Fully recyclable
Recycled content
47 %
47 %
Expected Life
50 year
50 year
