Summary
Spring isolator fabricated to limit vertical movement of the isolated equipment.
-
-
Application
Suitable for isolating vibration from fluid-filled equipment like boilers, chillers, and cooling towers, especially where fluid may be drained and wind loads are minimal.
-
-
Description

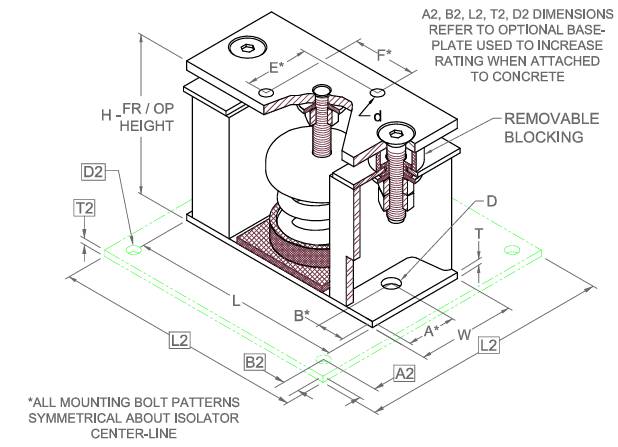

Kinetics FLS Restrained Spring Isolators consist of free standing, large diameter, laterally stable steel springs housed in welded steel assemblies. These housings are designed to limit vertical movement of the isolated equipment in the event of reduced equipment loads or exposure to significant vertical external forces. Each spring element includes internal noise isolation pads and features an adjusting and leveling bolt integrated into the top load plate assembly.
Features and benefits:
- Spring made from powder-coated polyester.
- Available in custom isolators with higher deflection and greater load capacities.
- Operating static deflections available for compensating long-span structures.
- Designed for equipment not subject to lateral forces such as wind.
- Assembled into welded steel housing.
-
-
Color
Beige, Black, Blue, Bronze, Brown, Copper, Cream, Gold, Green, Grey, Ivory, Orange, Pink, Purple, Red, Silver, Turquoise, White, Yellow, Other
-
-
Finish
Galvanized, Powder-coated, Zinc plated
-
-
Material
Polyester, Steel
-
-
Shape
Other, Rectangle
-
-
Length
165 mm, 222 mm, 229 mm, 273 mm, 356 mm, 394 mm, 419 mm, 445 mm, 546 mm, 648 mm, 686 mm
-
-
Width
76 mm, 102 mm, 127 mm, 152 mm, 173 mm, 203 mm, 279 mm, 432 mm
-
-
Height
113 mm, 159 mm, 175 mm, 191 mm, 203 mm, 248 mm, 254 mm, 273 mm, 356 mm, 438 mm, 445 mm
-
-
SKU Code
FLS-1-12/805
-
-
Specification
Classification data
Spring isolators type
Vertical restrained.
-
-
Colour code
Silver., Yellow., Blue., Pink., White., Green., Black., Gray., Red., Brown., Purple., Orange., Beige., Chrome.
-
-
Additional properties
Dimensions
165 x 76 x 113 mm.
-
-
Sustainability data
Country of material origin
United Kingdom
-
-
Material
Polyester, Steel
-
-
