Kinetics FLS Restrained Spring Isolators

Verified by manufacturer 4 days ago

FLS-1-12/805

CMS Danskin Acoustics

Spring isolator fabricated to limit vertical movement of the isolated equipment.

Jump to:

Request BIM

+44 (0)1925 577711 Website

Application

Suitable for isolating vibration from fluid-filled equipment like boilers, chillers, and cooling towers, especially where fluid may be drained and wind loads are minimal.

Description

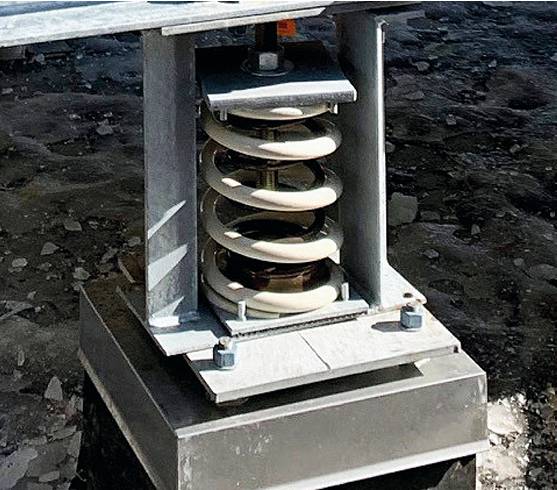

Kinetics FLS Restrained Spring Isolators consist of free standing, large diameter, laterally stable steel springs housed in welded steel assemblies. These housings are designed to limit vertical movement of the isolated equipment in the event of reduced equipment loads or exposure to significant vertical external forces. Each spring element includes internal noise isolation pads and features an adjusting and leveling bolt integrated into the top load plate assembly.

Features and benefits:

Spring made from powder-coated polyester.
Available in custom isolators with higher deflection and greater load capacities.
Operating static deflections available for compensating long-span structures.
Designed for equipment not subject to lateral forces such as wind.
Assembled into welded steel housing.

General information

Color	Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Orange Pink Purple Red Silver Turquoise White Yellow Other Show more
Finish	Galvanized Powder-coated Zinc plated
Material	Polyester Steel
Shape	Other Rectangle
Length	165 mm 222 mm 229 mm 273 mm 356 mm 394 mm 419 mm 445 mm 546 mm 648 mm 686 mm Show more
Width	76 mm 102 mm 127 mm 152 mm 173 mm 203 mm 279 mm 432 mm Show more
Height	113 mm 159 mm 175 mm 191 mm 203 mm 248 mm 254 mm 273 mm 356 mm 438 mm 445 mm Show more

Uniclass	Pr_80_77_94_84 Spring isolatorsPrimary
CAWS	K11/275 Acoustic separating floor system K11/27 Acoustic separating floor

SKU Code	FLS-1-12/805

Specification data - Spring isolators

Classification data
Spring isolators type	Vertical restrained.
Colour code	Silver. Guidance for specification option: Size: 1–12. Load: 5 kg. Deflection: 25 mm. Yellow. Guidance for specification option: Size: 1–18. Load: 8 kg. Deflection: 25 mm. Blue. Guidance for specification option: Size: 1–24 (35). Load: 11 kg. Deflection: 26 mm. Pink. Guidance for specification option: Size: 1–30. Load: 14 kg. Deflection: 25 mm. White. Guidance for specification option: Size: 1–37. Load: 17 kg. Deflection: 25 mm. Green. Guidance for specification option: Size: 1–50 (70). Load: 23 kg. Deflection: 25 mm. Black. Guidance for specification option: Size: 1–75. Load: 34 kg. Deflection: 26 mm. Gray. Guidance for specification option: Size: 1–100 (120). Load: 45 kg. Deflection: 25 mm. Red. Guidance for specification option: Size: 1–150. Load: 68 kg. Deflection: 25 mm. Brown. Guidance for specification option: Size: 1–210 (220). Load: 95 kg. Deflection: 26 mm. Purple. Guidance for specification option: Size: 1–300. Load: 136 kg. Deflection: 25 mm. Orange. Guidance for specification option: Size: 1–385 (370). Load: 175 kg. Deflection: 25 mm. Beige. Guidance for specification option: Size: 1–500. Load: 227 kg. Deflection: 25 mm. Chrome. Guidance for specification option: Size: 1–600. Load: 272 kg. Deflection: 26 mm.
Load	- Manufacturer guidance Loads between 5–365 kg dependent on colour selected. Insert requirements.
Deflection	- Manufacturer guidance Deflection between 25–26 dependent on colour selected. Insert requirements.

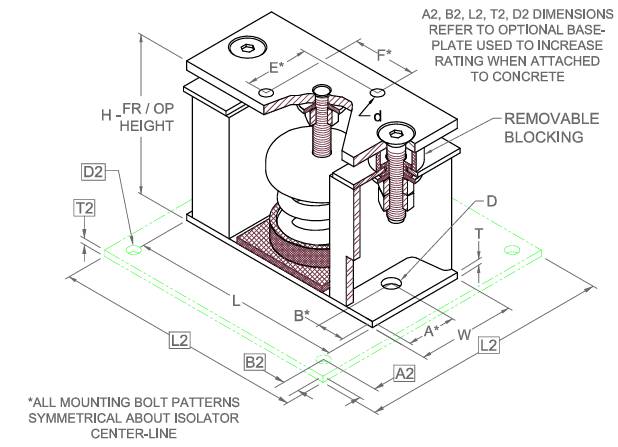

Dimensions	165 x 76 x 113 mm. Manufacturer guidance Length x width x height.

Sustainability data

Country of material origin	United Kingdom
Material	Polyester Steel
