25 mm Deflection Isolation Springs
25 mm Deflection Isolation Springs

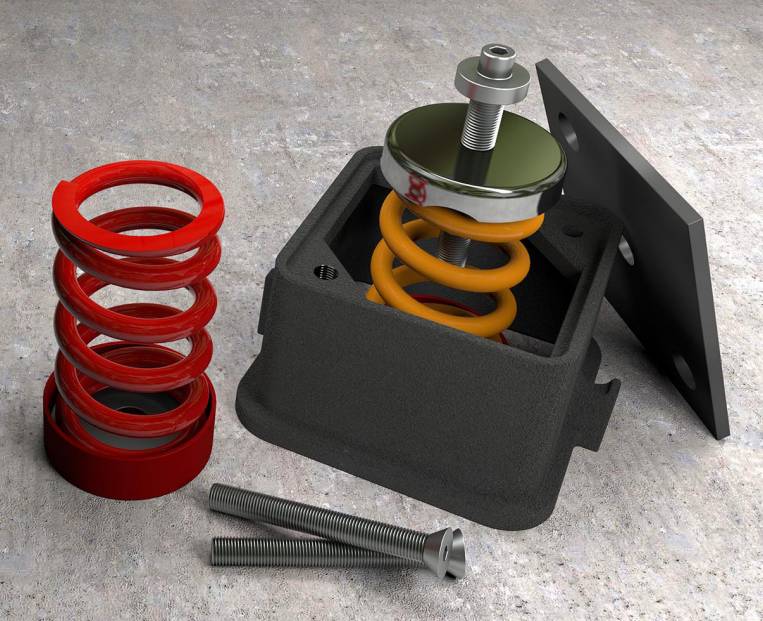

Kinetics Lift (Jack Up) spring isolators for a floating floor system.
Application
For intense impact applications ranging from floors for sensitive lab measuring equipment (e.g. metrology and surgical labs) to sports floors over retail/commercial spaces, mechanical or plant rooms.
Description
Kinetics Lift slab (Jack Up) floating floor spring isolators. Lift slab (Jack Up) floating floor systems incorporate spring isolators to decouple 102 mm thick concrete slabs from non-isolated structural floors and creating a maximum 50 mm airspace.
Typically used where vibration and impact isolation are critical and of greater concern than airborne noise transmission. Mounts are joined together with steel rebar to allow the concrete slab to lift as one.
Features and benefits:
- 25 mm and 50 mm deflection springs available.
- Rubber cap assembly protects against resonant frequencies.
- Performance and layout drawings available.
- In-slab or perimeter seismic restraint elements available where required.
- Springs ship in ready-to-install sub-assemblies.
- Castings are stocked ready to ship.
- Spring isolator natural frequencies (fn): 3.13 Hz for 25 mm rated deflection springs and 2.21 Hz for 50 mm rated deflection springs.
- Other rated deflection springs are available.
- The LiftWrx system uses a 102 mm floating concrete slab over 50 mm maximum airspace.
General information
Material | Metal Rubber |
Shape | Square Circle Other |
Length | 186 mm Guidance for specification option: Mount length. |
Width | 164 mm Guidance for specification option: Mount width |
Height | 102 mm Guidance for specification option: Mount height. |
Uniclass | |
CAWS | K11/27 Acoustic separating floor K11/275 Acoustic separating floor system |
Specification data - Spring isolators
Classification data | |
Spring isolators type | Vertical restrained. Guidance for specification option: In mount. |
Colour code | Guidance for specification option: Various colour codes available, consult manufacturer and insert requirements. |
Load | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Deflection | 25 mm. |
Dimensions | 186 x 164 x 102 mm. Manufacturer guidanceMount dimensions. |
Integral accessories | Rubber cap assembly. |
Rated frequency | 3.13 Hz. Manufacturer guidanceIsolator natural frequency. |
Sustainability data
Material | Metal Rubber |
Literature
Kinetics LiftWrx - TDS issue 1 11 2024
