200 Series Built Under Wine Cabinet
Verified by manufacturer 6 months ago

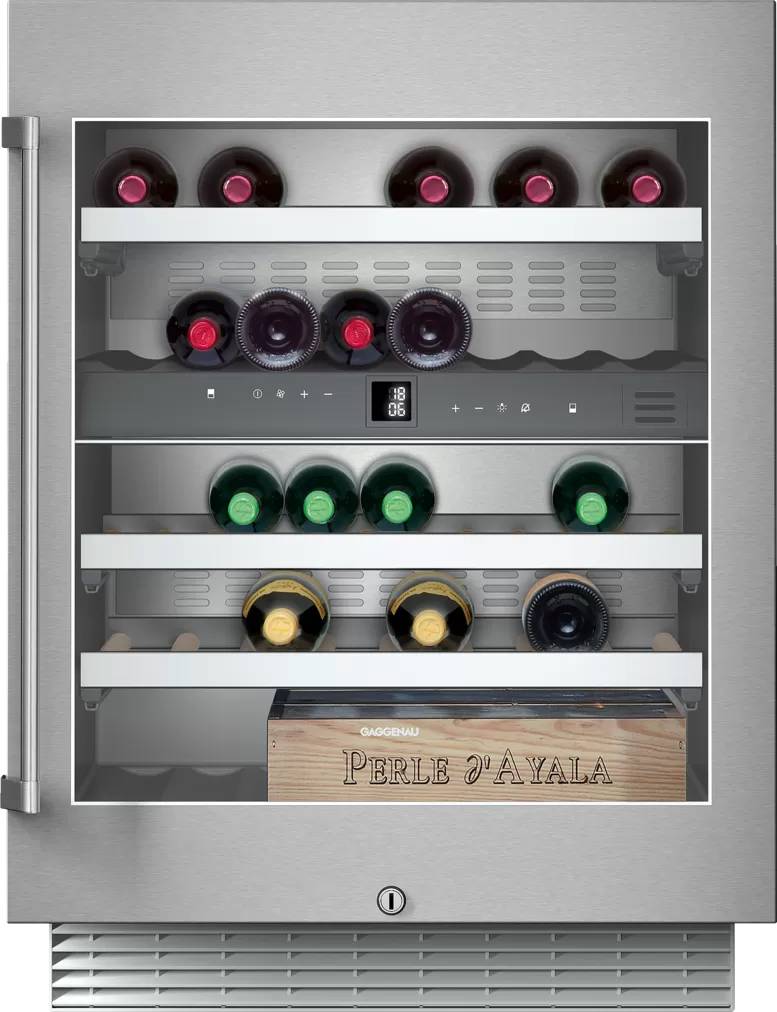

Wine cooler with glass door.
Application
Wine cooler.
Description
200 series wine cooler with glass door, 82 x 60 cm.
Features and benefits:
- Humidity level can be increased to avoid drying out of cork.
- Two independently controllable climate zones.
- Extendable bottle trays in beech and aluminium.
- Consistent temperatures with exact control from 5–20°C.
- Door opening angle 115°, fixable at 95°.
General information
Color | Silver |
Finish | Brushed |
Material | Stainless steel Glass |
Shape | Rectangle |
Length | 456 mm |
Width | 540 mm |
Height | 506 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N11/40 Appliances N11/360 Appliances |
Specification data - Refrigerators
Installation | Built-in. |
Format | Wine cabinet. |
Dimensions | |
Height (maximum) | 506 mm. |
Width (maximum) | 540 mm. |
Depth (maximum) | 456 mm. |
Net storage | 94 L. |
Shelves | Five bottle trays, three of which are extendable. |
Door arrangement | Glass door. |
Features | Capacity 34 bottles (based on 0.75 L standard bottles). |
Rating | Energy consumption 138 kWh/year. |
EU energy label rating (minimum) | G. |
Accessories | RA050220: Carbon airfilter. RA097600: SbS Installation kit for RW404 and RW402. |
Sustainability data
Material | Stainless steel Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
The Models and Dimensions 2024 Edition l
The Range 2024
