400 Series Vario Cooling Modular Wine Cabinet with Single Glass Door
Verified by manufacturer 6 months ago
RW414365 Vario cooling 400 series, wine climate cabinet , two zones, glass door, 18" (45.7 cm), Door Opening Assist, HC Ready
RW414365 Vario cooling 400 series, wine climate cabinet , two zones, glass door, 18" (45.7 cm), Door Opening Assist, HC Ready

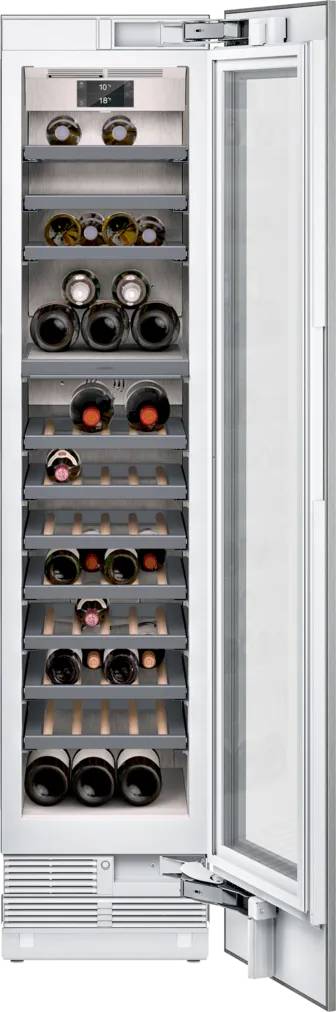

Wine cooler with glass door.
Application
Wine cooler.
Description
400 series vario wine cooler with glass door, 212.5 x 45.1 or 60.3 cm.
Features and benefits:
- Five preset lighting scenarios.
- Three independent climate zones from 5–20°.
- High-quality interior for optimum wine presentation.
- Humidity control.
General information
Color | Clear |
Finish | Glazed |
Material | Glass |
Shape | Rectangle |
Width | 451 mm 603 mm |
Height | 2134 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N11/40 Appliances N11/360 Appliances |
Specification data - Refrigerators
Installation | Built-in. |
Format | Wine cabinet. |
Dimensions | |
Height (maximum) | 2125 mm. |
Width (maximum) | 450 mm. |
Net storage | 272 L. |
Shelves | 12 bottle trays, - ten fully extendable trays - three suitable for storage of Magnum bottles.Manufacturer guidanceCapacity 70 bottles (based on 0.75 l standard bottles). Storage of up to 6 Magnum bottles with standard tray configuration (12 bottle trays). |
Door arrangement | Glass door. |
Features | 2 brilliant LED light spots with warm white, glare-free light (3500 K) in each climate zone. |
Rating | Energy consumption 145 kWh/year. |
EU energy label rating (minimum) | G. |
Accessories | RA430000: Screw hole cover set. RA491661: Extendable bottle tray, oak wood RW 466. RA492660: Tray, oak wood for RW466. RA493060: DECOR FRAME RA 493-060. RA498640: Bottle support oak wood for RW466. |
Sustainability data
Material | Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
The Models and Dimensions 2024 Edition l
The Range 2024
