Aisle and Floor Lighting Profiles
Verified by manufacturer 5 months ago
CL05/ LB10
CL05/ LB10

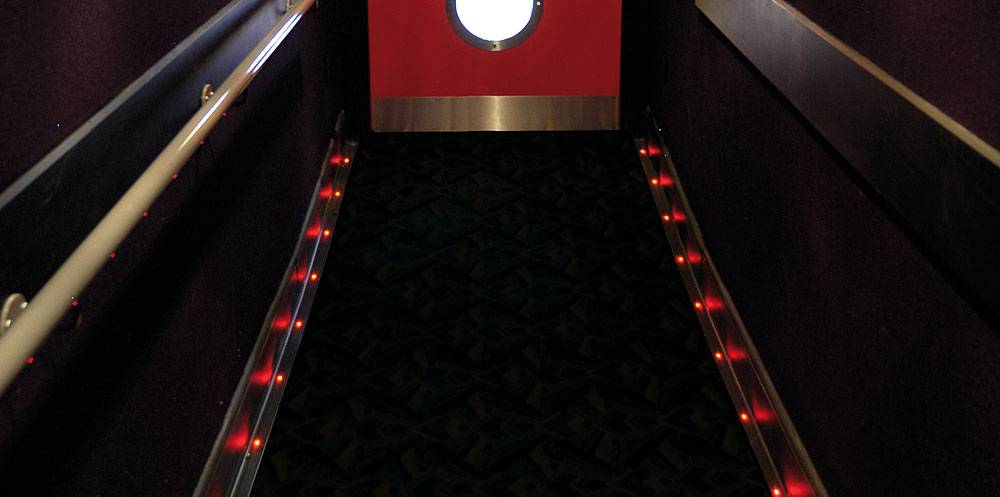

PVC-u aisle and floor trims designed to illuminate floors, walkways, aisles, and entrance/exit routes. They can also be used as cable management systems that work alongside Gradus LED Stair Edgings.
Application
Designed for use as cable management systems to work with the stair edging illuminated profiles, or to illuminate floors, walkways, aisles and exit/ entrance routes.
Description
A comprehensive range of PVC-u aisle and floor trims.
- Continuous light effect:
The LED's are housed in a polycarbonate assembly unit (LEDASSY). It is an end-illuminated acrylic rod incorporating reflective material which projects the light forward. The power consumption is 0.3 watts per LED which have a lifetime of up to 100 000 hours.
- Supplied in 2 m lengths for cutting or finishing on site. For optimum performance the recommended maximum length is 1.5 m.
- Two LED assembly units (LEDASSY) required per rod.
- Interlok (pinpoint light effect):
Printed circuit board strips that easily connect together, even around corners by using flexible connectors The viewing angle of LED is 120°. Cutting strips to desired length does not diminish brightness in the remaining LED's which have a lifetime of up to 100 000 hours and are surface mounted onto strips - six per strip at 100 mm spacing. The power consumption is 0.3 watts per LED.
- IAV/600/6: LED strip supplied in 600 mm lengths.
- 24 V option: Available with 25 or 50 mm spacing.
- RW1 stopper: Available to finish off tube where no end cap is used.
- IAVC1: One connector lead per step required.
General information
Color | Black Blue Green Red White |
Material | PVC-U |
Length | Manufacturer guidanceSee specification data. |
Width | Manufacturer guidanceSee specification data. |
Height | 12 mm 8 mm 17 mm 11 mm 11.5 mm |
Uniclass | |
CAWS | M50/70 Edgings and cover strips M50/740 Edgings and cover strips M51/510 Edgings and cover strips |

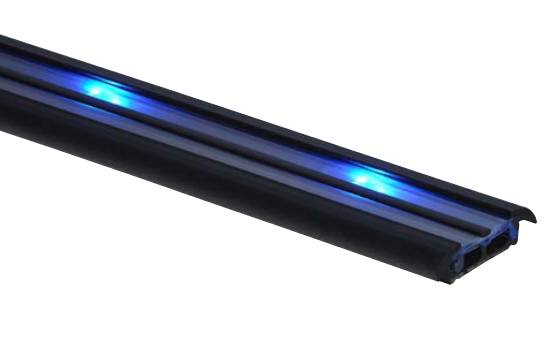

Specification data - Floor cover strips
Dimensions | 31 mm wide, 9 mm gauge, 12 mm high. |
Material | PVC-U. |
Colour | Smoked/ Black.Translucent. |
LED Colour | Amber. Blue. Green. Red. White. |
