Altro Reliance™ 25
Verified by manufacturer 6 months ago
EPD
Certificate type
PVC safety flooring.
Application
Suitable use in corridors subjected to foot and wheeled traffic, secondary/ tertiary school labs and clinical areas in hospitals.
Description
2.5 mm-thick PVC sheet, with glass fibre-reinforced polyester cellulose backing and Easyclean PUR surface protection. It is for use in tough areas, providing additional comfort underfoot, and is able to cope with high levels of foot and wheeled traffic without compromising on slip resistance.
Features and benefits:
- The sheet is available in a range of 27 colours and is suitable for use with underfloor heating.
- Manufactured in accordance with BS EN ISO 13845. A ten-year guarantee is included.
- Electrical behaviour (to BS EN 1815): <2 kV antistatic.
General information
Color | Black Blue Brown Cream Grey |
Finish | Matt |
Material | Polyvinyl chloride (PVC) |
Shape | Rectangle |
Length | 20000 mm |
Width | 2000 mm |
Height | 2.5 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M50/150 Sheeting M50/155 PVC sheet flooring in special wet areas M50/20 Sheeting |
Specification data - Particle-based enhanced slip-resistant polyvinyl chloride (PVC) sheets
Standard | To BS EN 13845. |
Use class | To BS EN ISO 10874, class 34/ 43. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | To BS 7976, wet: ≥40.Guidance for specification option: Pendulum test value. |
Surface roughness (Rz) (minimum) | To BS 1134, ≥20 µm.Guidance for specification option: to BS 1134. |
Recycled content | 10% |
Width | 2000 mm. |
Thickness | 2.5 mm. |
Colour and pattern | Arena – D2510.Biscuit – D25904.Bone – D25215.Fog – D25153.Forge – D2515.Fountain – D2502.Gallery – D2511.Ice rink – D2514.Jet – D2501.Midnight – D25421.Monument – D2508.Pavement – D2507.Plaza – D2512.Pool – D2503.Rock – D2504.Roof garden – D2500.Runway – D2506.Rust – D25907.Signal – D2516.Skyline – D25332.Statue – D2513.Storm – D25903.Stream – D2518.Streetlight – D2505.Temple – D2509.Twilight – D25910.Vault – D2517. |
Slip resistance | To BS EN 13845: ESf; to BS EN 13893: DS; to DIN 51130: R10. |
Sound insulation | To EN ISO 140-8, ca. 7 dB. |
Wear layer thickness | To EN ISO 24340, 2.5 mm. |
Weight | To EN ISO 23997, 3.2 kg/m². |
Residual indentation | To EN ISO 24343-1, ≤ 0.10 mm. |
Flexibility | To EN ISO 24344, Pass. |
Lightfastness | To EN ISO 105-BO2, ≥ 6. |
Castor chair rating | To EN 425, Yes, type W. |
Wear resistance | To EN 13845 Annex D, ≤ 10% / 50000 cycles. |
Chemical resistance | To EN ISO 26987, Good. |
VOC emissions | To CDPH 1350 / Floorscore, Approved. |
Execution | The flooring should be fixed using AltroFix™ adhesive, and joints must be grooved and hot welded using the matching colour Altro Weldrod™. |
Fire rating (to BS EN 13501) | Class Bfl-s1 (≥8 kW/m² pass). |
Sustainability data
Material | Polyvinyl chloride (PVC) |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 6.85 kg CO₂ eq/m² |
Recyclability | 100% recyclable pre installation - ALTRO RECOFLOOR™ https://www.recofloor.org/ |
Third party certifications
Third party certifications
EPD
Altro Reliance 25 EPD
Literature
Altro Reliance Sample Card

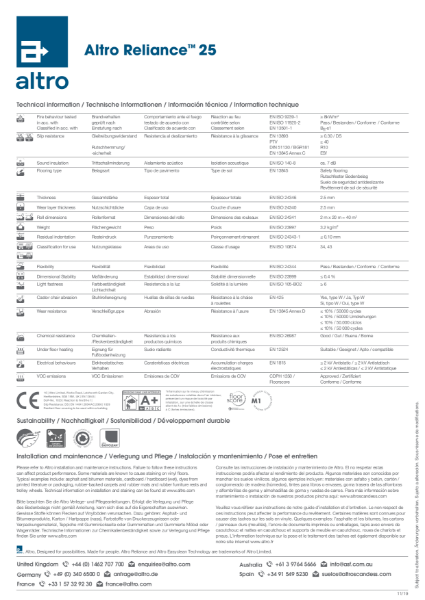

Altro Reliance Technical Data Sheet
4064_Altro_Reliance25_sustainability_overview_v4
Case studies

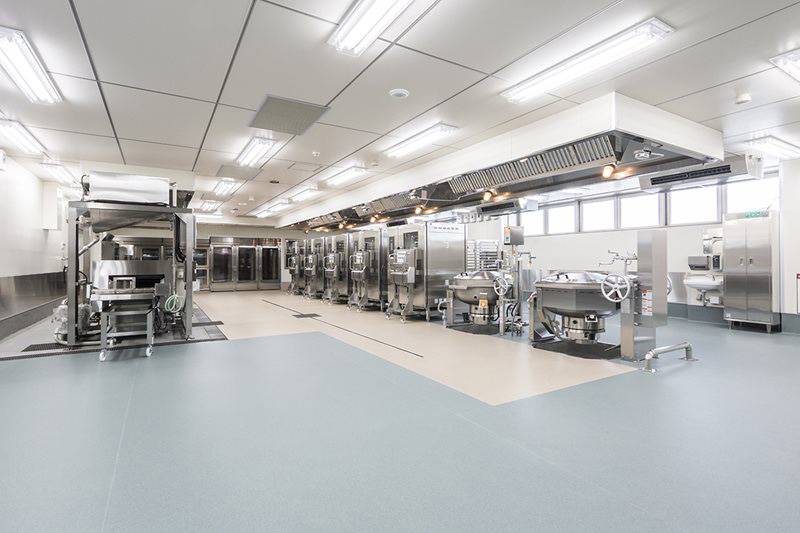

The Fourth School Meal Center - Nagano, Japan

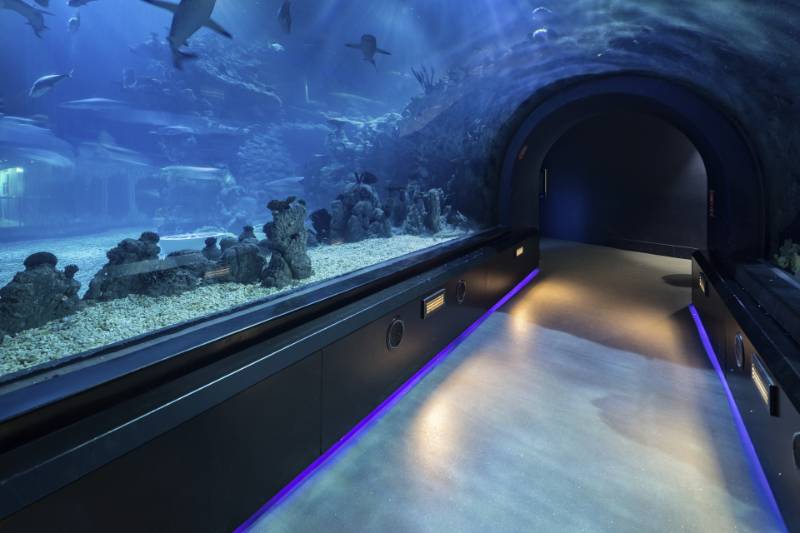

The Deep Aquarium, Hull

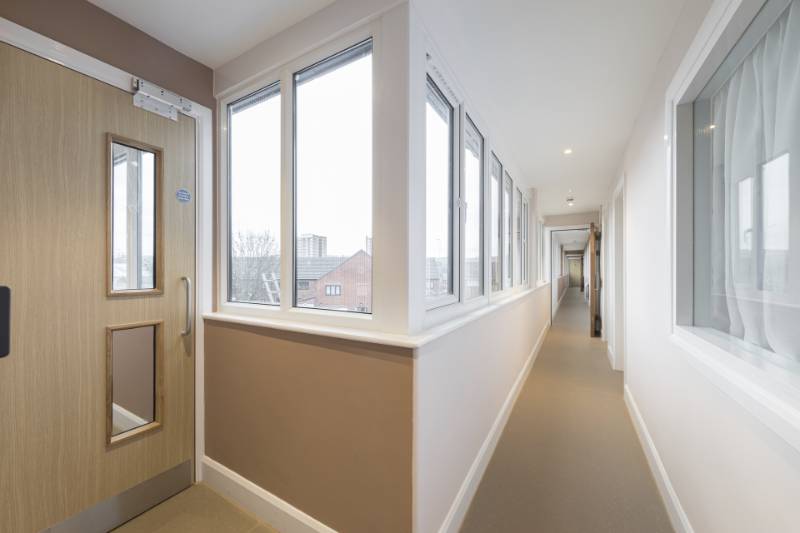

Precious Homes, Dudley
