Altro Walkway™ 20 - 2 mm homogenous safety floor
Verified by manufacturer 6 months ago
EPD
Certificate type
Hard-wearing, 2 mm homogenous safety flooring.
Application
Suitable use for general purpose.
Description
Hard-wearing, 2 mm homogenous safety flooring, available in a range of 30 colours that can be combined with the Altro XpressLay range, when traditionally adhered and adhesive-free safety flooring in adjacent areas is required. Consult manufacturer for details. Easy to cove and weld, it achieves PTV ≥36 on the pendulum test giving sustained slip resistance throughout the lifetime of the product.
Features and benefits:
- Abrasion resistance.
- PUR cleanability.
- High chemical and stain resistance.
- CE marked.
- Wear layer: 2 mm.
- O-Phthalate free: plasticizers based on natural resources.
- VOC emissions: Indoor Air Comfort: Gold / LEED v4 / BREEAM Compliant.
- Environmental Product Declaration (EPD) BREG EN EPD No.: 000258 (EN 15804:2012+A1:2013 & BRE Global Scheme Document SD207).
- Ten-year guarantee and 15-year life expectancy with lifetime sustained slip resistance.
General information
Color | White Blue Brown Green Grey |
Finish | Matt Guidance for specification option: Non-reflective. |
Material | Polyvinyl chloride (PVC) |
Shape | Rectangle |
Length | 20000 mm |
Width | 2000 mm |
Height | 2 mm |
Warranty description | Ten year Guidance for specification option: Ten-year product guarantee. |
Uniclass | |
CAWS | M50/20 Sheeting M50/150 Sheeting |
Specification data - Particle-based enhanced slip-resistant polyvinyl chloride (PVC) sheets
Standard | To EN 13845. |
Backing | Glass fibre reinforced polyester cellulose backing. |
Use class | To EN ISO 10874, class 34, 43. |
Slip potential | |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | To BS 7976, PTV ≥36; to EN 13845, ESf; to EN 13893, ≥0.30/DS; to DIN 51130, R10.Guidance for specification option: To BS 7976: Lifetime Sustained Slip Resistance Guarantee - 15 years. |
Surface roughness (Rz) (minimum) | To BS 1134: ≥20 μm. |
Recycled content | 10%. |
Width | 2000 mm. |
Thickness | 2.0 mm. |
Colour and pattern | Biscuit VM20907.Black VM20892.Blizzard VMI2055.Blue VM20412.Bone VM20215.Cherry VM20920.Cloud VM2014.Coal VMI2058.Dolphin VM2010.Fog VM20153.Lupin VMI2059.Midnight VM20421.Minster VM2018P.Nightfall VMI2056.Pavement VMI2007P.River VMI2057.Rock VMI2004P.Runway VM2006P.Sand VMI2051.Savannah VMI2050.Skyline VM20332.Streetlight VMI2005P.Swan VMI2012P.Tango VM2031.Tarragon VMI2052.Temple VM2009P.Tundra VM20910.Waterfall VM20912.Whale VMI2054.Winter VMI2053. |
Accessories | None. Skirtings. Stair nosings/ trims. Weld rod. Altromastic 100. |
Sound insulation | 5 dB. |
Fire classification | Bfl-s1. |
Execution | Manufacturer guidanceAltro safety flooring should be laid in accordance with the Code of Practice BS 8203: 2017. The material should be stored for approximately 24 hours at a room temperature, if not below 14°C. When laying, the area should be at a steady temperature of between 14°C and 27°C for at least 48 hours prior to, during and for at least 24 hours after completion. Refer to Altro Installation Guidance for further information and details or consult with Altro Technical Services. |
Sustainability data
Material | Polyvinyl chloride (PVC) |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 6.85 kg CO₂ eq/m² |
Recyclability | 100% recyclable pre installation - ALTRO RECOFLOOR™ https://www.recofloor.org/ Guidance for specification option: Clean, adhesive-free off-cuts to be removed from site and taken to an Altro Recofloor collection points for recycling. Contact Altro for further details of this scheme and the Recowall recycling scheme. Altro Limited, Tel: +44(0)1462 707600, fax: +44 (0)1462 707515, email: enquiries@altro.com, website www.altro.com |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 10 % |
Third party certifications
Third party certifications
EPD
Altro Walkway 20 EPD
Literature

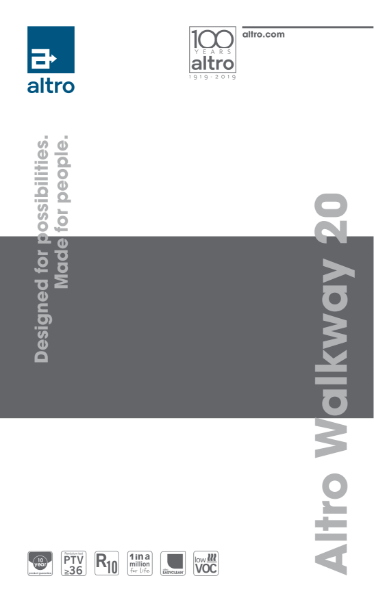

Altro Walkway 20 Technical Data Sheet
