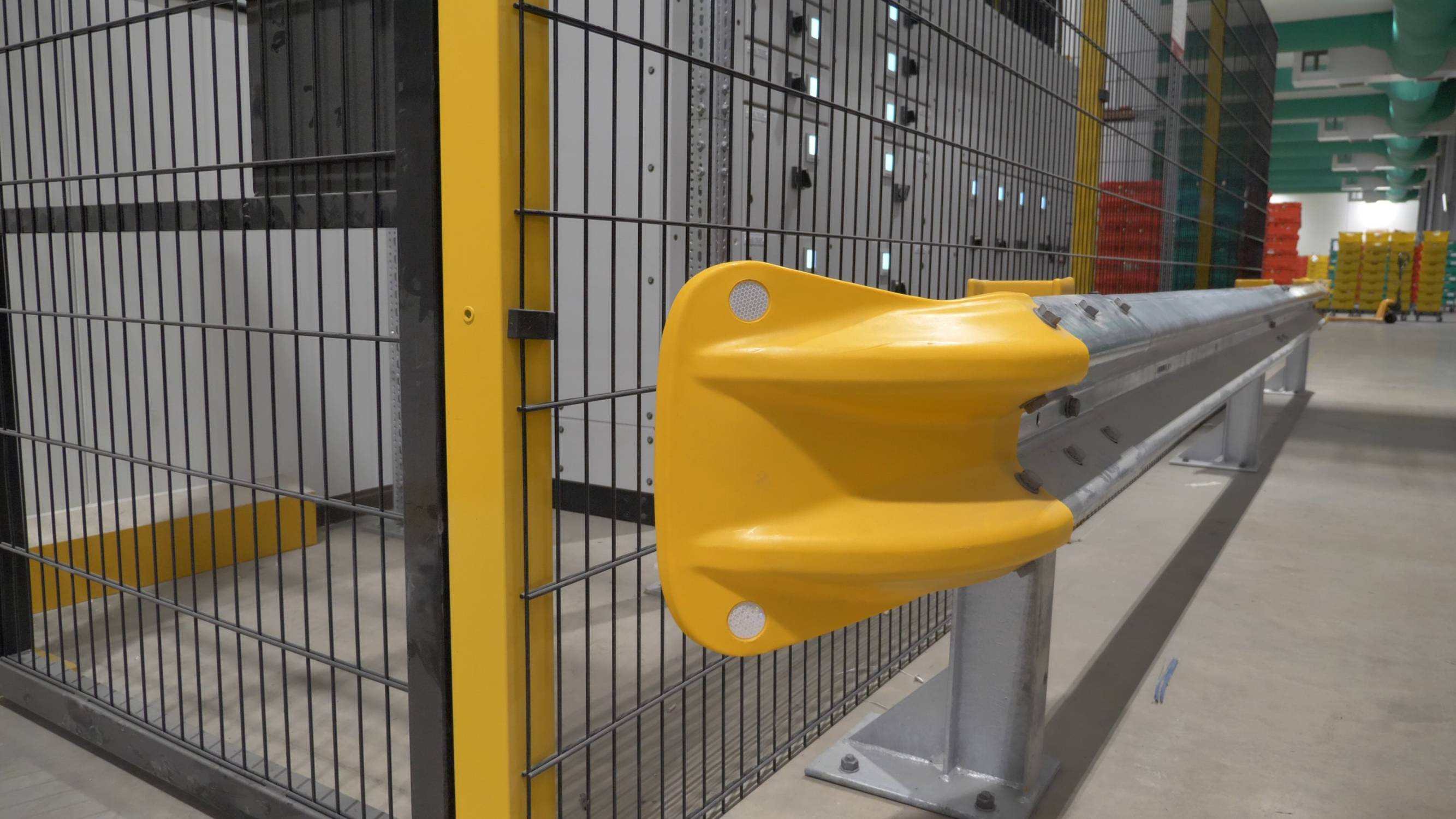

Armco Fishtail Safety End - Armco Safety Barrier Accessories
Verified by manufacturer 3 months ago
Armco Fishtail Safety End - Armco Safety Barrier Accessory. Enhance safety with our yellow or black fishtail safety end for Armco barriers. High visibility and flexible design protect against impacts.
Application
Armco Fishtail Safety End - Armco Safety Barrier Accessories: Suitable to warn and caution HGV drivers and MHE operators in industrial applications.
- Enhance safety in loading docks for HGV and forklift operators, the Armco Fishtail Safety End attaches to the end of the Armco Safety Barrier to deflect impacts.
- Protect pedestrian walkways and access points in industrial areas.
- Safeguard warehouse corners from vehicle impacts.
- Improve visibility of Armco barrier ends at construction sites.
Description
Armco Fishtail Safety End - Armco Safety Barrier Accessories: Fishtail safety end enhances Armco barrier visibility for HGV and forklift operators.
Features and benefits:
- Flexibility prevents vehicle damage from impacts.
- Diamond-grade reflectors for night-time visibility.
- Retrofit for steel terminals.
- Four-point fixing with M16 x 35mm bolt sets.
- Fits 310 x 85 mm Armco rails.
- Available in yellow or black with yellow reflectors.
- Moulded in the UK from 100% recyclable polyethylene (MDPE 4).
General information
Color | Yellow Black |
Finish | Reflective |
Material | Polyethylene |
Shape | Other |
Length | 450 mm |
Width | 205 mm |
Height | 320 mm |
Uniclass | |
CAWS | Q41/135 Proprietary protective barriers Q41/135 Proprietary protective barriers |
Specification data - Carbon steel fencing and barrier rails
Duty | Heavy. |
Dimensions | |
Section size | Consult manufacturer. |
Length | 450 mm. |
Finishes | |
Worked finish | Yellow.Black. |
Applied finish | Yellow.Black. |
Material: | Polyethylene. |
Fixing: | Four point fixing M16 x 35 mm bolt sets. |
Product Reference | Armco Fishtail Safety End |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyethylene |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Armco Fishtail Safety End - Brandsafe Spec Sheet
