Armco Safety End - Traffic And Pedestrian Safety Management

Verified by manufacturer 3 months ago

Brandsafe

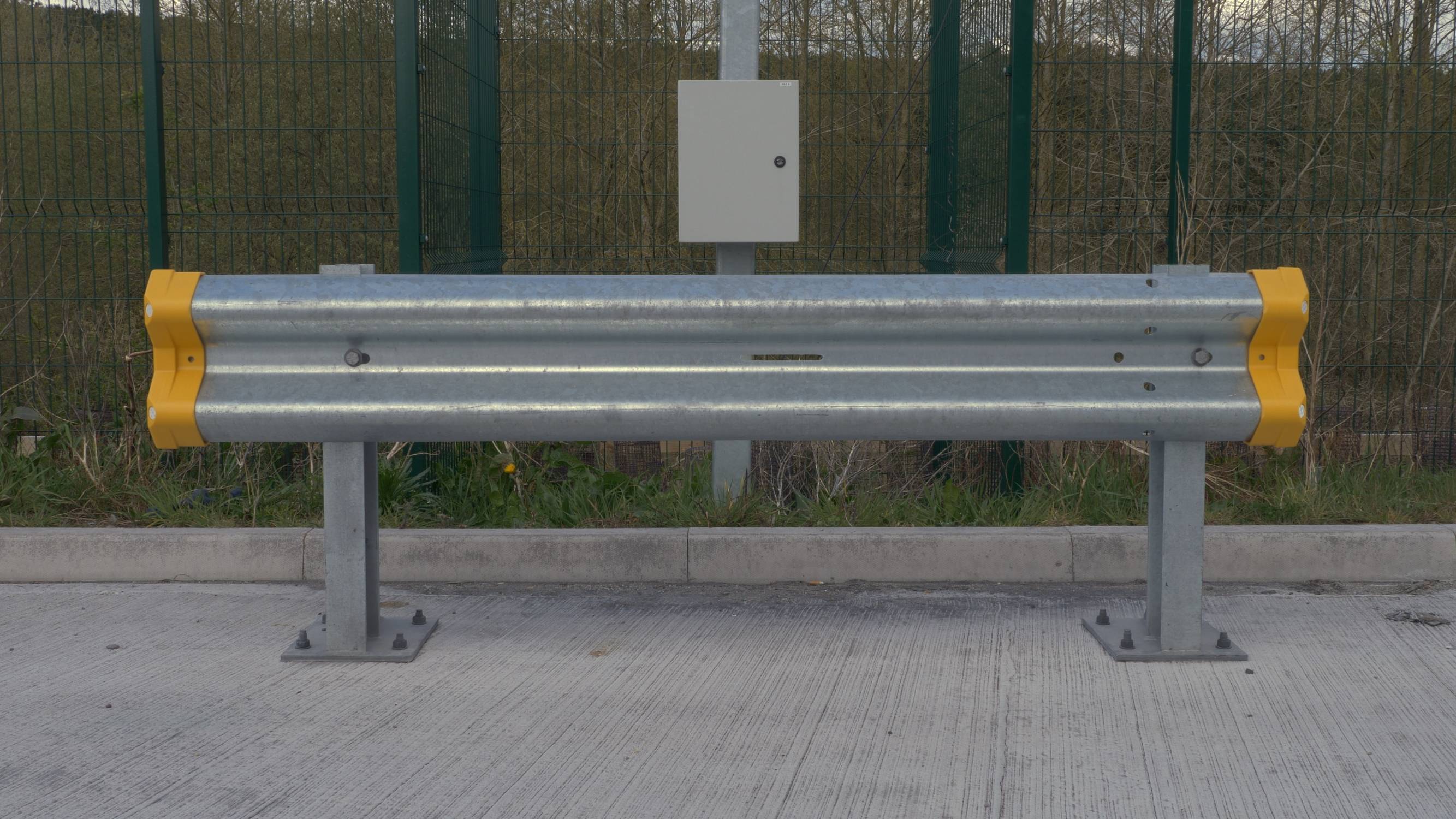

Enhance safety with yellow polymer end/corner mouldings featuring silver/black reflectors. Easy installation for Armco barriers.

Jump to:
BOS
+44 (0)1525 850222 Website

Application

For enclosing cut Armco with nasty burrs. Suits all manufacturers of 310 x 85 mm Armco rails.

  1. Industrial Facilities: Enhance safety by using polymer end/corner mouldings to protect workers and equipment from sharp Armco ends in manufacturing plants and warehouses.
  2. Commercial Parking Lots: Install low-cost polymer terminations on Armco barriers to prevent potential hazards and injuries for vehicles and pedestrians in parking areas.
  3. Construction Sites: Ensure safety on construction sites by using polymer mouldings to cover sharp Armco cut ends, reducing the risk of accidents for workers and site visitors.
  4. Transportation Hubs: Implement diamond-grade reflector-equipped polymer terminations on Armco barriers at transportation terminals to improve visibility during night-time operations, ensuring safer traffic flow.

Description

High-visibility, low-cost polymer end/corner mouldings provide secure termination for Armco Ends.


Features and benefits:

  • Over 75% fewer fixings and installation time compared to other terminals.
  • Diamond-grade reflectors for HGV night visibility.
  • Retrofit all steel terminals for instant site safety improvement.
  • Single-point fixing M10 x 30 mm bolt set provided.
  • Terminate cut Armco ends and corners with one 11 mm HSS drilled hole.
  • Available in yellow or black.
  • Moulded in the UK from 100% recyclable polyethylene.
  • Low-cost polymer end/corner protection for Armco cut ends:
  • Polymer moulded ends with single-point fixing for easy and swift installation.
  • Yellow or black options with 2 diamond-grade reflectors enhance visibility.
  • Create angles with abutting Armco for internal or external corners.
  • Cover razor-sharp cut Armco ends to eliminate safety concerns.

General information

Color

Black

Yellow

Finish

Reflective

Material

Polyethylene

Shape

Other

Length

92 mm

Width

98 mm

Height

338 mm

Uniclass

Pr_20_85_07_11 Carbon steel fencing and barrier railsPrimary

CAWS

Q41/135 Proprietary protective barriers

Q41/135 Proprietary protective barriers

Specification data - Carbon steel fencing and barrier rails

Duty

Medium.

Dimensions

-

Section size

Consult manufacturer.

Length

92 mm.

Finishes

-

Worked finish

Yellow.

Black.

Applied finish

Black.

Yellow.

Material:

Polyethylene.

Fixing:

M10 x 30 mm.

Product Reference

Armco Safety End

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Polyethylene

Recyclability

100%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Armco Safety End - Brandsafe Spec Sheet

Armco Safety End - Brandsafe Spec Sheet
