Boxed Glazed Roof Access Hatch
Verified by manufacturer 10 months ago

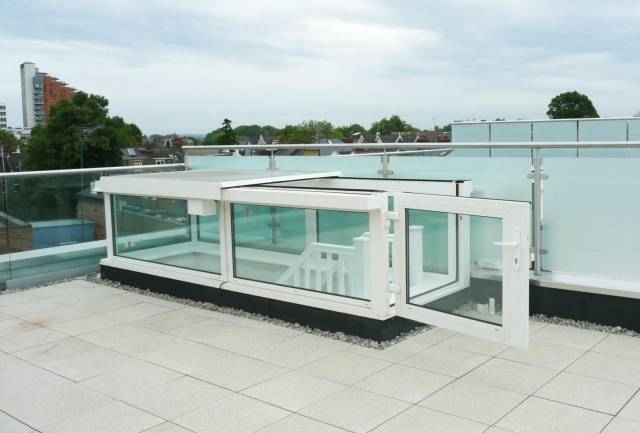

Glass roof hatch with vertical end door for easy access to roof terraces, pavilions and more.
Application
Roofs.
Description
Thermally broken, multi-pane glazed roof access hatch with glazed, manually operated hinged door and horizontal lid with one opening section.
General information
Finish | Aluminium Guidance for specification option: Mill finish. Polyester powder coated |
Material | Aluminium |
Size | Guidance for specification option: Insert requirements. |
Uniclass | |
CAWS | L20/630 Hatches |
Specification data - Roof hatches
Classification data | |
Glazing | 35.5 mm-thick, sealed, double-glazed unit, which includes 6 mm-thick, toughened, K-polished all-round outer pane, 20 mm-thick, argon-filled warm edge silver spacer bar and 9.5 mm-thick toughened and laminated inner pane. 1.5 W/m²K U-value. |
Size | Guidance for specification option: Insert requirements. |
Upstand | Four-sided glazed upstand. Solid aluminium upstand. |
Insulation | 50 mm-thick standard insulation. Guidance for specification option: 0.43 W/m²K. 50 mm-thick non-combustible mineral wool insulation. Guidance for specification option: 0.63 W/m²K. |
Operation | 24 V electric motors. Gas springs. Guidance for specification option: Standard. |
Locking | None. L01 Cablock. Guidance for specification option: Standard. L02 Cablock with hasp and staple. L04 Cablock with external padlocking handle. L06 ABS Euro cylinder with external key locking and thumb-turn options. L07 European deadlock with internal and external key operation. |
