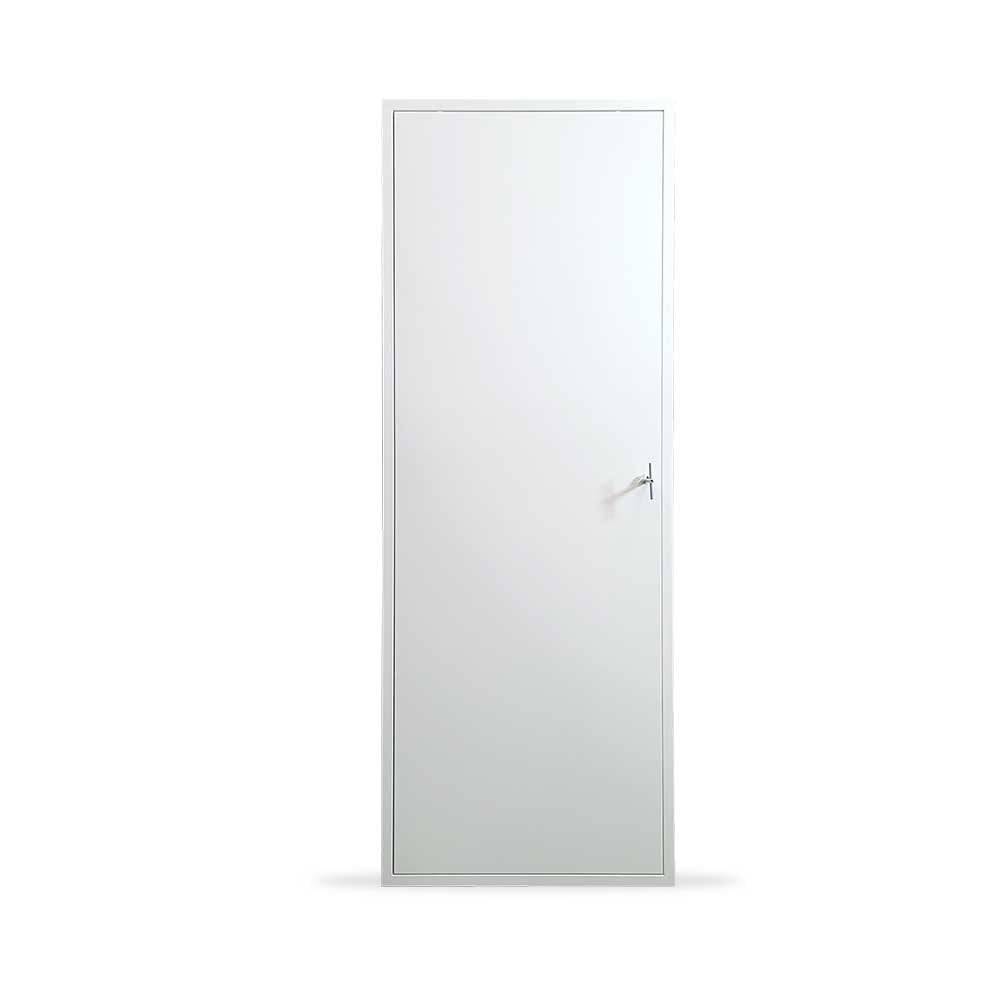

Budget Firepan - Fire Rated Access Panel
Verified by manufacturer 4 months ago
Warringtonfire
Certificate type

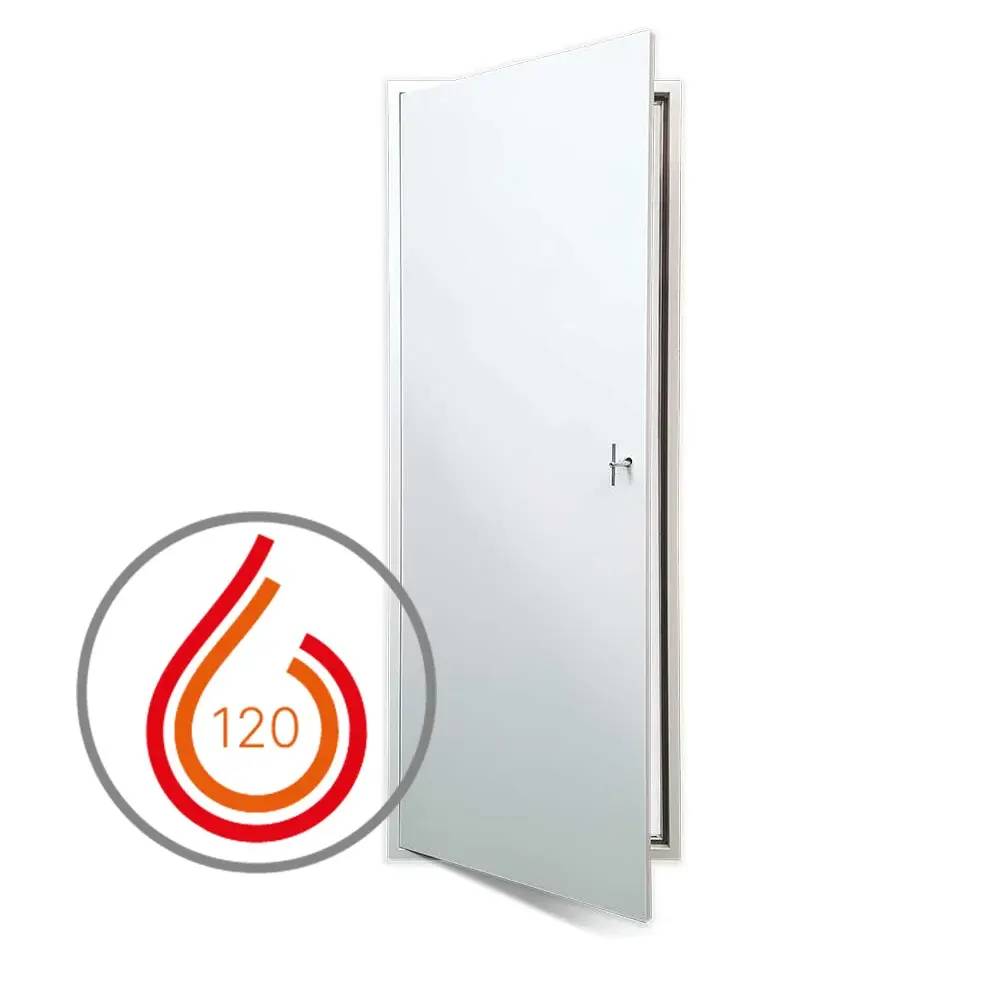

Access panel range, fire tested to 120 minutes for wall use, smoke tested. Made to order in sizes up to 2000 x 800 mm (single door) or 2000 x 1300 mm (double door).
Application
Suitable for wall use.
Description
Fire rated access panel, simple, effective and covering a wide range size applications. Tested for wall use.
When selecting the size of the access panel, please add 5 mm to the size when creating a structural opening (e.g. an access panel size of 1200 x 600 mm would fit a structural opening of 1205 x 605 mm).
Features and benefits:
- Bespoke sizes up to 2000 x 1300 mm double door.
- Bespoke sizes up to 2000 x 800 mm single door.
- Three point locking on lead leaf.
- 120 minute fire tested to BS 476: Part 22 in one direction (opening into fire).
- Smoke tested to BS EN 1634: 2004.
- Powder coated 0.9 mm zintec steel.
- 50 mm deep.
- Picture frame (beaded frame available).
General information
Color | White |
Finish | Powder-coated |
Material | Zintec steel |
Shape | Square Rectangle |
Length | 2000 mm Guidance for specification option: Maximum length. Bespoke Guidance for specification option: Made to order. |
Width | 800 mm Guidance for specification option: Maximum width single door. 1300 mm Guidance for specification option: Maximum width double door. Bespoke Guidance for specification option: Made to order. |
Height | 50 mm |
Warranty description | Two year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets K10/430 Access panels M30/275 Access panels |
Specification data - Access panels
Fire performance | |
Fire resistance | 120 minutes to BS 476-22.Guidance for specification option: Face side. |
Position | Wall-mounted. |
Size | Guidance for specification option: Made to measure. Consult manufacturer and insert requirements.
Manufacturer guidanceWhen selecting the access panel, please add 5 mm to the size when creating the structural opening. E.g. An access panel size of 1200 x 600 mm would fit a structural opening of 1205 x 605 mm. |
Frame | Exposed picture frame type.Bead for taping and jointing.Guidance for specification option: 25 mm. |
Panel | |
Material | Steel.Guidance for specification option: Zintec steel. |
Integral finish | Powder-coated. |
Latch or lock type | Budget lock.Tamper proof lock.Europrofile lock. |
Operation | Concealed steel hinges, outward opening. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Colour | Pure white RAL 9010. |
Depth | 50 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Literature
Access Panel Fire Test Report - Fire rated Access Panels
Budget Firepan Tech
Budget Firepan PF Brochure
