Application

For indoor and outdoor applications.

Description

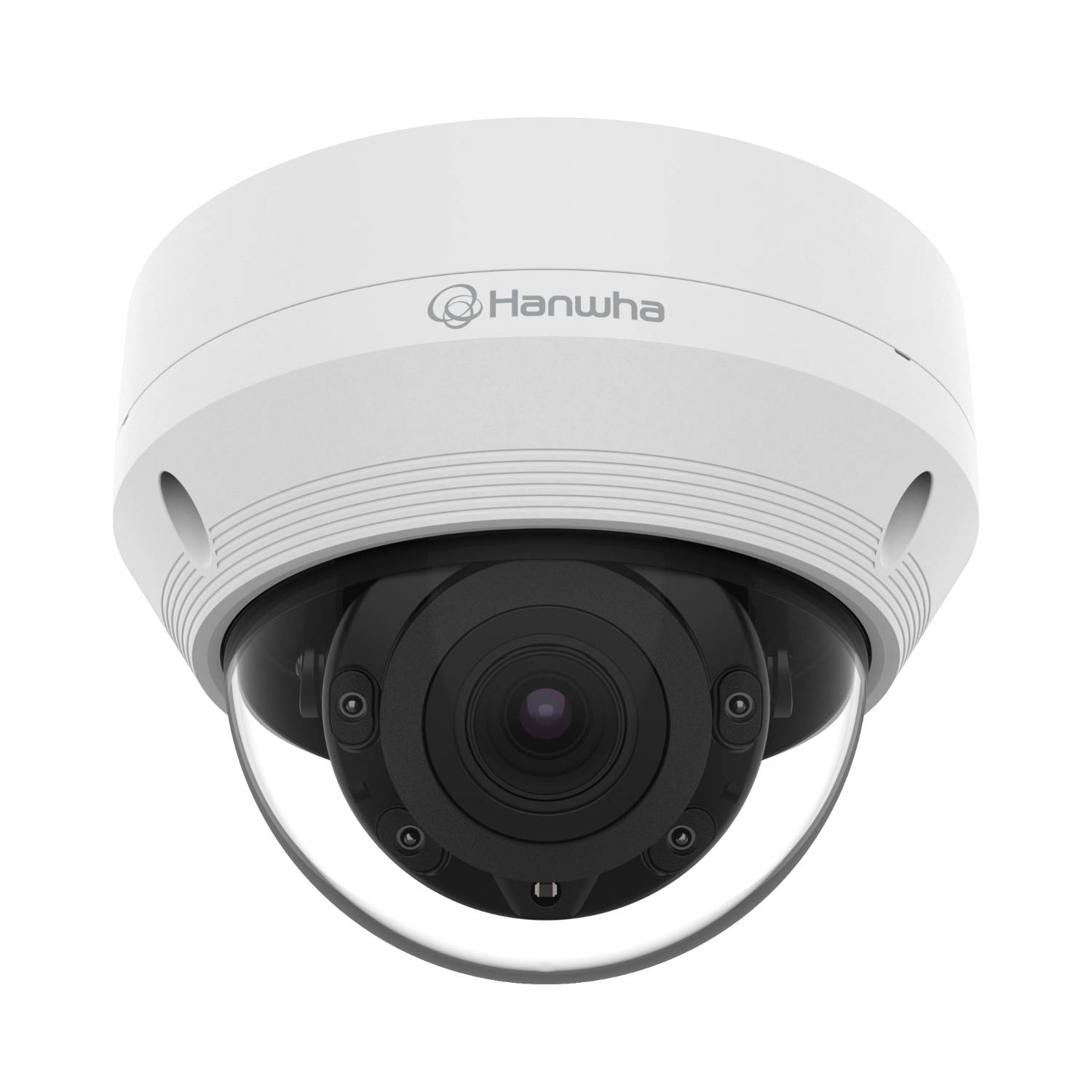

5 MP H.265 IR dome camera.


Features and benefits:

  • Maximum 5 megapixel (2592 x 1944) resolution.
  • 3.2–10 mm (3.1x) motorized varifocal lens.
  • 0.15 lux (colour), 0 lux (B/W, IR LED on).
  • H.265, H.264, MJPEG codec support, multiple streaming.
  • Day and night (ICR), WDR (120 dB).
  • Tampering, motion detection, defocus detection.
  • Micro SD/ SDHC/ SDXC memory slot (128 GB maximum).
  • Hallway view, WiseStream II support.
  • IR viewable length 30 m (98.42 ft).
  • IP66, IK10, PoE.

General information

Color

White

Material

Aluminium

Shape

Circle

Length

137 mm

Width

137 mm

Height

106.1 mm

Uniclass

Pr_60_75_86_31 Internet protocol (IP) fixed dome camerasPrimary

CAWS

W90/170 Surveillance CCTV systems

W90/170 Closed-circuit television (CCTV) system

Specification data - Internet protocol (IP) fixed dome cameras

Image sensor

1/2.8-inch CMOS.

Spectrum

Colour/ monochrome.

Resolution (minimum)

2592 x 1944.

2560 x 1440.

Guidance for specification option:

4 MP mode only.

1920 x 1080.

1280 x 960.

1280 x 720.

800 x 600.

800 x 448.

720 x 576.

720 x 480.

640 x 480.

640 x 360.

320 x 240.

Minimum illumination

Colour 0.15 lux at f1.6 (1/30 s, 30 IRE), monochrome 0.015 lux at f1.6, (1/30 s, 30 IRE), 0 lux (IR LED on).

Integrated illumination

Infrared.

Camera functions

-

Focus

Simple focus.

Shutter

Minimum/ Maximum/ Anti flicker (1/5–1/12000 s).

Automatic gain control

Low/ Middle/ High.

White balance control

ATW/ AWC/ Manual/ Indoor/ Outdoor.

Backlight compensation

BLC, WDR, SSDR.

Wide dynamic range

120 dB.

Day/ night mode switching

Automatic (ICR).

Privacy masks

Six, rectangular zones.

Display type

Camera title displayed up to 85 characters.

Lens

-

Format

Varifocal.

Iris

Automatic, d.c. drive.

Guidance for specification option:

IR corrected.

Focal length

3.2–10 mm.

Guidance for specification option:

3.1x motorized varifocal.

Aperture range

F1.6–F2.9.

Angle of view

H: 101–31°, V: 73–23°, D: 134–38°.

Video motion detection

Four, polygonal zones.

Power supply

PoE.

Network connectivity

10/100BASE-T via RJ-45.

Network protocols

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP.

Video compression formats

H.264/H.265, MJPEG.

Guidance for specification option:

H.264/H.265: CBR or VBR.

MJPEG: VBR.

Video streaming

Unicast (6 users)/ Multicast.
Multiple streaming (Up to 3 profiles).

Integral memory storage (minimum)

512 MB RAM, 256 MB flash.

Alarm inputs

One.

Alarm outputs

One.

Camera housing

-

Ingress protection (minimum)

To BS EN 60529, IP66.

Impact protection (minimum)

To BS EN 62262, IK10.

Housing colour

White.

Dome colour

Transparent.

Accessories

Not required.

SBP-300LMW.

SBP-300WMW1.

SBP-300KMW.

SBP-300BW.

SBP-300PMW.

SBV-136BW.

SPB-VAW72.

SHD-1408FW.

SBP-301HMW2.

SBP-300WMW.

SBP-137WMW1.

SBP-300NBW.

SBP-300CMW.
